1348A

CC Link, 3 C #20 Str BC, FPE Ins, OS+TC Brd, PVC Jkt, CM

...

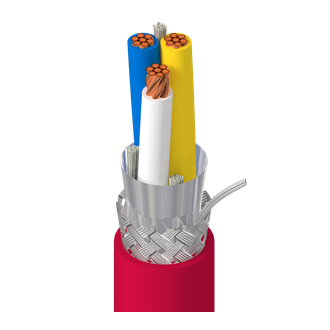

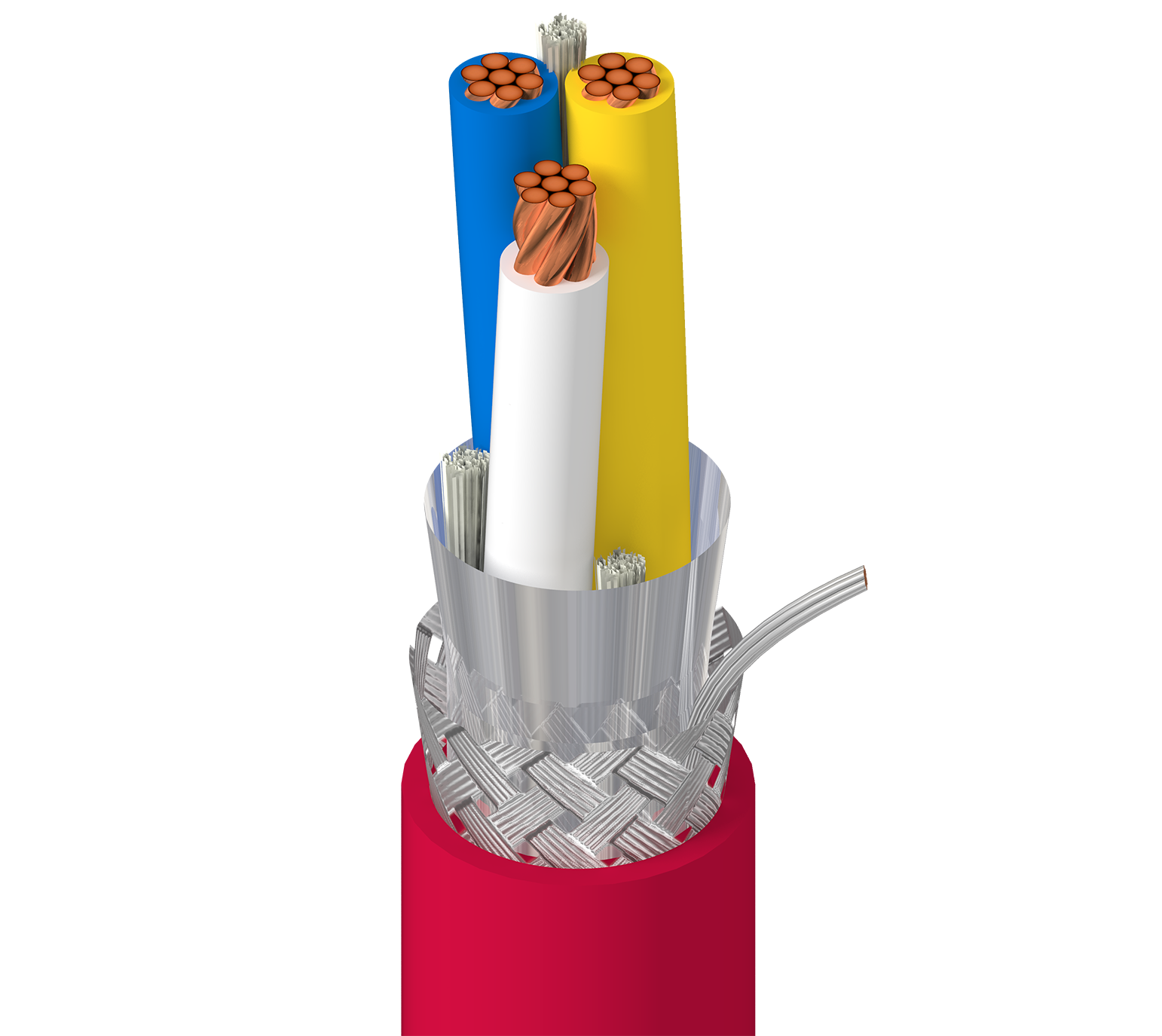

CC Link, 3 Conductor 20AWG (7x28) Bare Copper, FPE Insulation, Overall Beldfoil®+Tinned Copper Braid(78%) Shield, PVC Outer Jacket, CM
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 20 AWG 7x28 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Conductor(s) PE - Polyethylene (Foam) 0.028 in (0.71 mm) 0.094 in (2.4 mm) Blue, Yellow, White HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (19x34) TC
Braid Tinned Copper (TC) 78%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.303 in (7.70 mm)

Overall Cable Diameter (Nominal)

0.303 in (7.70 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Characteristic Impedence
Conductor(s) 11.5 Ohm/1000ft 18.3 pF/ft (60.0 pF/m) 110 Ohm

Nom. Outer Shield DCR

3.2 Ohm/1000ft (10 Ohm/km)

High Frequency
Element Frequency [MHz]
Conductor(s) 1
5
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -30°C to +75°C
Bend Radius
Stationary Min. Installation Min.
4 in (100 mm) 4 in (100 mm)

Max. Pull Tension

86 lbs (39 kg)

Bulk Cable Weight

49 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

UL 1685 UL Loading

NEC / UL Compliance

Article 800, CM, CL2

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Mitsubishi #BA1SJ61-S, Cable contains fillers

History

Update and Revision

Revision Number: 0.512 Revision Date: 04-30-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
1348A 0021000 Red Reel 1,000 ft 612825112365 C
1348A 0025000 Red Reel 5,000 ft 612825112372 C Z
