DEDN162F

Indoor/Outdoor Digital Electricity™, 2 Pr #16 Str TC, O/A Foil, PVC Jkt, CL4, CMG, Wet Locations

...

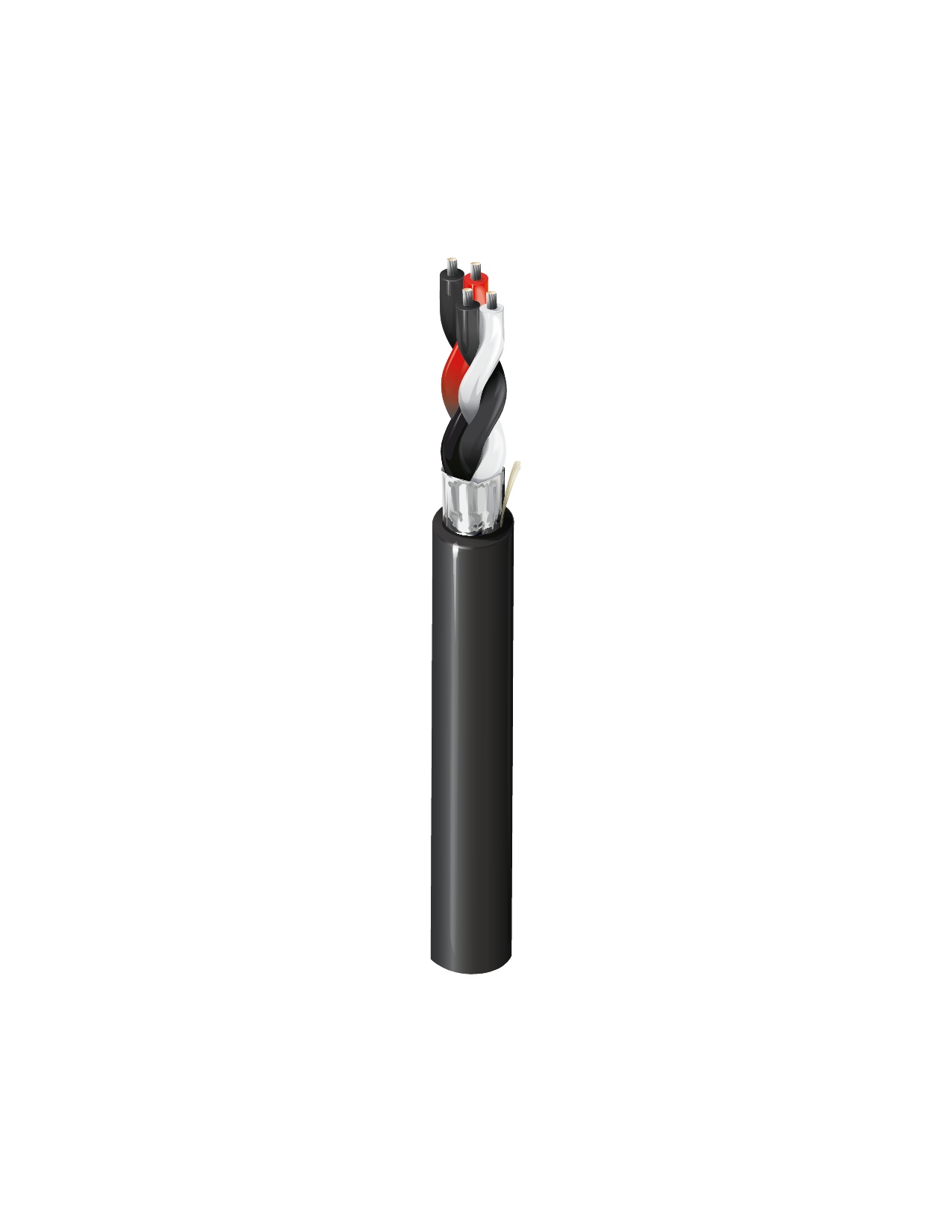

Indoor/Outdoor Digital Electricity™ Copper Cable, 2 Twisted Pair 16 AWG (7 x 24) Stranded Tinned Copper, PVC Insulation, Overall foil shield, Black PVC Jacket, Ripcord, CL4, CMG, Wet Locations, 2000 Ft Reel
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Digital Electricity™, Fault Managed Power Systems (FMPS), remote powering, wet locations, in-conduit

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
16 7x24 TC - Tinned Copper 2

Total Number of Pairs

2

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.017 in
Color Chart
Number Color
1 Black & Red
2 Black & White
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 18
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.413 in 0.040 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
4.55 Ohm/1000ft 5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
32.5 pF/ft 58.5 pF/ft
Current
Max. Recommended Current [A]
8.75 Amps per Conductor at 25ºC (35°C Temperature Rise)
Voltage
UL Voltage Rating
450 V RMS
Temperature Range

UL Temp Rating

105°C

Operating Temperature Range

-30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight

77 lbs/1000ft

Max. Pull Tension

143 lbs

Min. Bend Radius/Minor Axis

4.125 in
Standards

NEC Articles

Article 725, Article 800

NEC/(UL) Compliance

CL4, CL3, CMG

CEC/C(UL) Compliance

CMG

UL AWM Style Compliance

AWM 2464
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

EU REACH SVHC Compliance (yyyy-mm-dd)

2020-01-08

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL 1685 FT4 Loading

IEEE Flammability

1202

History

Update and Revision

Revision Number: 0.56 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Length
DEDN162F Black 2,000 ft
