Product Number: 8737

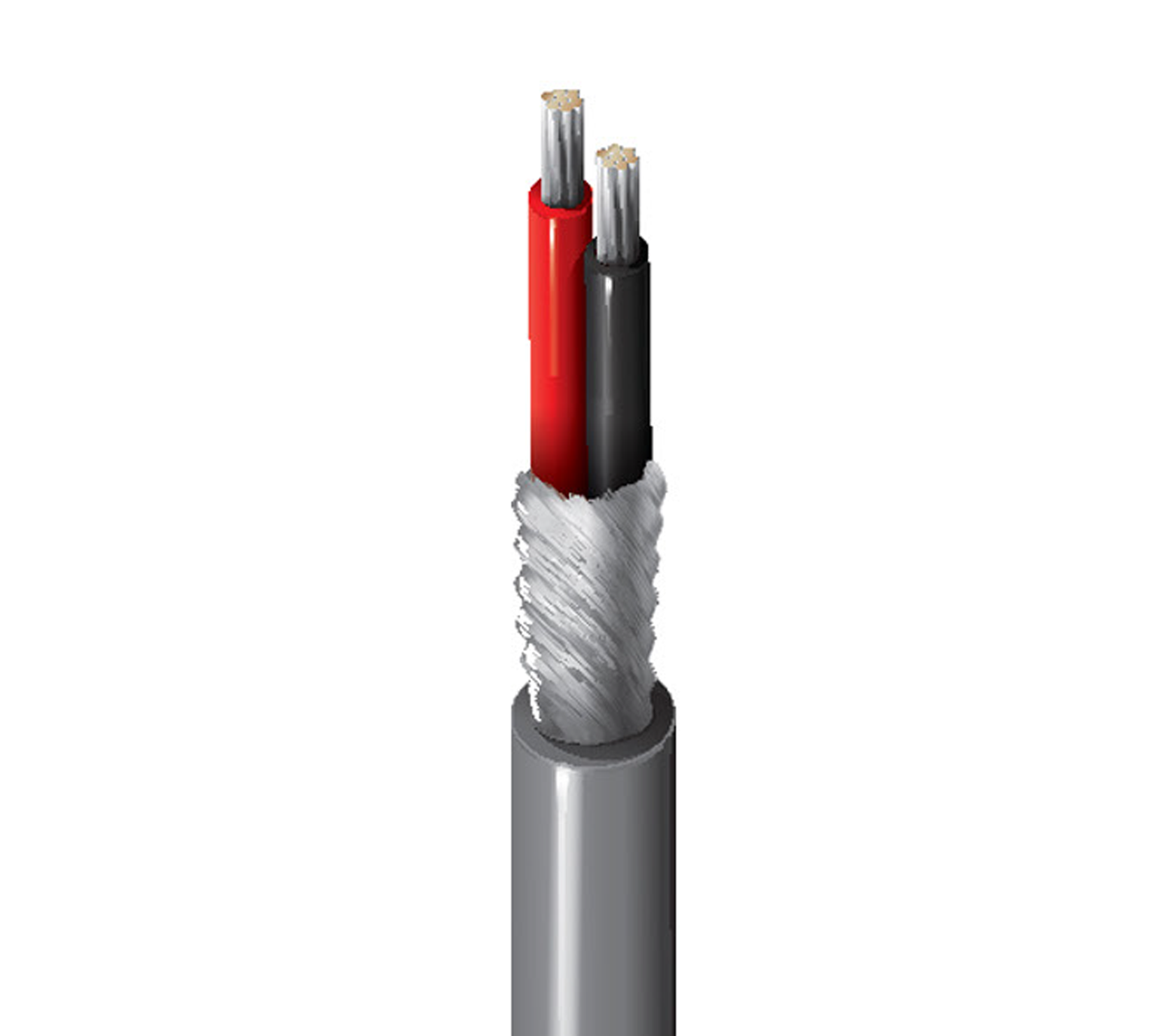

Audio Cable, #22-1pr, TC, O/A Braid, CM
22 AWG stranded (7x30) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|
Construction Details
Conductor
| Size | Stranding | Material |
|---|---|---|
| 22 | 7x30 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.06 in (1.5 mm) | Black & Red |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Spiral Serve / Screen | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.18 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|
| 16 Ohm/1000ft (52 Ohm/km) | 40 pF/ft (130 pF/m) | 70 pF/ft (230 pF/m) | 49 Ohm | 66% | 3 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C To +80°C |
|
Max. Pull Tension |
20 lbs (9.1 kg) |
|---|---|
|
Bulk Cable Weight |
18 lbs/1000ft (27 kg/km) |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL1685 FT4 Loading, FT4, 1202 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
CMG |
|
AWM Compliance |
AWM 2095 (300 V 80°C) |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.421 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.421 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8737 060500 | Chrome | Reel | 500 ft | 612825214847 | |
| 8737 060U500 | Chrome | UnReel | 500 ft | 612825215103 | |
| 8737 0601000 | Chrome | Reel | 1,000 ft | 612825214830 | C |
| 8737 060U1000 | Chrome | UnReel | 1,000 ft | 612825214816 |
