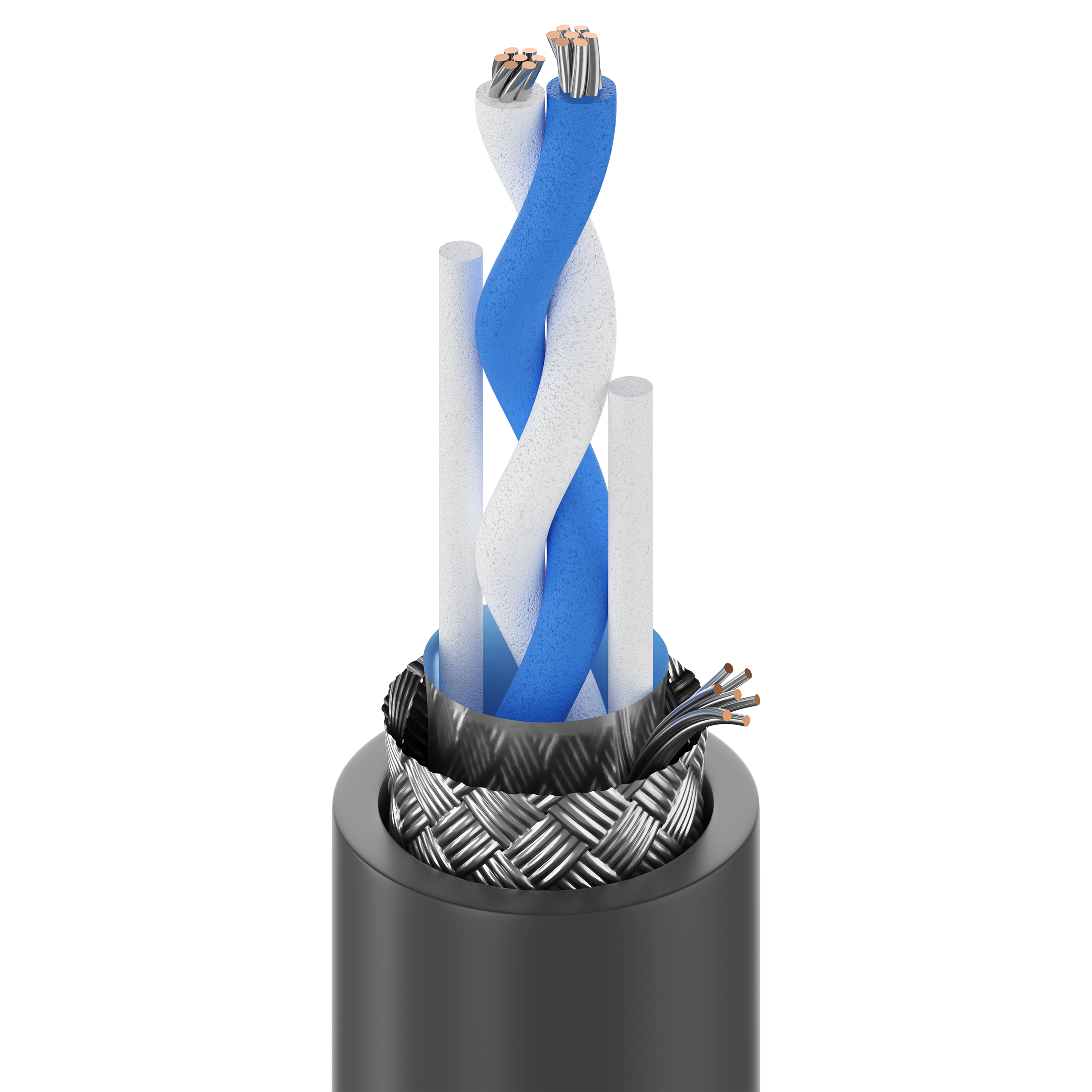

Product Number: 1696A
Digital Audio Cable, 1 Pr #22, Str TC, Foil + Braid, PVC Jkt
Digital Audio Cable, 1 Pair 22 AWG (7 x 30) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, 90% Tinned Copper Braid Shield, PVC jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.027 in (0.69 mm) | 0.082 in (2.1 mm) | Blue & White | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.025 in (0.64 mm) | 0.235 in (5.97 mm) |
|
Overall Cable Diameter (Nominal) |
0.235 in (5.97 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 18.2 Ohm/1000ft | 13 pF/ft (43 pF/m) | 26 pF/ft (85 pF/m) | 110 Ohm | 76% | 6 Amps per conductor @ 30°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C | -30°C to +60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.4 in (61 mm) | 2.4 in (61 mm) |
|
Max. Pull Tension |
23.7 lbs (10.8 kg) |
|---|---|
|
Bulk Cable Weight |
31 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Flammability / Reaction to Fire |
IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
AES/EBU |
Product Notes
|
Notes |
Cabling has two rod fillers for improved electrical performance. |
|---|
History
|
Update and Revision |
Revision Number: 0.478 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.478 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1696A B59250 | Black, Matte | Reel | 250 ft | 612825121329 | |
| 1696A B59500 | Black, Matte | Reel | 500 ft | 612825121336 | |
| 1696A B591000 | Black, Matte | Reel | 1,000 ft | 612825121312 | C |
| 1696A B59U1000 | Black, Matte | Reel | 1,000 ft | 612825121305 |
