Product Number: 70051
1 PAIR AES/EBU, 26AWG, ISTP, LSZH
DIGITAL AUDIO 1 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital multi-modulation cable; Used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Cross Section | Construction n x D |
|---|---|---|---|---|
| 26 | 7x34 | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) | 0.14 mm² | 7x0.15 mm |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene (Foam) | 1.10 mm | 0.03 mm |
Color Chart
| Number | Color |
|---|---|
| Pair 1 | White & Blue |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 26 | 7x0.16 mm |
Outer Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 3.90 mm | 0.20 mm |

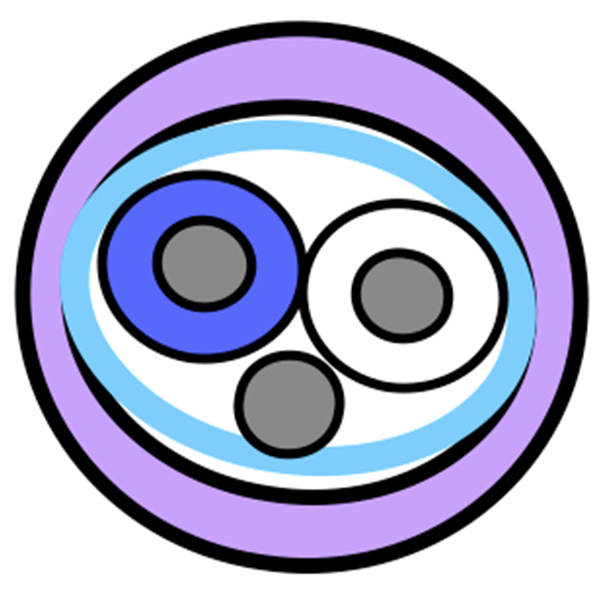

Construction and Dimensions
Cabling
| Description |
|---|
| 1 pair |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 134.0 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 40 pF/m |
Impedance
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | +/- 15 Ohm |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 80% |
Temperature Range
|
Other Temp Range |
-30 to +70 °C |
|---|
Mechanical Characteristics
|
Min. Bend Radius During Installation |
39 mm |
|---|---|
|
Min Setting Radius |
19.5 mm |
Standards
|
CPR Euroclass |
Fca |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
LOI of Jacket |
Min. 34 % |
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
History
|
Update and Revision |
Revision Number: 0.177 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.177 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 70051.02500 | Black | Reel | 500 m | 8719605161857 |
| 70051.011000 | Gray | Reel | 1,000 m | 8719605010063 |
| 70051.00100 | Purple | Reel | 100 m | 8719605010049 |
| 70051.00500 | Purple | Reel | 500 m | 8719605010056 |
