Product Number: 70059LW
8 PAIR AES/EBU, 24AWG, ISTP, LSZH-C
DIGITAL AUDIO 8 PAIR AES/EBU, 24AWG/0.22mm², ISTP, LSZH-C
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital multi-modulation cable used in professional studios for the transmission of analogue and digital audio signals.; Designed to meet the requirements of the AES/EBU specification |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Cross Section | Construction n x D | No. of Pairs |
|---|---|---|---|---|---|
| 24 | 7x32 | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) | 0.22 mm² | 7x0.20 mm | 8 |
|
Conductor Count |
16 |
|---|---|
|
Total Number of Pairs |
8 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene (Foam) | 1.45 mm | 0.03 mm |
Color Chart
| Number | Color |
|---|---|
| Pairs 1 t/m 8 | White & Blue |
Inner Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | Stranded tinned copper | 24 | 7x0.20 mm |
Inner Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 3.5 mm | 0.1 mm |
|
Table Notes |
Elements are numbered for identification |
|---|
Outer Shield
| Type | Material | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | TC - Tinned Copper | 24 | Stranded |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 14.5 mm | 1.2 mm |

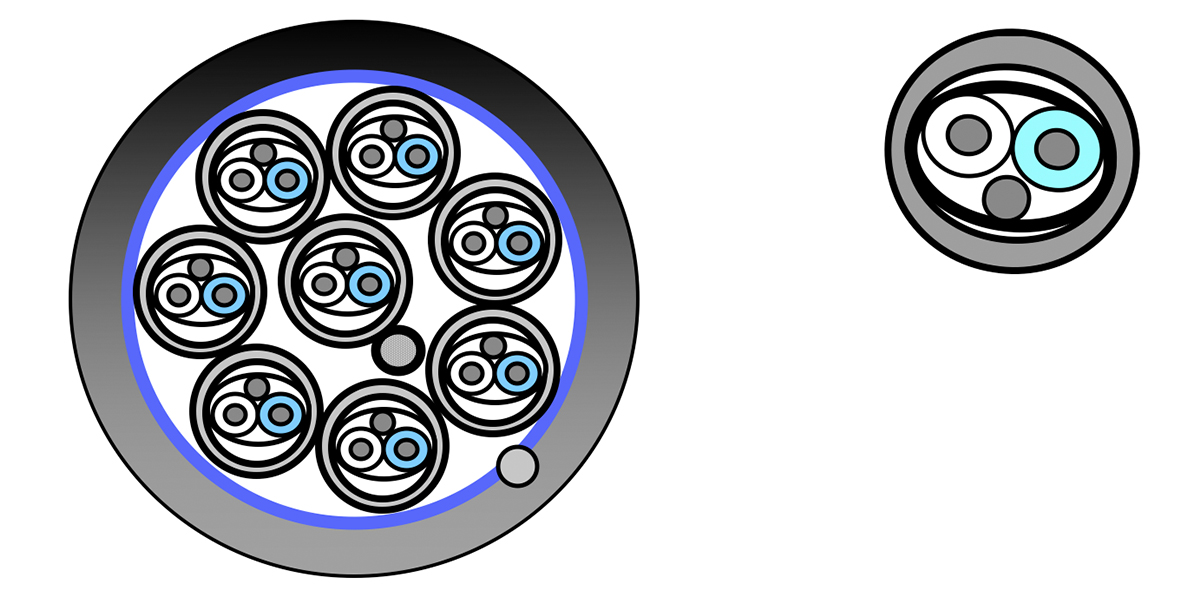

Construction and Dimensions
Cabling
| Description |
|---|
| 8 pairs + drainwire stranded tinnend copper (AWG24)(7x0.20mm) + Filler |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 86 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 40 pF/m |
Impedance
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | 15 Ohm |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 80% |
Temperature Range
|
Other Temp Range |
-30-+70 °C |
|---|
Mechanical Characteristics
|
Min. Bend Radius During Installation |
200 mm |
|---|---|
|
Min. Bend Radius During Operation |
145 mm |
Standards
|
CPR Euroclass |
Cca-s1,d1,a1 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Cca |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
History
|
Update and Revision |
Revision Number: 0.35 Revision Date: 01-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.35 Revision Date: 01-15-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length |
|---|---|---|---|
| 70059LW.00500 | Violet | Reel | 500 m |
