YE00193

1 PAIR AES/EBU, 26AWG, ISTP, LSZH, STAGE

...
1 PAIR AES/EBU, 26AWG/0.14mm², ISTP, LSZH, STAGE
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Digital multi-modulation cable used in professional studiotechnics; For analogue and digital transmission in instruments for frequency modulation

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D
26 18x38 TC - Tinned Copper 18x0.10 mm

Conductor Count

2

Total Number of Pairs

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE - Polyethylene 1.13 mm 0.03 mm
Color Chart
Number Color
Pair 1 White & Blue
Outer Shield
Type Material Min. Coverage [%]
Tape Polyester
Spiral Serve / Screen Tinned Copper (TC) 90%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant) 2.90 mm 0.10 mm

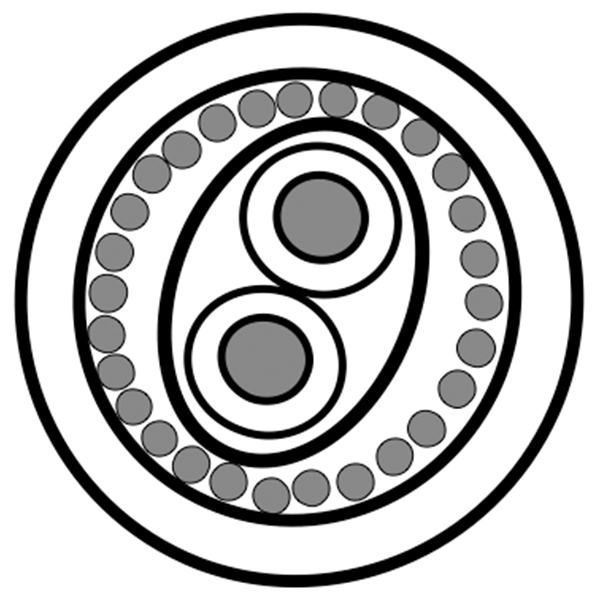

Construction and Dimensions
Cabling
Description
1 pair
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Nominal Outer Shield DCR
130 Ohm/km 40.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
56 pF/m 220 pF/m

Min Insulation Resistance

2000 MOhm*km

Inductance
Nominal Pair Inductance
0.80 µH/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 - 6 110 Ohm +/- 10 Ohm
6 - 24 110 Ohm 20 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
2 MHz 3.1 dB/100m
4 MHz 6.2 dB/100m
5 MHz 7.3 dB/100m
6 MHz 8.2 dB/100m
12 MHz 13.1 dB/100m
24 MHz 21.1 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
60%
Temperature Range

Other Temp Range

-30 to +80 °C

Mechanical Characteristics

Max. Pull Tension

50 N

Min. Bend Radius During Installation

29 mm

Min. Bend Radius During Operation

43.5 mm

Standards

CPR Euroclass

Eca

Applicable Environmental and Other Programs

Environmental Space

Indoor - Euroclass Eca
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2
History

Update and Revision

Revision Number: 0.131 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
YE00193.00500 Gray Reel 500 m 8719605111906
