Product Number: 8406

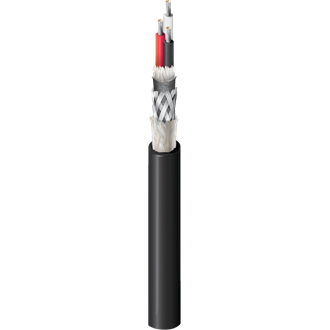

Microphone Cable, 3 Conductor 24 AWG, TC
24 AWG stranded (45x40) TC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (60% coverage), cotton serve, EPDM rubber jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Low frequency microphone or musical instruments; Balanced analog audio |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Conductors |
|---|---|---|---|---|
| 24 | 45x40 | TCA - Tinned Copper Alloy | 0.024 in | 3 |
|
Conductor Count |
3 |
|---|
Insulation
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| EPDM - Ethylene Propylene Diene Monomer | 0.065 in | 0.016 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| 3 | White |
Outer Shield
| Type | Layer | Material | Coverage [%] |
|---|---|---|---|
| Tape | 1 | Textile (Conductive) | 100% |
| Braid | 2 | Tinned Copper (TC) | 60% |
| 3 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Separator Material |
|---|---|---|---|
| EPDM - Ethylene Propylene Diene Monomer | 0.223 in | 0.025 in | Cotton Serve |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR |
|---|---|---|
| 28.7 Ohm/1000ft | 28.7 Ohm/1000ft | 11.38 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 30 pF/ft | 55 pF/ft |
Current
| Max. Recommended Current [A] |
|---|
| 2.2 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Non-UL Temp Rating |
90°C |
|---|---|
|
Operating Temperature Range |
-40°C To +90°C |
Mechanical Characteristics
|
Bulk Cable Weight |
33 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
67 lbs |
|
Min. Bend Radius/Minor Axis |
2.25 in |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2011/65/EU (RoHS 2) |
No |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
No |
|
EU CE Mark |
No |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL voltage rating |
300 V RMS |
|---|
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.392 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.392 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 8406 010100 | Black | Reel | 100 ft | 612825206248 |
| 8406 010500 | Black | Reel | 500 ft | 612825206255 |
