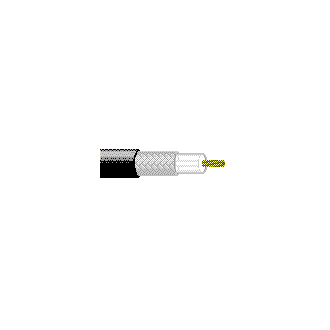

Product Number: 8218
Analog Video, #27 Str BCCS, 95% TC Braid, PVC Jacket
27 AWG stranded (7x35) .017" bare copper-covered steel conductor, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 27 | Stranded | BCCS - Bare Copper Covered Steel | 0.017 in | 1 |
|
Conductor Count |
1 |
|---|
Insulation
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene | 0.1 in |
Outer Shield
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.15 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 120 Ohm/1000ft | 120 Ohm/1000ft | 5.7 Ohm/1000ft | 5.7 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Shield |
|---|
| 20.5 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.115 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 1.2 dB/100ft |
| 10 MHz | 2.4 dB/100ft |
| 50 MHz | 4.2 dB/100ft |
| 100 MHz | 5.7 dB/100ft |
| 200 MHz | 8.3 dB/100ft |
| 400 MHz | 12.1 dB/100ft |
| 700 MHz | 16.5 dB/100ft |
| 900 MHz | 19 dB/100ft |
| 1000 MHz | 20 dB/100ft |
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.54 ns/ft | 66% |
Voltage
| Non-UL Voltage Rating | UL Voltage Rating |
|---|---|
| 1700 V RMS | 30 V RMS |
Temperature Range
|
UL Temp Rating |
60°C (UL AWM Style 1354) |
|---|---|
|
Operating Temperature Range |
-40°C To +60°C |
Mechanical Characteristics
|
Bulk Cable Weight |
14 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
32 lbs |
|
Min. Bend Radius/Minor Axis |
1.5 in |
Standards
|
UL AWM Style Compliance |
AWM 1354 (30 V 60°C) |
|---|---|
|
CPR Euroclass |
Fca |
|
RG Type |
Mini 59 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
No |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL voltage rating |
30 V RMS |
|---|
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.331 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.331 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 8218 010500 | Black | Reel | 500 ft | 612825358008 |
| 8218 010U500 | Black | UnReel | 500 ft | 612825196334 |
| 8218 0101000 | Black | Reel | 1,000 ft | 612825355540 |
| 8218 010U1000 | Black | UnReel | 1,000 ft | 612825357995 |
