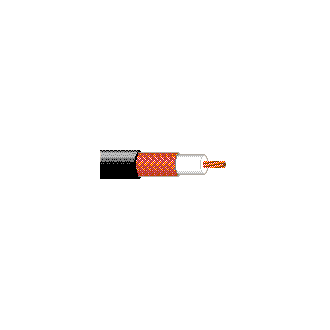

Analog Video, RG59, #22 Str BC, 95% BC Braid, PVC Jacket, CMX

...
22 AWG stranded (7x30) .030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
22 7x30 BC - Bare Copper 0.03 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.146 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride (Non-Contaminating) 0.242 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
15 Ohm/1000ft 15 Ohm/1000ft 2.6 Ohm/1000ft 2.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
17.3 pF/ft
Inductance
Nominal Inductance
0.09 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-450 MHz 23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
10 MHz 0.9 dB/100ft
50 MHz 2.1 dB/100ft
100 MHz 3 dB/100ft
200 MHz 4.5 dB/100ft
400 MHz 6.6 dB/100ft
700 MHz 8.9 dB/100ft
900 MHz 10.1 dB/100ft
1000 MHz 10.9 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.3 ns/ft 78%
Voltage
Non-UL Voltage Rating UL Voltage Rating
300 V RMS 150 V RMS
Temperature Range

Operating Temperature Range

-40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

35 lbs/1000ft

Max. Pull Tension

65 lbs

Min. Bend Radius/Minor Axis

2.5 in
Standards

NEC/(UL) Compliance

CMX

CEC/C(UL) Compliance

CMX

UL AWM Style Compliance

AWM 1354 (30 V 60°C)

RG Type

59

Series Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

VW-1

CSA Flammability

FT1

UL voltage rating

150 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

For CCTV Applications.
