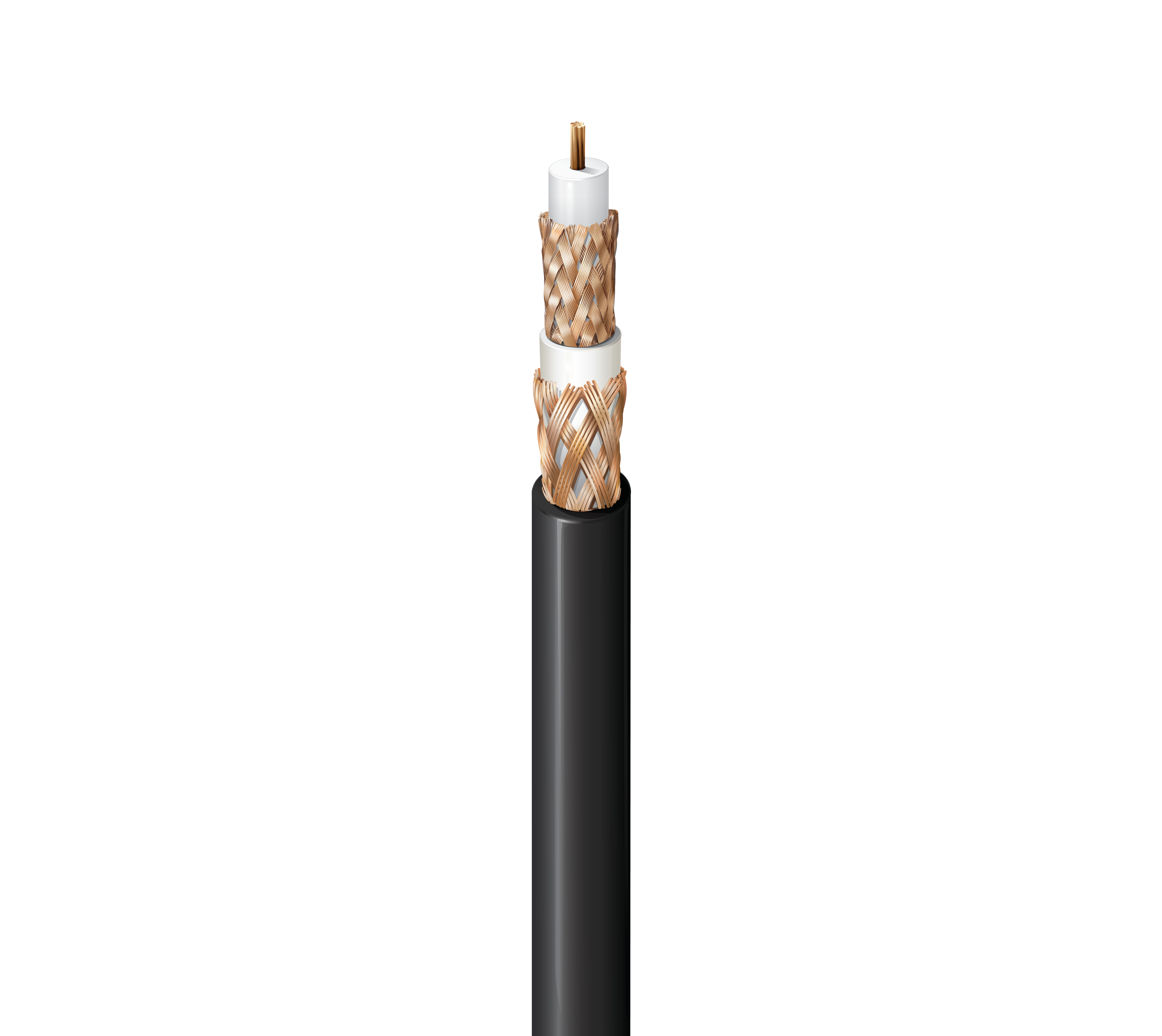

Product Number: 1859A
Triax, RG11, 15 AWG Str BC, Double BC Braids, PVDF Jkt, CMP
Triax, RG11, 15 AWG (19x27) Bare Copper Conductor, FEP Insulation, 95% Bare Copper Braid Shield, PVDF Insulation, 90% Bare Copper Braid Shield, PVDF Jacket, CMP
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Analog Video; Interconnect camera to CCU (camera control unit) |
|---|
Construction Details
|
RG Type |
11 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 15 AWG | 19x27 | 0.064 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter |
|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | 0.285 in (7.24 mm) |
Inner Shield
| Layer | Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Bare Copper (BC) | 95% |
Inner Jacket
| Material | Nom. Diameter |
|---|---|
| PVDF - Polyvinylidene Fluoride | 0.350 in (8.89 mm) |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Bare Copper (BC) | 90% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVDF - Polyvinylidene Fluoride | 0.406 in (10.3 mm) |
Electrical Characteristics
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 5 - 850 MHz | 21 dB |
| 850 - 4500 MHz | 15 dB |
Electricals
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|---|
| 3.0 Ohm/1000ft (9.8 Ohm/km) | 1.4 Ohm/1000ft (4.6 Ohm/km) | 1.3 Ohm/1000ft (4.3 Ohm/km) | 16.5 pF/ft (54.1 pF/m) | 75 Ohm | 80% |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 125°C | -20°C to +125°C |
Bend Radius
| Installation Min. |
|---|
| 4.0 in |
|
Max. Pull Tension |
209 lbs (94.8 kg) |
|---|---|
|
Bulk Cable Weight |
127 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Plenum, Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA 262 |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.359 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.359 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1859A 010500 | Black | Reel | 500 ft | 612825125136 | C |
| 1859A 0101000 | Black | Reel | 1,000 ft | 612825125129 | C |
| 1859A 0103000 | Black | Reel | 3,000 ft | 612825381129 | |
| 1859A 0105000 | Black | Reel | 5,000 ft | 612825435785 |
