Product Number: 1423A
RS232/422 Low Cap, #24-6pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω

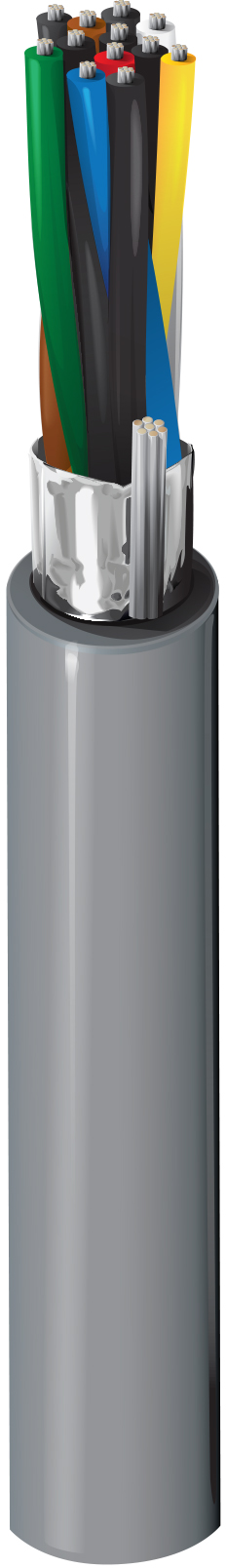

Computer EIA RS-232/422 Cable, 6-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 6 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.0125 in (0.318 mm) | White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.035 in (0.89 mm) | 0.319 in (8.10 mm) |
|
Overall Cable Diameter (Nominal) |
0.319 in (8.10 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 24 Ohm/1000ft (79 Ohm/km) | 13 pF/ft (43 pF/m) | 22 pF/ft (72 pF/m) | 100 Ohm | 78% | 1.8 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM), 30 V (UL AWM 2919) |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -20°C to +80°C |
|
Max. Pull Tension |
66 lbs (30 kg) |
|---|---|
|
Bulk Cable Weight |
44 lbs/1000ft (65 kg/km) |
Standards and Compliance
|
Flammability / Reaction to Fire |
UL1685 UL Loading |
|---|---|
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
AWM Compliance |
AWM 2919 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
History
|
Update and Revision |
Revision Number: 0.331 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.331 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 1423A 0601000 | Chrome | 612825115052 | C | ||
| 1423A 060500 | Chrome | 612825115069 | C | ||
| 1423A.00152 | Chrome | Reel | 152 m | 8719605001030 | |
| 1423A.00305 | Chrome | Reel | 305 m | 8719605001047 |
