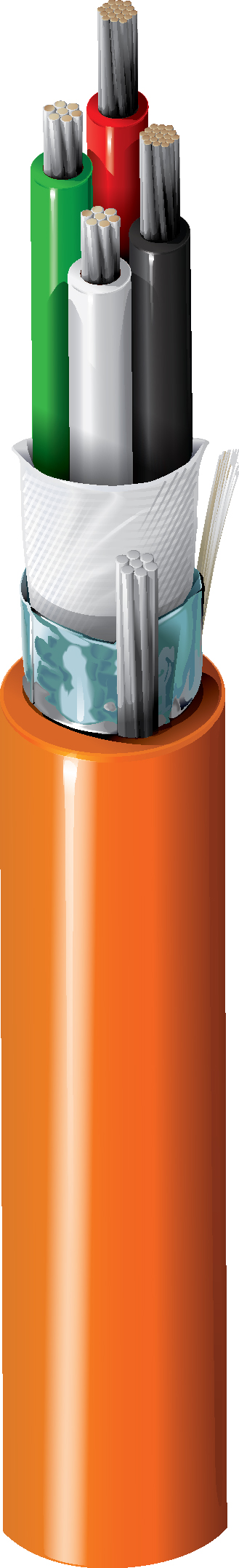

3126A

DeviceBus® for Square D/Seriplex®, 3 Pr #12+16+22 Str TC, PVC+PVC+PO Ins, OS (Data), PVC Jkt, CM

...
DeviceBus® for Square D/Seriplex®, 3 Pair 12+16+22AWG (65x30+26x30+7x30) Tinned Copper, PVC+PVC+PO Insulation, Overall Beldfoil® (Data Pair Only) Shield, PVC Outer Jacket, CM
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
16 26x30 TC - Tinned Copper 2
22 7x30 TC - Tinned Copper 2
12 65x30 TC - Tinned Copper 2

Conductor Count

6

Insulation
Element Material Nominal Wall Thickness
16 AWG PE - Polyethylene 0.025 in
22 AWG PE - Polyethylene 0.0405 in
12 AWG PVC - Polyvinyl Chloride 0.018 in
Color Chart
Number Color
1 (16 AWG) Red and Black
2 (22 AWG) Green and White
3 (12 AWG) White/Red and White/Black
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 22 7x30
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
PVC - Polyvinyl Chloride .486 x .363 in 0.039 in PO - Polyolefin (Foam) Tape
Construction and Dimensions
Cabling
Lay Direction
Left Hand
Electrical Characteristics
Conductor DCR
Element Max. Outer Shield DCR Nominal Conductor DCR Nominal Outer Shield DCR
16 AWG 16 Ohm/1000ft 4.49 Ohm/1000ft 16 Ohm/1000ft
22 AWG 18.1 Ohm/1000ft
12 AWG 1.8 Ohm/1000ft
Capacitance
Element Nom. Capacitance Conductor to Shield
16 AWG 28 pF/ft
22 AWG 16 pF/ft
Impedance
Nominal Characteristic Impedance
120 Ohm
Delay
Nominal Velocity of Propagation (VP) [%] Nominal Velocity of Propagation (VP) Description
78% 16 & 22 AWG
78% 12 AWG
48%
Voltage
UL Description UL Voltage Rating
CL2 300 V RMS
CM
Temperature Range

UL Temp Rating

75°C

Operating Temperature Range

-20°C to +75°C

Mechanical Characteristics

Bulk Cable Weight

105 lbs/1000ft

Max. Pull Tension

262 lbs
Standards

NEC Articles

Article 725, Article 800

NEC/(UL) Compliance

CL2, CM

CEC/C(UL) Compliance

CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.345 Revision Date: 04-30-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
3126A 0031000 Orange Reel 1,000 ft 612825142041
