Product Number: 82760
Electronic, 2 C #18 Str TC, FEP Ins, OS, PVC Jkt, CMP

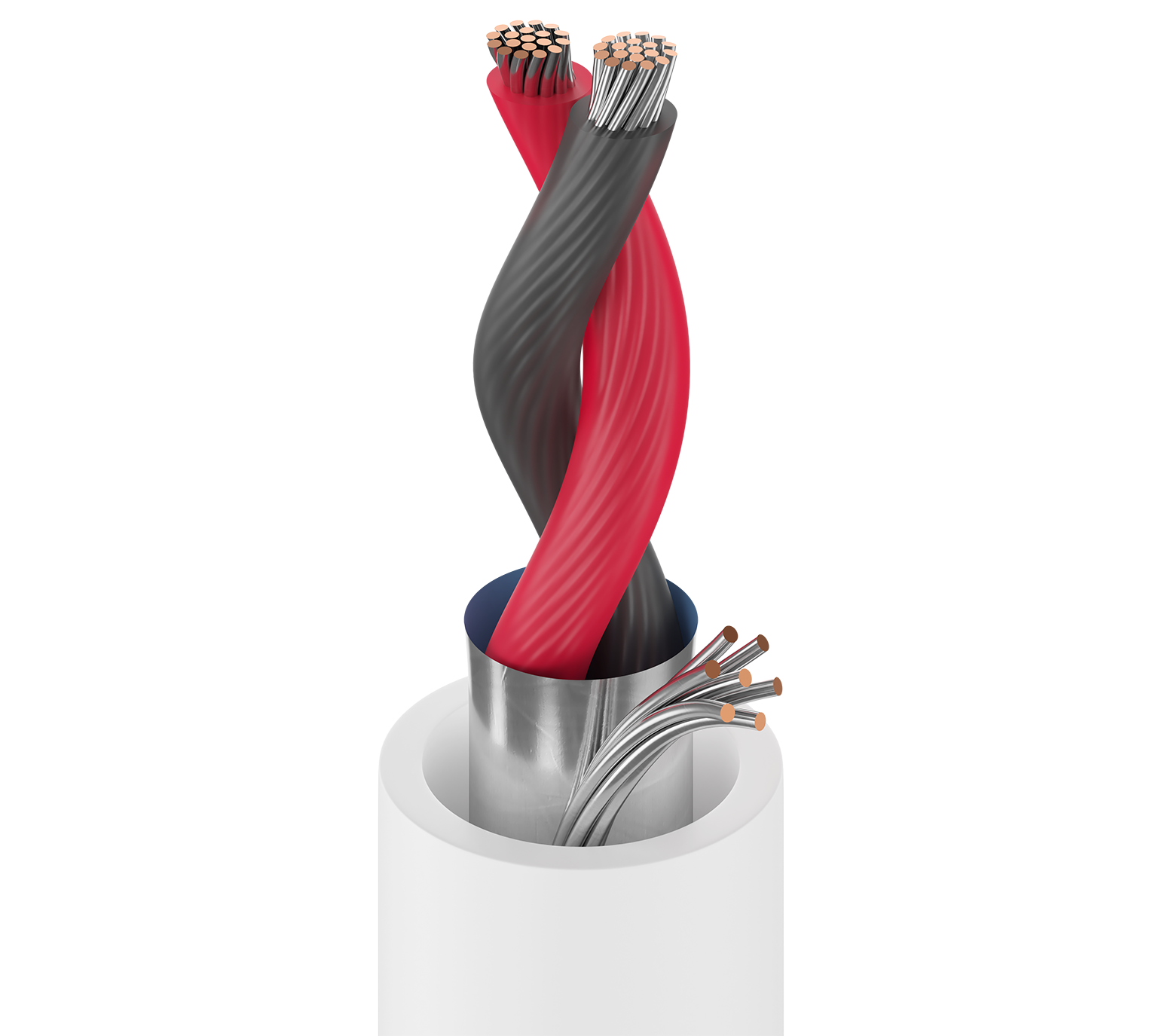

Electronic Cable, 2 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMP
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
indoor plenum applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 18 AWG | 19x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | FEP - Fluorinated Ethylene Propylene | 0.007 in (0.18 mm) | 0.057 in (1.4 mm) | Black & Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.014 in (0.36 mm) | 0.146 in (3.71 mm) |
|
Overall Cable Diameter (Nominal) |
0.146 in (3.71 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 7.05 Ohm/1000ft | 51 pF/ft (170 pF/m) | 97 pF/ft (320 pF/m) | 35 Ohm | 69% | 5 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.46 in (37.1 mm) | 1.46 in (37.1 mm) |
|
Max. Pull Tension |
62 lbs (28 kg) |
|---|---|
|
Bulk Cable Weight |
20 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Plenum, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, UL 910 (Plenum), FT6 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
8760 |
History
|
Update and Revision |
Revision Number: 0.540 Revision Date: 02-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.540 Revision Date: 02-15-2024 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 82760 877U500 | Natural | UnReel | 500 ft | 612825197737 | |
| 82760 8771000 | Natural | Reel | 1,000 ft | 612825197744 | C |
| 82760 877U1000 | Natural | UnReel | 1,000 ft | 612825197720 | |
| 82760 8775000 | Natural | Reel | 5,000 ft | 612825197751 |
