Product Number: 8337
RS232, Low Cap, #24-7pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

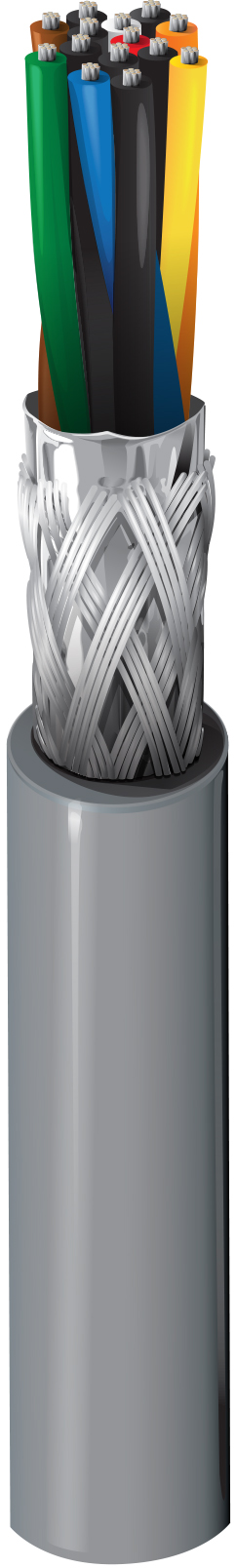

Computer EIA RS-232 Cable, 7-Pair, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
RS-232 extended distance applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 7 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | SR-PVC - Polyvinyl Chloride (Semi-Rigid) | 0.0105 in (0.267 mm) | 0.044 in (1.1 mm) | Western Electric Standard |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.035 in (0.89 mm) | 0.321 in (8.15 mm) |
|
Overall Cable Diameter (Nominal) |
0.321 in (8.15 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 28.8 Ohm/1000ft | 30 pF/ft (98 pF/m) | 50 pF/ft (160 pF/m) | 75 Ohm | 60% | 1.96 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMG), 300 V (UL AWM 2464) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -30°C to +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.2 in (81 mm) | 3.2 in (81 mm) |
|
Max. Pull Tension |
82 lbs (37 kg) |
|---|---|
|
Bulk Cable Weight |
60 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading, FT4 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMG |
|
AWM Compliance |
AWM 2464, AWM I A |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.464 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.464 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8337 060100 | Chrome | Reel | 100 ft | 612825204541 | |
| 8337 060500 | Chrome | Reel | 500 ft | 612825204565 | |
| 8337 0601000 | Chrome | Reel | 1,000 ft | 612825204558 | C |
