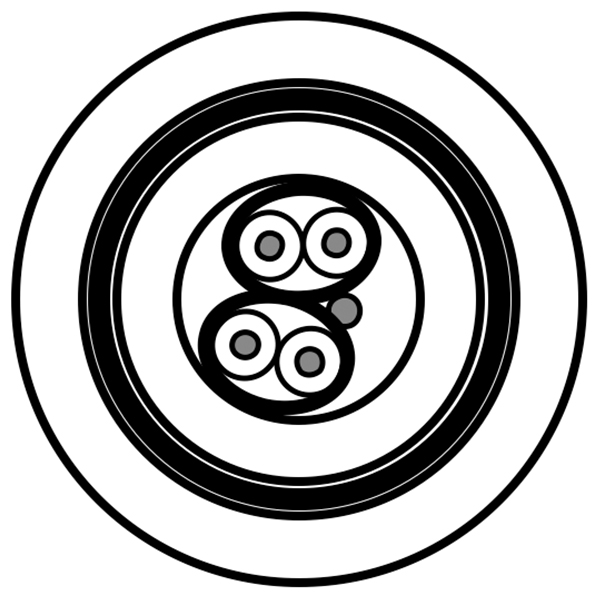

Product Number: 8723LS
Electronic, 2PR #22 Str TC, PO ins, IF, LSNH Jkt, 300V, SWA
Electronic, 2 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V, SWA
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Instrumentation and computer cable; For data transmission applications |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 2 |
|
Conductor Count |
4 |
|---|---|
|
Total Number of Pairs |
2 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PP - Polypropylene | 1.17 mm | 0.05 mm |
Color Chart
| Number | Color |
|---|---|
| Pair 1 | Black & Red |
| Pair 2 | Green & White |
Inner Shield
| Type | Material | Material Trade Name | Thickness of Foil | Drainwire Material |
|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 9 / 12 µm | TC - Tinned Copper |
Inner Jacket
| Material | Color | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Chrome (RAL 7037) | 4.55 mm | 0.65 mm |
|
Table Notes |
UV Stabilised |
|---|
Outer Shield
| Material |
|---|
| Bi-Laminate (Alum+Poly) |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 8.8 mm | 1.25 mm |
Construction and Dimensions
Cabling
| Description |
|---|
| 2 pairs twisted to cable core |
Armor
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Galvanized steel wire | 0.9 mm | Min. 95% |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Inner Shield DCR |
|---|---|
| 49.2 Ohm/km | 54.5 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 114.8 pF/m | 203.4 pF/m |
Inductance
| Nominal Pair Inductance |
|---|
| 0.56 µH/m |
Impedance
| Nominal Characteristic Impedance |
|---|
| 45 Ohm |
Current
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 2.3 Amps per Conductor |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Installation Temperature Range |
-15°C To +80°C |
|---|---|
|
Storage Temperature Range |
-45°C To +80°C |
|
Operating Temp Range (Flexible Install) |
-15°C To +80°C |
|
Operating Temp Range (Fixed Install) |
-45°C To +80°C |
Mechanical Characteristics
|
Oil Resistance |
IEC 60811-404 |
|---|---|
|
Min. Bend Radius During Installation |
132 mm |
Standards
|
CENELEC Compliance |
EN 50290-2-20 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca |
|---|
Suitability
|
Suitability - Sunlight Resistance |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-3-24 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
|
IEC 61034-2 - Smoke Density Min. Transmittance |
60% |
History
|
Update and Revision |
Revision Number: 0.237 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.237 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 8723LS.00500 | Black | Reel | 500 m | 8719605018694 |
| 8723LS.001000 | Black | Reel | 1,000 m | 8719605018687 |
