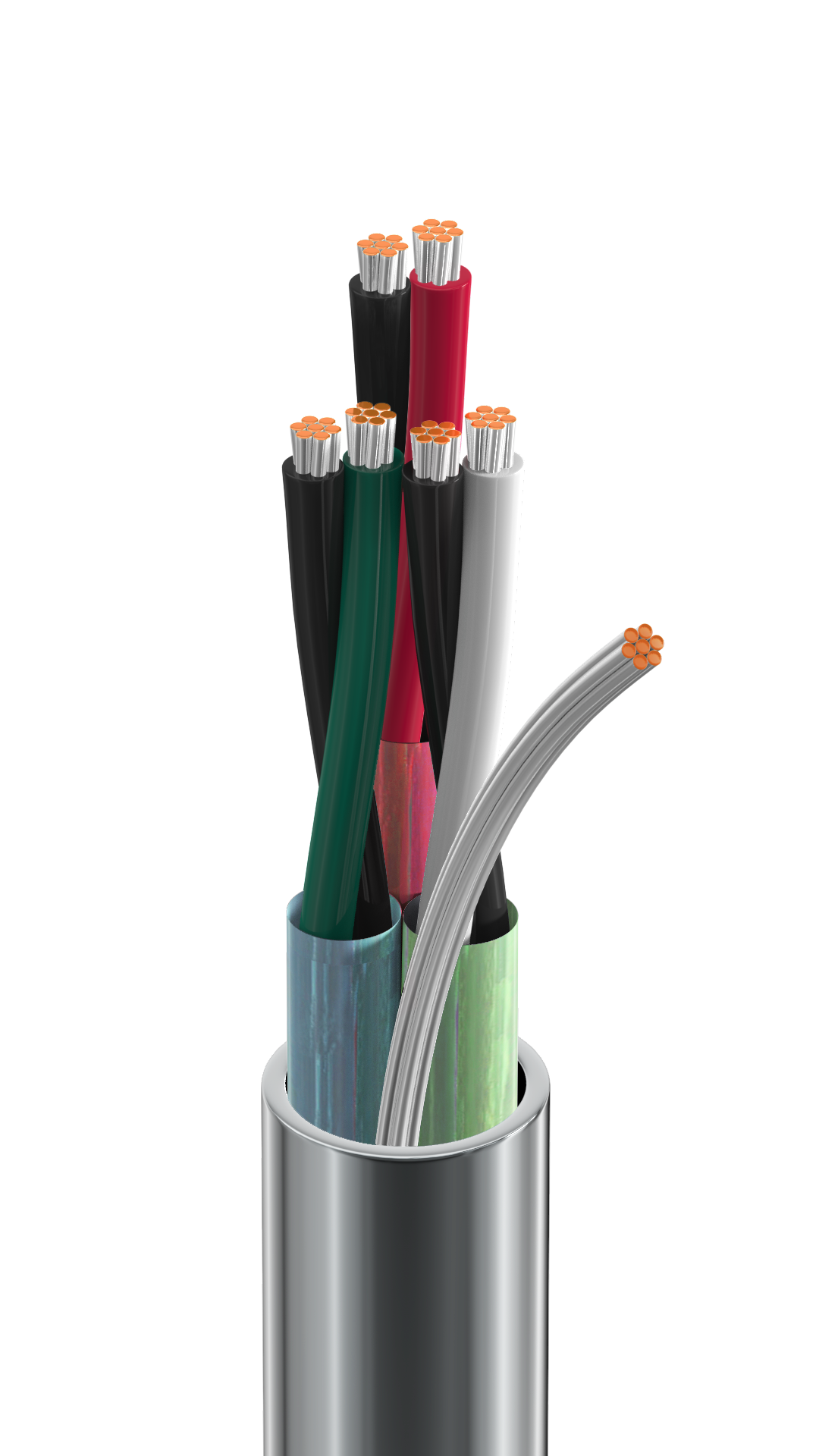

Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, PVC Jkt, CM
Regions Available: Global
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 3 | 22 AWG | 7x30 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PP - Polypropylene | 0.011 in (0.28 mm) | 0.050 in (1.3 mm) | Black & Red, Black & White, Black & Green |
| Element | Shield Type | Material | Coverage | Drainwire Type | Notes |
|---|---|---|---|---|---|
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC | each pair |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.034 in (0.86 mm) | 0.273 in (6.93 mm) |
|
Overall Cable Diameter (Nominal) |
0.273 in (6.93 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|---|
| Pair(s) | 18.2 Ohm/1000ft | 12.39 Ohm/1000ft (40.65 Ohm/km) | 30 pF/ft (98 pF/m) | 55 pF/ft (180 pF/m) | 50 Ohm | 66% | 2.8 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V (CM), 30 V (UL AWM 2919) |
| UL Temperature | Operating | Storage |
|---|---|---|
| 80°C | -20°C to +80°C | -40°C To +80 °C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.7 in (69 mm) | 2.7 in (69 mm) |
|
Max. Pull Tension |
63.7 lbs (28.9 kg) |
|---|---|
|
Bulk Cable Weight |
39 lbs/1000ft |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 FT4 Loading, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
AWM Compliance |
AWM 2919 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
88777, 87777, 82777 |
|
Update and Revision |
Revision Number: 0.538 Revision Date: 12-22-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 8777.0030 | Chrome | Reel | 30 m | 8719605019493 | |
| 8777 060100 | Chrome | Reel | 100 ft | 612825216087 | |
| 8777.00U152 | Chrome | UnReel | 152 m | 8719605019516 | |
| 8777.01152 | Chrome | Reel | 152 m | 8719605019530 | |
| 8777 060250 | Chrome | Reel | 250 ft | 612825216124 | C |
| 8777.00305 | Chrome | Reel | 305 m | 8719605019509 | |
| 8777.00U305 | Chrome | UnReel | 305 m | 8719605019523 | |
| 8777 060500 | Chrome | Reel | 500 ft | 612825216148 | C |
| 8777 060U500 | Chrome | UnReel | 500 ft | 612825216070 | |
| 8777 0601000 | Chrome | Reel | 1,000 ft | 612825216094 | C |
| 8777 060U1000 | Chrome | UnReel | 1,000 ft | 612825216063 | |
| 8777.001000 | Chrome | Reel | 1,000 m | 8719605019486 | |
| 8777 0601640 | Chrome | Reel | 1,640 ft | 612825216117 | C |
| 8777.013048 | Chrome | Reel | 3,048 m | 8719605019547 | |
| 8777 0603280 | Chrome | Reel | 3,280 ft | 612825216131 | C |
| 8777 0605000 | Chrome | Reel | 5,000 ft | 612825216155 | C |
| 8777 06010000 | Chrome | Reel | 10,000 ft | 612825216100 | C Y |
