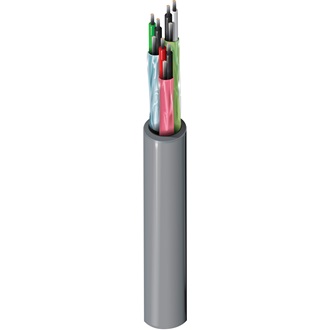

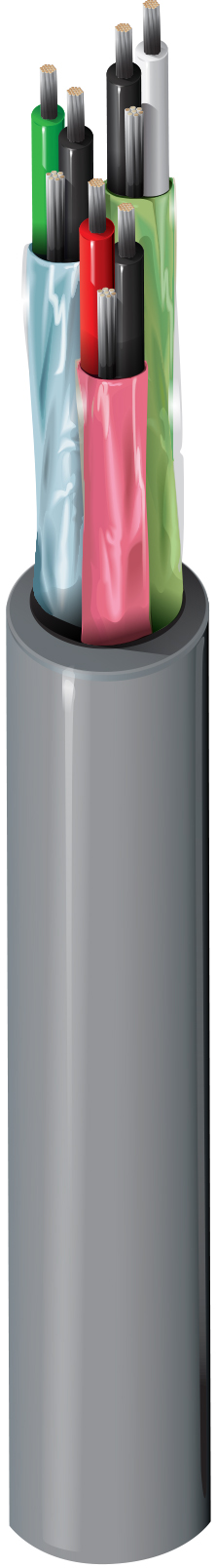

Product Number: 87777
Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, PVDF Jkt, CMP
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductor, FEP insulation, twisted pairs individually shielded with Beldfoil® (100% coverage), overall jacket per table below, 22 AWG stranded tinned copper drain wire.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; voice communications; panel wiring |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 0.03 in | 3 |
|
Conductor Count |
6 |
|---|
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.01 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| 3 | Black & Green |
Inner Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 100% | TC - Tinned Copper | 22 | Stranded |
Outer Shield
| Material | Drainwire AWG |
|---|---|
| No Shield | 22 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVDF - Polyvinylidene Fluoride | 0.234 in | 0.014 in |
Electrical Characteristics
Conductor DCR
| Individual Pair Nominal Shield DCR | Max. Conductor DCR |
|---|---|
| 11.3 Ohm/1000ft | 160 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 31 pF/ft | 67 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.18 µH/ft |
Impedance
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
Delay
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 69 ns/100m | 1.47 ns/ft | 69% |
Current
| Max. Recommended Current [A] |
|---|
| 3.5 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
Operating Temperature Range |
-20°C To +150°C |
|---|
Mechanical Characteristics
|
Bulk Cable Weight |
36 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
82 lbs |
|
Min. Bend Radius/Minor Axis |
2.5 in |
Standards
|
NEC/(UL) Compliance |
CMP |
|---|---|
|
CEC/C(UL) Compliance |
CMP |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
NFPA 262 Plenum Flame Test (UL910) |
|---|---|
|
CSA Flammability |
FT6 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Related Part Numbers
|
Non-Plenum Number |
8777 |
|---|---|
|
Footnote |
C - CRATE REEL PUT-UP. |
History
|
Update and Revision |
Revision Number: 0.348 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.348 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 87777 0021000 | Red | 612825216209 |
| 87777 002500 | Red | 612825216216 |
