89696

POS Cable, #22-2pr, BC, FEP, O/A Foil+55% TC Braid, FEP Jkt, CMP

...

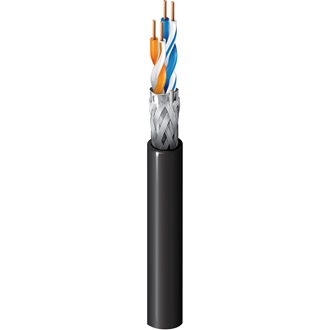

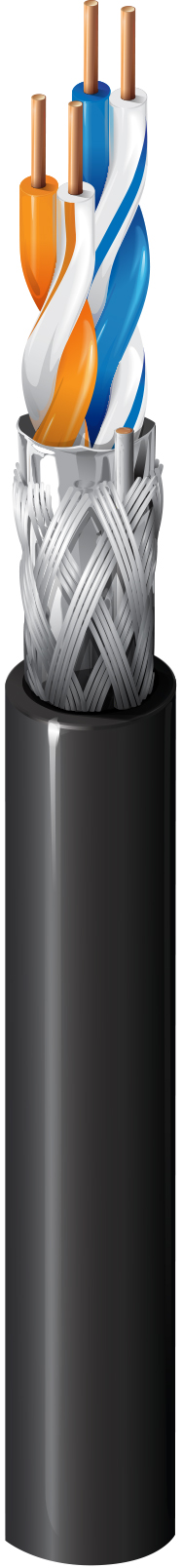

Computer POS Cable, 22 AWG solid bare copper conductors, solid FEP insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (55% coverage), 22 AWG solid tinned copper drain wire, FEP jacket, plenum rated
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
22 Solid TC - Tinned Copper 2

Conductor Count

4

Insulation
Material Material Trade Name
FEP - Fluorinated Ethylene Propylene Teflon®
Color Chart
Number Color
1 Blue & White with Blue Stripe
2 Orange & White with Orange Stripe
Outer Shield
Type Layer Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 22 Solid
Braid 2 Tinned Copper (TC) 55%

Table Notes

Polyester Tape

Outer Jacket
Material Material Trade Name Nominal Diameter
FEP - Fluorinated Ethylene Propylene Teflon® 0.262 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
16.5 Ohm/1000ft 4.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
15.5 pF/ft 27 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
69.5 ns/100m 1.46 ns/ft 70%
High Frequency
Frequency [MHz]
0.3 MHz
0.6 MHz
1 MHz
1.5 MHz
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Operating Temperature Range

-70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight

41.1 lbs/1000ft

Max. Pull Tension

65 lbs

Min. Bend Radius/Minor Axis

5.5 in
Standards

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262 Plenum Flame Test (UL910)

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Related Part Numbers

Non-Plenum Number

9696

Footnote

C - CRATE REEL PUT-UP.
Product Notes

Notes

Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision

Revision Number: 0.338 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
89696 0101000 Black 612825221081
