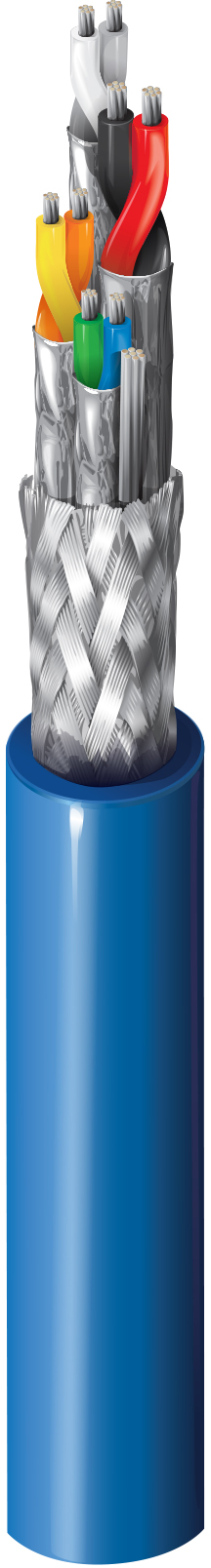

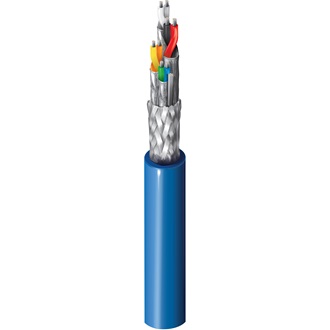

Product Number: 89892
Transceiver 10BASE5, #20-4pr, FEP, PVC Jkt, CMP
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, FEP insulation, twisted pairs, individual Beldfoil® shields (100% coverage), overall polyester isolation tape and Duofoil® shield + a tinned copper braid shield (95% coverage), fluorocopolymer jacket, plenum rated.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
10Base5 Transceiver |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 20 | 7x28 | TC - Tinned Copper | 4 |
|
Conductor Count |
8 |
|---|
Insulation
| Material | Material Trade Name | Nominal Wall Thickness |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | Teflon® | 0.011 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Gray & White |
| 2 | Yellow & Orange |
| 3 | Blue & Green |
| 4 | Red & Black |
Inner Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 100% | TC - Tinned Copper | 22 | 7x30 |
Outer Shield
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| Braid | 2 | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness | Separator Material |
|---|---|---|---|
| PVDF - Polyvinylidene Fluoride | 0.359 in | 0.014 in | Polyester Tape |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 9.5 Ohm/1000ft | 1.5 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 16.7 pF/ft | 29.5 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.2 µH/ft |
Impedance
| Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|
| 78 Ohm | ± 5 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 10 MHz | 6 dB/100m |
Delay
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 78 ns/100m | 1.3 ns/ft | 78% |
High Frequency
| Max. Insertion Loss (Attenuation) |
|---|
| 6 dB/100m |
Current
| Max. Recommended Current [A] |
|---|
| 2.8 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
UL Temp Rating |
150°C |
|---|---|
|
Operating Temperature Range |
-40°C To +150°C |
Mechanical Characteristics
|
Bulk Cable Weight |
90 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
175 lbs |
|
Min. Bend Radius/Minor Axis |
3.75 in |
Standards
|
Customer Reference Document |
DEC Part No. 17-00321-02 |
|---|---|
|
NEC/(UL) Compliance |
CMP |
|
CEC/C(UL) Compliance |
CMP |
|
IEEE Compliance |
IEEE 802.3 10Base5 |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
NFPA 262 Plenum Flame Test (UL910) |
|---|---|
|
CSA Flammability |
FT6 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
Related Part Numbers
|
Non-Plenum Number |
9901 |
|---|---|
|
Footnote |
C - CRATE REEL PUT-UP. |
Product Notes
|
Notes |
Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
|---|
History
|
Update and Revision |
Revision Number: 0.356 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.356 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 89892 0011000 | Brown | 612825221388 |
| 89892 001500 | Brown | 612825221395 |
