Product Number: 9315
Audio, Control & Instrument, #22-15pr, PVC, O/A Foil, PVC Jkt, CMG

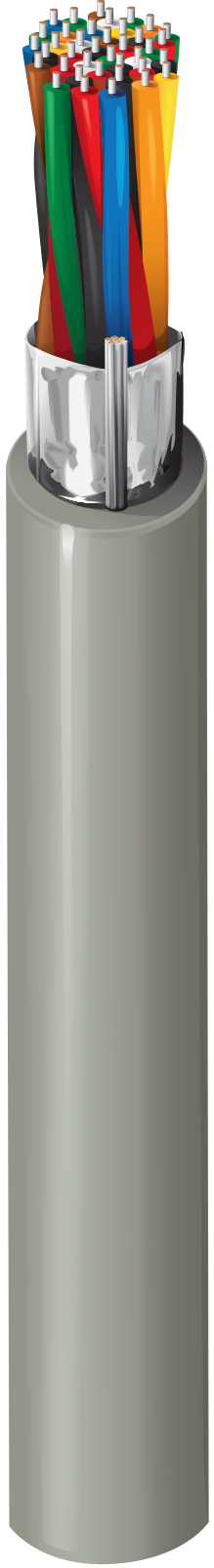

Audio, Control & Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, twisted pairs, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | Solid | TC - Tinned Copper | 15 |
|
Conductor Count |
30 |
|---|
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| PVC - Polyvinyl Chloride | 0.013 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & White |
| 3 | Black & Green |
| 4 | Black & Blue |
| 5 | Black & Yellow |
| 6 | Black & Brown |
| 7 | Black & Orange |
| 8 | Red & White |
| 9 | Red & Green |
| 10 | Red & Blue |
| 11 | Red & Yellow |
| 12 | Red & Brown |
| 13 | Red & Orange |
| 14 | Green & White |
| 15 | Green & Blue |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 22 | 7x30 |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.449 in | 0.037 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 16.5 Ohm/1000ft | 14 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 35 pF/ft | 50 pF/ft |
Inductance
| Nominal Inductance |
|---|
| 0.2 µH/ft |
Current
| Max. Recommended Current [A] |
|---|
| 1.4 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
|
UL Temp Rating |
80°C (UL AWM Style 2464) |
|---|---|
|
Operating Temperature Range |
-20°C To +80°C |
Mechanical Characteristics
|
Bulk Cable Weight |
124 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
242 lbs |
|
Min. Bend Radius/Minor Axis |
4.5 in |
Standards
|
NEC/(UL) Compliance |
CMG |
|---|---|
|
CEC/C(UL) Compliance |
CMG |
|
UL AWM Style Compliance |
AWM 2464 (300 V 80°C) |
|
CPR Euroclass |
Eca |
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL1685 FT4 Loading |
|---|---|
|
CSA Flammability |
FT4 |
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
300 V RMS |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Related Part Numbers
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
History
|
Update and Revision |
Revision Number: 0.337 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.337 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 9315 060500 | Chrome | Reel | 500 ft | 612825228196 |
| 9315 0601000 | Chrome | Reel | 1,000 ft | 612825228189 |
