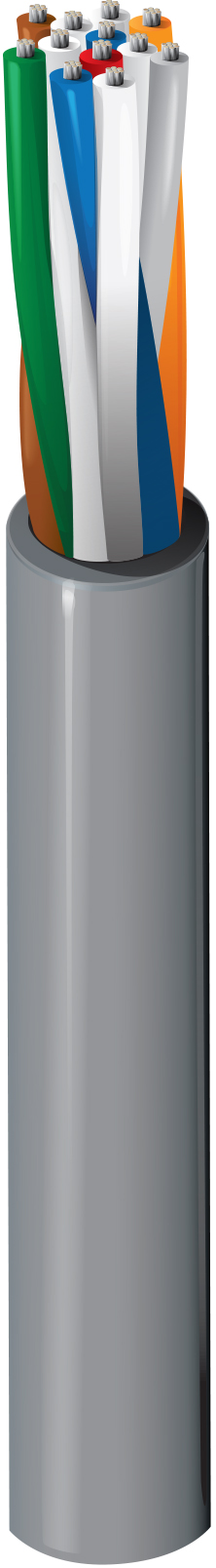

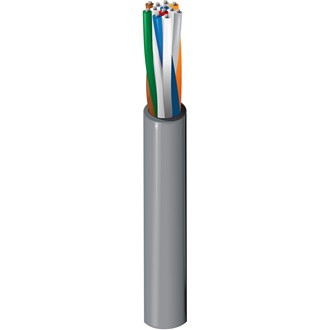

Product Number: 9566
Audio, Control & Instrument, #24-6pr, PVC, PVC Jkt, CMG
Audio, Control & Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 6 | 24 | Solid | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.041 in (1.0 mm) | White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.032 in (0.81 mm) | 0.289 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|
| 32.8 Ohm/1000ft | 22 pF/ft (72 pF/m) | 1.4 Amps per Conductor at 20ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMG), 150 V (AWM 2576) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -20°C To +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 2.89 in (73.4 mm) | 2.89 in |
|
Max. Pull Tension |
61 lbs (28 kg) |
|---|---|
|
Bulk Cable Weight |
40 lbs/1000ft |
Standards and Compliance
|
Flammability / Reaction to Fire |
UL1685 FT4 Loading, FT4, IEC 60332-1-2 |
|---|---|
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMG |
|
AWM Compliance |
AWM 2576 |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.333 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.333 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9566 060500 | Chrome | Reel | 500 ft | 612825256052 | C |
| 9566 060U500 | Chrome | UnReel | 500 ft | 612825256038 | |
| 9566 0601000 | Chrome | Reel | 1,000 ft | 612825256045 | C |
| 9566 060U1000 | Chrome | UnReel | 1,000 ft | 612825256021 |
