Audio, Control & Instrument, #24-25pr, PVC, PVC Jkt, CMG

...

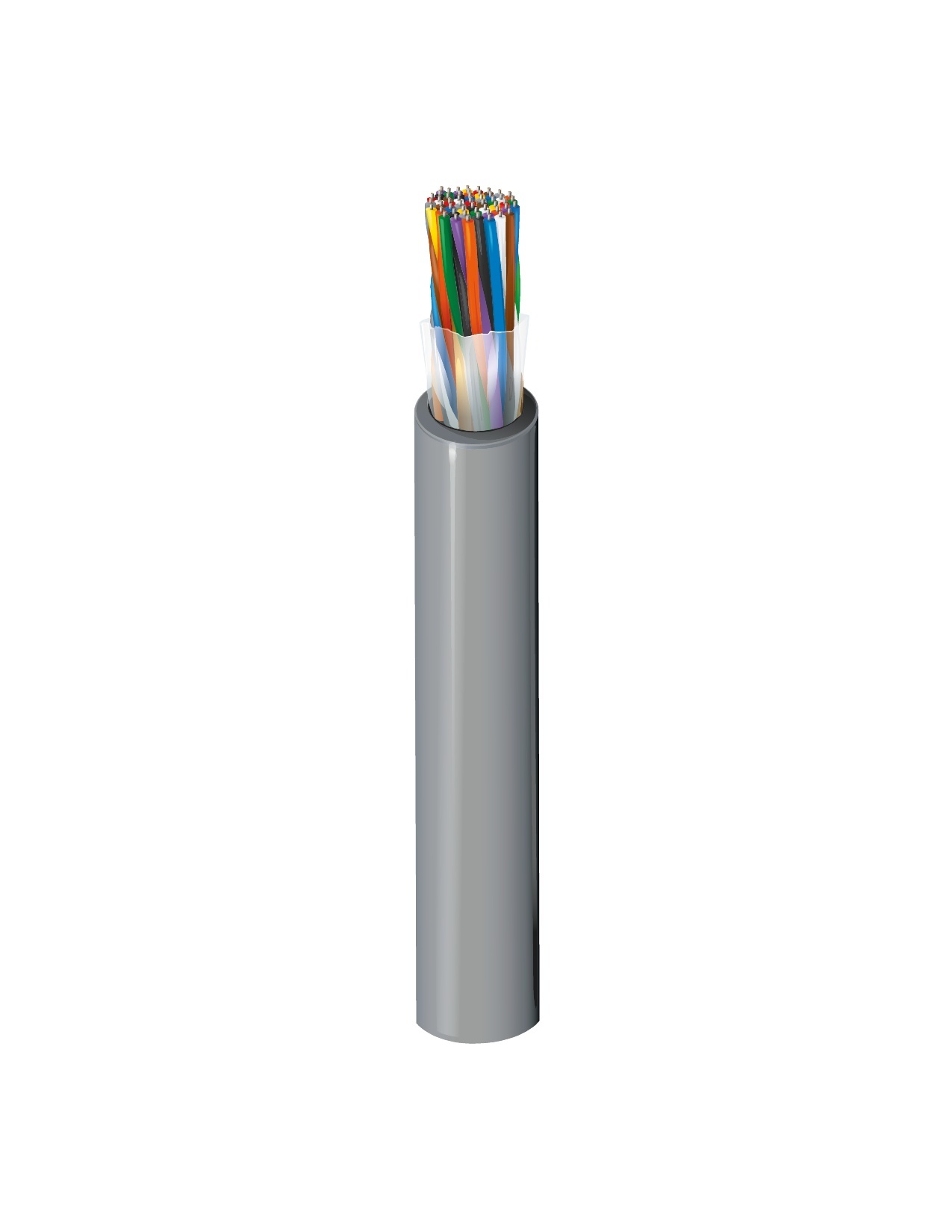

Audio, Control & Instrument Cable, 24 AWG solid tinned copper conductors, PVC insulation, twisted pairs, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

telephone cables; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); voice communications

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 25 24 Solid TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC - Polyvinyl Chloride 0.01 in (0.25 mm) 0.041 in (1.0 mm) White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Gray, Black & Blue, Black & Orange, Black & Green, Black & Brown, Black & Gray, Yellow & Blue, Yellow & Orange, Yellow & Green, Yellow & Brown, Yellow & Gray, Purple & Blue, Purple & Orange, Purple & Green, Purple & Brown, Purple & Gray
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.04 in (1.0 mm) 0.48 in
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
32.8 Ohm/1000ft 22 pF/ft (72 pF/m) 1 Amp per Conductor at 20ºC
Voltage
UL Voltage Rating
300 V (CMG), 150 V (AWM 2576)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
4.8 in (120 mm) 4.8 in

Max. Pull Tension

255 lbs (116 kg)

Bulk Cable Weight

134 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL1685 FT4 Loading, FT4

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 2576

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)
