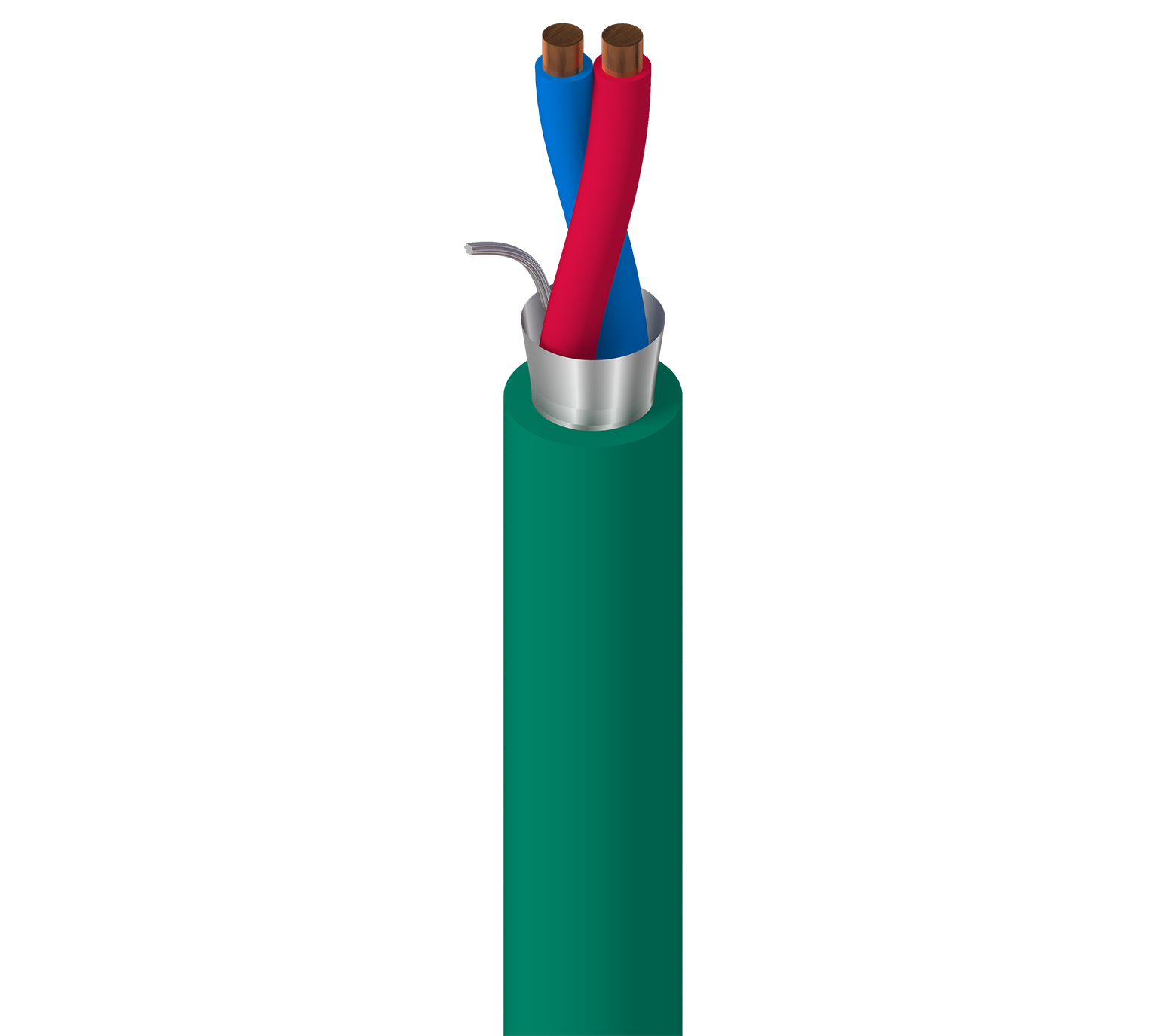

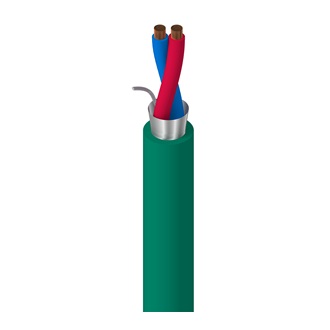

Product Number: YE00819
KNX, 1PR 0.8mm Sol BC, PE ins,OS, PVC jkt, Eca
KNX, 1 Pair, 0.8 mm cond diameter, Bare Copper - Solid, PE insulation, Overall Beldfoil® shielding, PVC jacket , CPR Eca
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
KNX, EIB cable for building management |
|---|
Physical Characteristics (Overall)
Conductor
| Stranding | Material | Cross Section | Nominal Diameter | No. of Conductors | No. of Pairs |
|---|---|---|---|---|---|
| Solid | BC - Bare Copper | 0.5 mm² | 0.8 mm | 2 | 1 |
|
Conductor Count |
2 |
|---|---|
|
Total Number of Pairs |
1 |
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| PE - Polyethylene | 1.4 mm | 0.05 mm | 0.3 mm |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Red & Blue |
| Wire 2 |
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] | Thickness of Foil | Drainwire Material | Drainwire Diameter |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | 9 µm | TC - Tinned Copper | 0.4 mm |
Outer Jacket
| Material | Nominal Diameter | Diameter - Tolerance | Nominal Wall Thickness |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 5.5 mm | 0.3 mm | 1.2 mm |
Construction and Dimensions
Cabling
| Description |
|---|
| 1 pair covered with a polyester foil |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 37.5 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 50 pF/m |
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
|
Electrical Characteristics Notes |
Testvoltage 4 kV, 1 min |
|---|
Temperature Range
|
Storage Temperature Range |
-30°C to +70°C |
|---|---|
|
Operating Temperature Range |
-20°C To +70°C |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
55 mm |
|---|---|
|
Min Setting Radius |
27.5 mm |
Standards
|
CPR Euroclass |
Eca |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor - Euroclass Eca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|
History
|
Update and Revision |
Revision Number: 0.204 Revision Date: 03-28-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.204 Revision Date: 03-28-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| YE00819.00500 | Green | Reel | 500 m | 8719605112576 |
| YE00819=K0500 | Green | Reel | 500 m | 8719605161222 |
| YE00819.001000 | Green | Reel | 1,000 m | 8719605112569 |
| YE00819=001000 | Green | Reel | 1,000 m | 8719605161239 |
