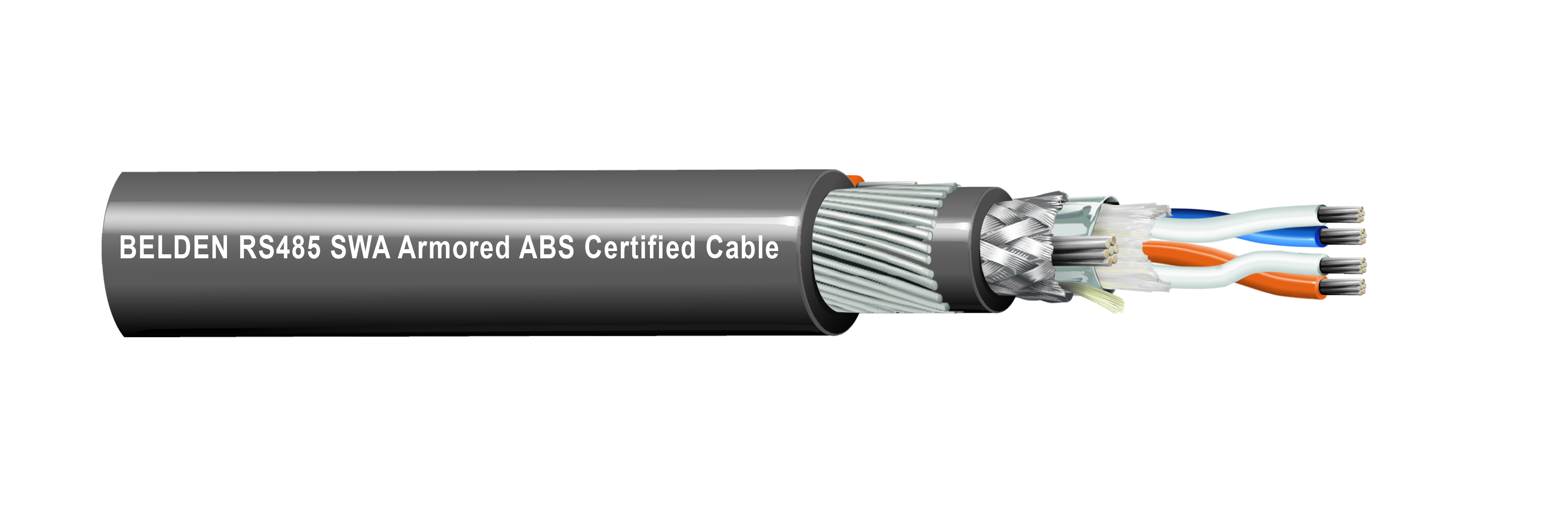

50092LS

RS485, 2P 22AWG Str TC, XLPE Ins, OS+TC Brd, LSZH Inner Jkt, SWA, LSZH Outer Jkt, ABS Approved

...
RS-485, 2PR x 22AWG Stranded Tinned Copper, Foamed Electron-Beam Cross Linked Polyethylene Insulation, Overall Foil Plus Tinned Copper Braid Shield, Low Smoke Zero Halogen Inner Jacket, Steel Wire Armor, Low Smoke Zero Halogen Outer Jacket, ABS Approved
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Designed for applications which are used for RS 232/422/485, CANBUS, MODBUS communication protocols. Cable applications include motion oriented machine, machine control networks, temperature controllers, control panels, machine cutting tools, auxiliary equipment, SCADA communications, etc. These cables are used in emergency evacuation / shutdown systems in building automation, offshore, oil & gas and railway applications and are flame retardant according to IEC 60332-3-22 Category A

Construction Details
Conductor
Size Stranding Material
22 AWG Stranded TC - Tinned Copper
Insulation
Material Color Code
EB-XLFMPE White & Blue, White & Orange
Outer Shield
Shield Type Material Drainwire Type
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 24 AWG (7x32) TC
Inner Jacket
Material
LSZH - Low Smoke Zero Halogen (Flame Retardant)
Armor
Armor Type & Material
SWA - Steel Wire Armor
Outer Jacket
Material
LSZH - Low Smoke Zero Halogen (Flame Retardant)

Overall Cable Diameter (Nominal)

12.7 mm (0.500 in)

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Max. Current
59.4 Ohm/km (18.1 Ohm/1000ft) 46 pF/m (14 pF/ft) 82 pF/m 120 Ohm 2.1 Amps per conductor at 25°C

Table Notes

Nom. Inductance to Resistance ratio (L/R): 25 µH/Ω

Voltage
Voltage Rating Breakdown Voltage
300 V 1.5 kVac / 2s
Mechanical Characteristics
Temperature
Operating
-40°C To +90°C

Bulk Cable Weight

290.7 kg/km (195.3 lbs/1000ft)

Standards and Compliance

Environmental Suitability

Sunlight Resistance, UV Resistance, Oil Resistance, Oil Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-22

Marine Compliance

ABS Type Approval Certificate 20-2029059-PDA

ISO/IEC Compliance

IEC 60092-376, IEC 61034-2 - Smoke Density Min Transmittance = Min. 70% as per IEC 61034-2

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = Max 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Other Standard Compliance(s)

Toxicity Index 5 as per EN 50305 / NF F63-305 (ITC)

Product Notes

Notes

Smoke Density ASTM D2843 Max. 40%

History

Update and Revision

Revision Number: 0.62 Revision Date: 07-05-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
50092LS-A100 Black Reel 100 m 8719605220264
50092LS-D100 Black Reel 100 m 8719605220318
50092LS-A222 Black Reel 222 m 8719605220271
50092LS-A290 Black Reel 290 m 8719605220288
50092LS 010500M Black Reel 500 m
50092LS-A500 Black Reel 500 m 8719605220295
50092LS-A692 Black Reel 692 m 8719605220301
50092LS 0101000M Black Reel 1,000 m
50092LS-D650 Chrome Reel 650 m 8719605220325
50092LS-D750 Chrome Reel 750 m 8719605220332
50092LS-D900 Chrome Reel 900 m 8719605220349
50092LS 060500M Grey Reel 500 m
50092LS 0601000M Grey Reel 1,000 m
