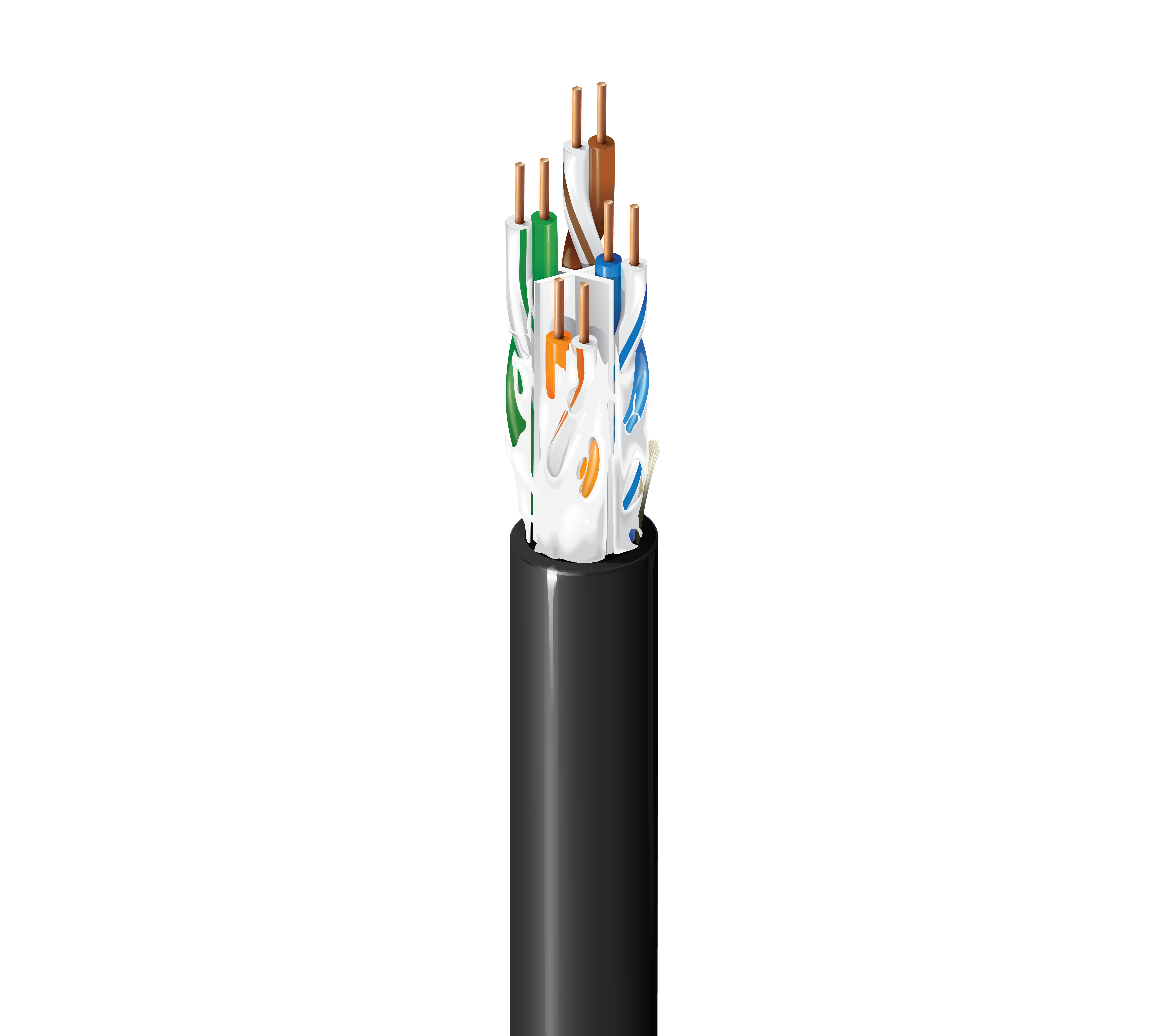

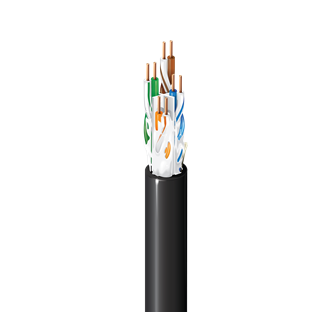

Product Number: 2143A
Category 6 Indoor/Outdoor Cable, 4 Pair, U/UTP, OSP/CM-LS, LSZH
Category 6 Premise Horizontal Cable (350MHz), Indoor/Outdoor OSP/CM-LS, 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Gel-filled, Haloarrest® UV Resistant Flame Retardant LSZH Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
OSP-Outdoor, Indoor/Outdoor, Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE, Noisy Environments, Not Suitable for Marine Application |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 AWG | Solid | BC - Bare Copper | 4 |
Insulation
| Material | Color Code |
|---|---|
| PO - Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
|
Waterblocking |
Gel Filled |
|---|
Outer Jacket
| Separator | Material | Material Trade Name | Nom. Diameter |
|---|---|---|---|
| Center Member (Patented X-Spline®) | LSZH - Low Smoke Zero Halogen (Flame Retardant) | Haloarrest® | 0.275 in (6.99 mm) |
|
Overall Cable Diameter (Nominal) |
0.275 in (6.99 mm) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 93.8 Ohm/km (28.6 Ohm/1000ft) | 160 pF/100m |
Delay
| Frequency | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|
| 100 MHz | 45 ns/100m | 65% |
High Frequency
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 dB/100m | 74.3 | 72.3 | 70.3 | 67.8 | 64.8 | 20.0 | 100 ± 15 | 100 ± 15 | 40.0 | 35.0 |
| 4 | 3.8 dB/100m | 65.3 | 63.3 | 59.5 | 55.7 | 52.7 | 23.0 | 100 ± 15 | 100 ± 15 | 40.0 | 23.0 |
| 8 | 5.3 dB/100m | 60.8 | 58.8 | 53.4 | 49.7 | 46.7 | 24.5 | 100 ± 15 | 100 ± 15 | 40.0 | 16.9 |
| 10 | 6.0 dB/100m | 59.3 | 57.3 | 51.4 | 47.8 | 44.8 | 25.0 | 100 ± 15 | 100 ± 15 | 40.0 | 15.0 |
| 16 | 7.6 dB/100m | 56.3 | 54.3 | 46.7 | 43.7 | 40.7 | 25.0 | 100 ± 15 | 100 ± 15 | 38.0 | 10.9 |
| 20 | 8.5 dB/100m | 54.8 | 52.8 | 44.3 | 41.7 | 38.7 | 25.0 | 100 ± 15 | 100 ± 15 | 37.0 | 9.0 |
| 25 | 9.5 dB/100m | 53.3 | 51.3 | 41.8 | 39.8 | 36.8 | 24.3 | 100 ± 15 | 100 ± 15 | 36.0 | 7.0 |
| 31.25 | 10.7 dB/100m | 51.9 | 49.9 | 39.2 | 37.9 | 34.9 | 23.6 | 100 ± 15 | 100 ± 15 | 35.1 | 5.1 |
| 62.5 | 15.4 dB/100m | 47.4 | 45.4 | 30.0 | 31.8 | 28.8 | 21.5 | 100 ± 15 | 100 ± 15 | 32.0 | |
| 100 | 19.8 dB/100m | 44.3 | 42.3 | 22.5 | 27.8 | 24.8 | 20.1 | 100 ± 15 | 100 ± 15 | 30.0 | |
| 155 | 25.2 dB/100m | 41.5 | 39.5 | 14.3 | 23.9 | 20.9 | 18.8 | 100 ± 22 | 100 ± 15 | 28.1 | |
| 200 | 29.0 dB/100m | 39.8 | 37.8 | 8.8 | 21.7 | 18.7 | 18.0 | 100 ± 22 | 100 ± 15 | 27.0 | |
| 250 | 32.8 dB/100m | 38.3 | 36.3 | 3.5 | 19.8 | 16.8 | 17.3 | 100 ± 32 | 100 ± 15 | 26.0 |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CM-LS) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating | Installation | Storage |
|---|---|---|---|
| 75°C | -40°C To +75°C | -20°C To +75°C | -40°C To +75°C |
Bend Radius
| Stationary Min. |
|---|
| 2.75 in (69.9 mm) |
|
Max. Pull Tension |
25 lbs (11 kg) |
|---|---|
|
Bulk Cable Weight |
39 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance, Aerial - When supported by messenger wire, Burial - Engineered burial only |
|---|---|
|
Sustainability |
Product Lens™, Environmental Product Declaration (EPD) Available |
|
Flammability / Reaction to Fire |
UL 1685 (UL Loading-Limited Smoke), IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CM-LS |
|
CEC / C(UL) Compliance |
CMG-ST1 |
|
ICEA Compliance |
S-116-732, S-56-434, S-99-689, S-100-685 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
NEMA Compliance |
ANSI/NEMA WC-66 |
|
Data Category |
Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6 |
|
ISO/IEC Compliance |
ISO/IEC 11801-1, IEC 61156-5 |
|
CENELEC Compliance |
Segregation class according EN50174-2 = a |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Cable not guaranteed to meet TIA 568.2 specification for delay above lengths of 90m. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. Fully Water Blocked. Suitable for burial or use in Buildings in Wet Locations. Not recommended for Direct Burial applications without additional crush and impact protection. Additional crush and impact protection would include cable armoring, installation in conduit or installation with over top barriers per Belden Technical Bulletin T/8-6. Sunlight Resistant (Black Jacket Only). |
|---|
History
|
Update and Revision |
Revision Number: 0.563 Revision Date: 03-17-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.563 Revision Date: 03-17-2025 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| 2143A 0101000 | Black | 612825130437 |
