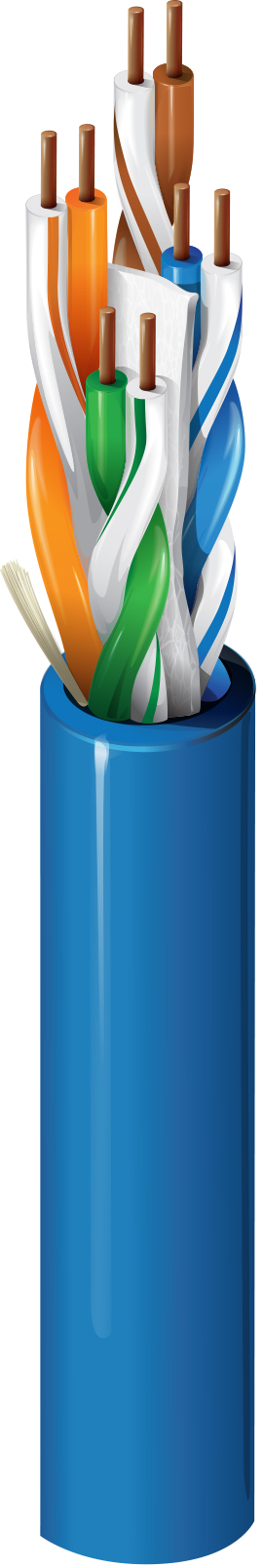

Category 6+ Enhanced Cable, 4 Bonded-Pairs, U/UTP, CMP
|
Suitable Applications |
Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM |
|---|---|
|
Patent |
This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents. |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 23 | Solid | BC - Bare Copper | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
| Material |
|---|
| FEP - Fluorinated Ethylene Propylene |
|
Bonded-Pair |
N/A |
|---|
| Number | Color |
|---|---|
| 1 | White/Blue Stripe & Blue |
| 2 | White/Orange Stripe & Orange |
| 3 | White/Green Stripe & Green |
| 4 | White/Brown Stripe & Brown |
| Material | Material Trade Name | Nominal Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.224 in | Yes |
| Max. Conductor DCR | Max. DCR Unbalance |
|---|---|
| 78 Ohm/km | 3.0 % |
| Max. Capacitance Unbalance | Nom.Mutual Capacitance |
|---|---|
| 330 pF/100m | 17 pF/ft |
| Max. Delay | Max. Delay Skew | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 537.6 ns/100m | 35 ns/100m | 72% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) | Max./Min. Fitted Impedance | Min. PSANEXT | Min. PSAACRF |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 MHz | 2.0 dB/100m | 79.3 dB | 77.3 dB | 77.3 dB | 75.3 dB | 70.8 dB | 67.8 dB | 20.0 dB | 100 ± 15 | 102 ± 15 | 77.0 dB | 67.0 dB |
| 4 MHz | 3.7 dB/100m | 70.3 dB | 68.3 dB | 66.5 dB | 64.5 dB | 58.8 dB | 55.8 dB | 23.6 dB | 100 ± 15 | 100 ± 15 | 77.0 dB | 66.2 dB |
| 8 MHz | 5.3 dB/100m | 65.8 dB | 63.8 dB | 60.5 dB | 58.5 dB | 52.7 dB | 49.7 dB | 25.3 dB | 100 ± 15 | 100 ± 15 | 77.0 dB | 60.1 dB |
| 10 MHz | 5.9 dB/100m | 64.3 dB | 62.3 dB | 58.4 dB | 56.4 dB | 50.8 dB | 47.8 dB | 26.0 dB | 100 ± 15 | 100 ± 15 | 77.0 dB | 58.2 dB |
| 16 MHz | 7.4 dB/100m | 61.2 dB | 59.2 dB | 53.8 dB | 51.8 dB | 46.7 dB | 43.7 dB | 26.0 dB | 100 ± 15 | 100 ± 15 | 74.4 dB | 54.1 dB |
| 20 MHz | 8.3 dB/100m | 59.8 dB | 57.8 dB | 51.4 dB | 49.4 dB | 44.8 dB | 41.8 dB | 26.0 dB | 100 ± 15 | 100 ± 15 | 73.0 dB | 52.2 dB |
| 25 MHz | 9.4 dB/100m | 58.3 dB | 56.3 dB | 49.0 dB | 47.0 dB | 42.8 dB | 39.8 dB | 25.5 dB | 100 ± 15 | 100 ± 15 | 71.5 dB | 50.2 dB |
| 31.25 MHz | 10.5 dB/100m | 56.9 dB | 54.9 dB | 46.4 dB | 44.4 dB | 40.9 dB | 37.9 dB | 25.0 dB | 100 ± 15 | 100 ± 15 | 70.1 dB | 48.3 dB |
| 62.5 MHz | 15.1 dB/100m | 52.4 dB | 50.4 dB | 37.3 dB | 35.3 dB | 34.9 dB | 31.9 dB | 23.5 dB | 100 ± 15 | 100 ± 15 | 65.6 dB | 42.3 dB |
| 100 MHz | 19.3 dB/100m | 49.3 dB | 47.3 dB | 30.0 dB | 28.0 dB | 30.8 dB | 27.8 dB | 22.5 dB | 100 ± 15 | 100 ± 15 | 62.5 dB | 38.2 dB |
| 155 MHz | 24.5 dB/100m | 46.4 dB | 44.4 dB | 21.9 dB | 19.9 dB | 27.0 dB | 24.0 dB | 21.6 dB | 100 ± 22 | 100 ± 15 | 58.0 dB | 32.2 dB |
| 200 MHz | 28.3 dB/100m | 44.8 dB | 42.8 dB | 16.6 dB | 14.6 dB | 24.8 dB | 21.8 dB | 21.0 dB | 100 ± 22 | 100 ± 15 | 56.5 dB | 30.2 dB |
| 250 MHz | 31.8 dB/100m | 43.3 dB | 41.3 dB | 11.5 dB | 9.5 dB | 22.8 dB | 19.8 dB | 20.5 dB | 100 ± 32 | 100 ± 15 | 55.3 dB | 28.7 dB |
| 300 MHz | 35.2 dB/100m | 42.1 dB | 40.1 dB | 6.9 dB | 4.9 dB | 21.3 dB | 18.3 dB | 20.1 dB | 100 ± 32 | 100 ± 15 | 54.3 dB | 27.3 dB |
| 350 MHz | 38.4 dB/100m | 41.1 dB | 39.1 dB | 2.7 dB | 0.7 dB | 19.9 dB | 16.9 dB | 19.8 dB | 100 ± 32 | 100 ± 15 | 53.5 dB | 26.2 dB |
| 400 MHz | 41.5 dB/100m | 40.3 dB | 38.3 dB | 18.8 dB | 15.8 dB | 19.5 dB | 100 ± 32 | 100 ± 15 | 52.7 dB | 25.1 dB | ||
| 450 MHz | 44.3 dB/100m | 39.5 dB | 37.5 dB | 17.7 dB | 14.7 dB | 19.2 dB | 100 ± 32 | 100 ± 15 | 52.0 dB | 24.2 dB | ||
| 500 MHz | 47.1 dB/100m | 38.8 dB | 36.8 dB | 16.8 dB | 13.8 dB | 19.0 dB | 100 ± 32 | 100 ± 15 | ||||
| 550 MHz | 49.7 dB/100m | 38.2 dB | 36.2 dB | 16.0 dB | 13.0 dB | 18.8 dB | 100 ± 32 | 100 ± 15 |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
Installation Temperature Range |
0°C To +50°C |
|---|---|
|
UL Temp Rating |
90°C |
|
Storage Temperature Range |
-20°C To +75°C |
|
Operating Temperature Range |
-20°C To +75°C |
|
Bulk Cable Weight |
26 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
25 lbs |
|
Min. Bend Radius/Minor Axis |
1.0 in |
|
NEC/(UL) Compliance |
CMP |
|---|---|
|
CEC/C(UL) Compliance |
CMP |
|
ISO/IEC Compliance |
11801 ed 2.2 (2011) Class E |
|
CPR Euroclass |
Eca |
|
Data Category |
Category 6 |
|
ANSI Compliance |
S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6 |
|
TIA/EIA Compliance |
ANSI/TIA-568.2-D Category 6 |
|
IEEE Compliance |
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
|
Third Party Performance Verification |
Category 6 |
|
Environmental Space |
Plenum |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
EU REACH SVHC Compliance (yyyy-mm-dd) |
2017-07-10 |
|
Suitability - Aerial |
No |
|---|---|
|
Suitability - Burial |
No |
|
Suitability - Hazardous Locations |
No |
|
Suitability - Indoor |
Yes |
|
Suitability - Non-Halogenated |
No |
|
Suitability - Oil Resistance |
No |
|
Suitability - Outdoor |
No |
|
Suitability - Sunlight Resistance |
No |
|
UL Flammability |
NFPA 262 Plenum (UL 910) |
|---|---|
|
IEC Flammability |
IEC 60332-1-2 |
|
Plenum (Y/N) |
Yes |
|---|
|
Non-Plenum Number |
2432 |
|---|
|
Notes |
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Values above 350 MHz are for Engineering Information Only. Print Includes Descending Footage/Meter Markings from Max. Put-Up Length to 0. |
|---|
|
Update and Revision |
Revision Number: 0.137 Revision Date: 05-31-2024 |
|---|
