Product Number: 777940T

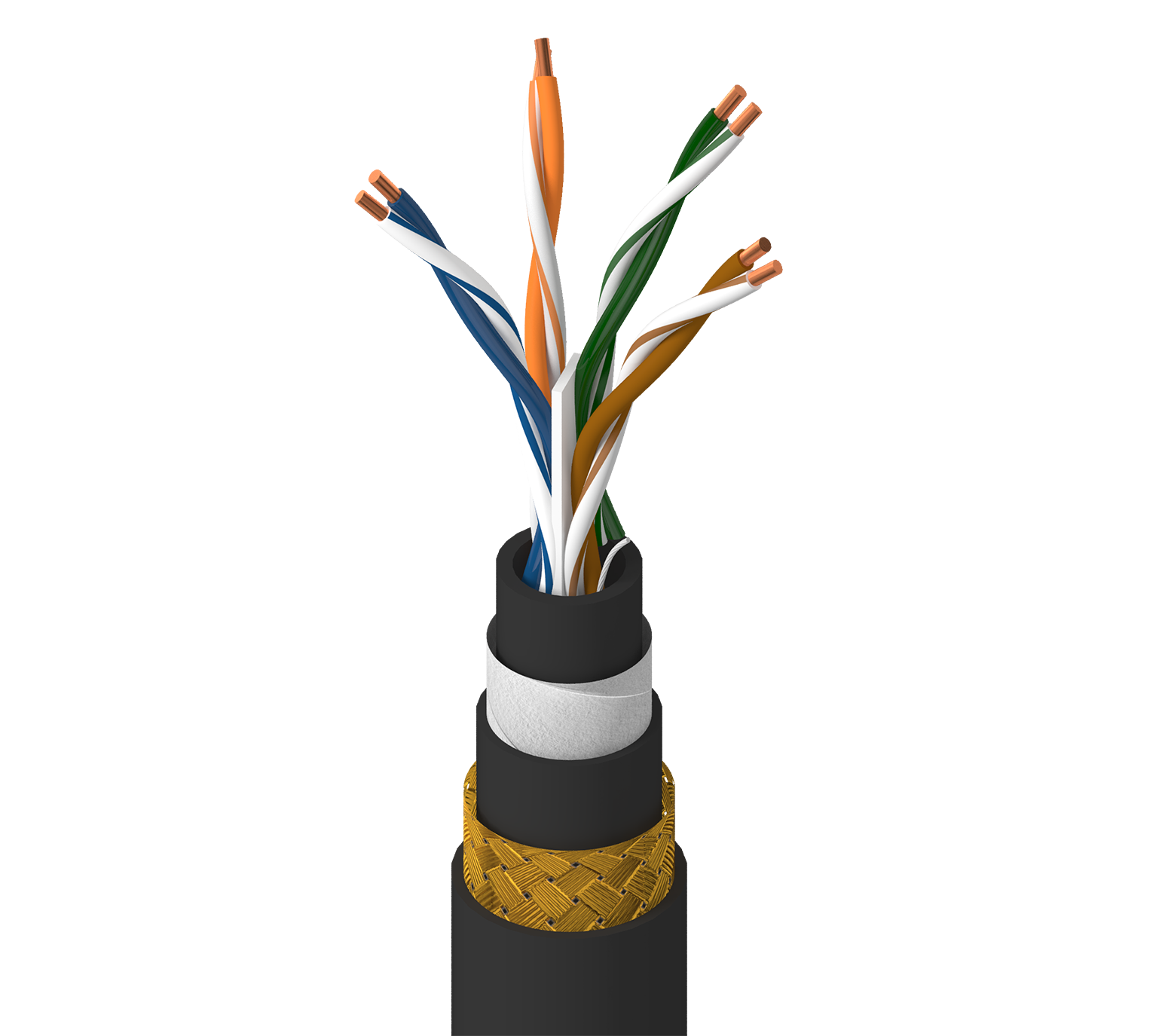

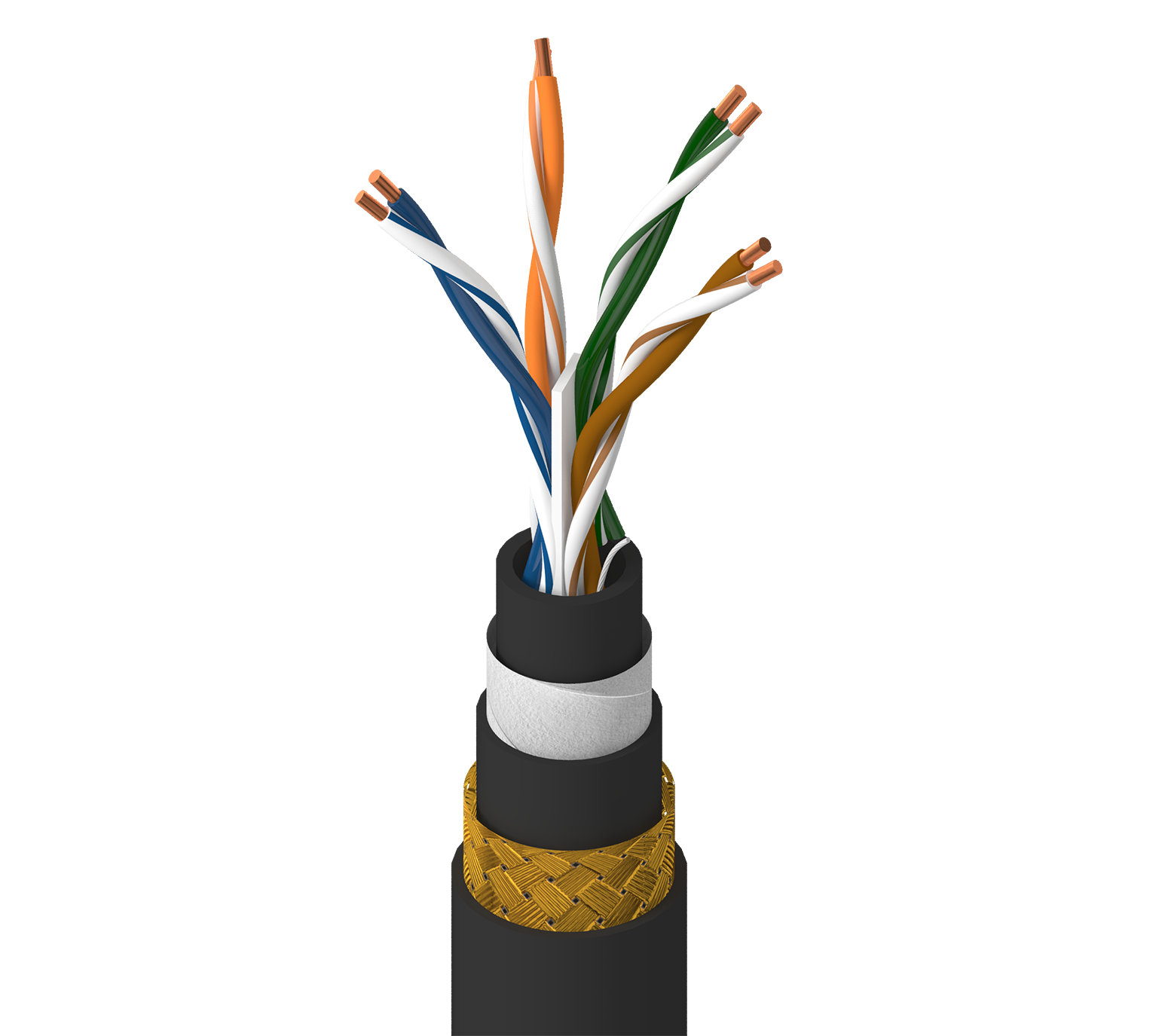

MarineTuff® 6, 4 Pr #23 Sol BC, PO Ins, LSZH Jkt, Brnz Brd Armor, LSZH Jkts, CMG-LS, ABS

Industrial Ethernet Cat 6, 4 Bonded Pair 23AWG (Solid) Bare Copper, PO Insulation, LSZH Jacket, Flame Retardant Tape, LSZH Jacket, Bronze Braid Armor, LSZH Outer Jacket, CMG-LS, ABS

  • Availability:
    Global
  • Global inventory:
    Available
777940T
  • 777940T
1 of 1
  • Specifications
  • Part numbers
  • Resources

Specifications

Report An Error

Put-Up Type

Reel

Length

305 m

Suitable Applications

Marine, shipboard, transit, transportation, outdoor, harsh environment, IoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,

Conductor

Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 23 AWG Solid BC - Bare Copper 4 4

Insulation

Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Inner Jacket

Separator Material Nom. Diameter
Aramid Tape LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.274 in (6.96 mm)
Aramid Tape LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.328 in (8.33 mm)

Armor

Armor Type & Material Armor Material Diameter Coverage
BBA - Bronze Braid Armor 0.363 in (9.22 mm) 80%

Outer Jacket

Material Material Trade Name Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) Haloarrest® 0.463 in (11.8 mm)

Overall Cable Diameter (Nominal)

0.463 in (11.8 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537 ns/100m 45 ns/100m 69%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 20 100 ± 15 100 ± 15 40.0 35.0
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.7 23 100 ± 15 100 ± 15 40.0 23.0
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 24.5 100 ± 15 100 ± 15 40.0 16.9
10 6 dB/100m 59.3 57.3 53.3 51.3 47.8 44.8 25 100 ± 15 100 ± 15 40.0 15.0
16 7.6 dB/100m 56.2 54.3 48.7 46.7 43.7 40.7 25 100 ± 15 100 ± 15 38.0 10.9
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 25 100 ± 15 100 ± 15 37.0 9.0
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 24.3 100 ± 15 100 ± 15 36.0 7.0
31.25 10.7 dB/100m 51.9 49.9 41.2 39.2 37.9 34.9 23.6 100 ± 15 100 ± 15 35.1 5.1
62.5 15.4 dB/100m 47.4 45.4 32 30 31.9 28.9 21.5 100 ± 15 100 ± 15 32.0
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 20.1 100 ± 15 100 ± 15 30.0
155 25.2 dB/100m 41.5 39.5 16.3 14.3 23.9 20.9 18.8 100 ± 20 100 ± 15 28.1
200 29.0 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 18 100 ± 20 100 ± 15 27.0
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 17.3 100 ± 20 100 ± 15 26.0

Temperature

UL Temperature Operating Installation Storage
75°C -40°C To +75°C 0°C To +60°C -40°C To +75°C

Bend Radius

Installation Min.
3.0 in (76 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

133 lbs/1000ft (198 kg/km)

Environmental Suitability

MarineIndoor/Outdoor, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance

Flammability / Reaction to Fire

UL CMG-LS, FT4, IEEE 1202

NEC / UL Compliance

Article 800

CEC / C(UL) Compliance

CMG-ST1

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Data Category

Category 6

TIA/EIA Compliance

Category 6 - TIA 568.2-D

Marine Compliance

ABS Certified

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = IEC 60332-3-22

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = Jacket only

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Jacket sequentially marked at 2 ft. intervals.

Update and Revision

Revision Number: 0.385 Revision Date: 04-02-2025

Update and Revision

Revision Number: 0.385 Revision Date: 04-02-2025
