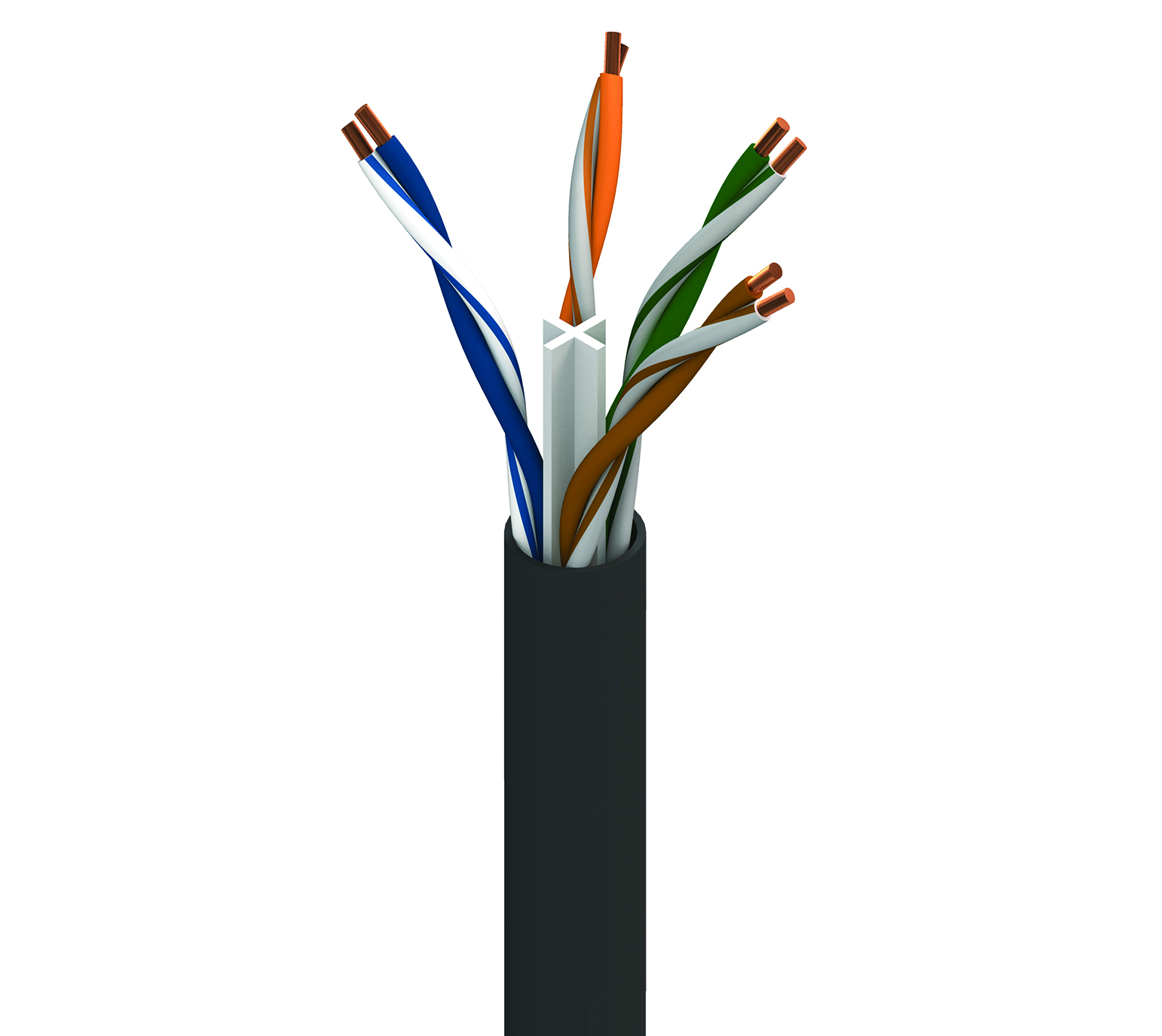

Product Number: 7969A

DataTuff® 6, 4 Bonded-Pr #22 Sol BC, PP Ins, X-spline, PVC Jkt, PLTC, CMR, CMX Outdoor

Industrial Ethernet Cat 6, 4 Bonded-Pair 22AWG (Solid) Bare Copper, PP Insulation, X-spline, PVC Outer Jacket, PLTC, CMR, CMX Outdoor

  • Availability:
    Global
  • Global inventory:
    Available
7969A
  • 7969A
1 of 1
  • Specifications
  • Part numbers
  • Resources

Specifications

Report An Error

Put-Up Type

Reel

Length

305 m

Suitable Applications

power-limited tray, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Conductor

Element Size Stranding Material No. of Pairs No. of Elements
Pair(s) 22 AWG Solid BC - Bare Copper 4 4

Insulation

Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair

Yes

Outer Jacket

Separator Material Nom. Diameter Ripcord
Center Member (Patented X-Spline®) PVC - Polyvinyl Chloride 0.335 in (8.51 mm) Yes

Overall Cable Diameter (Nominal)

0.335 in (8.51 mm)

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
56.5 Ohm/km (17.2 Ohm/1000ft) 330 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537 ns/100m 45 ns/100m 69%

High Frequency

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. TCL [dB] Min. ELTCTL [dB]
1 2.0 dB/100m 74.3 72.3 72.3 70.3 67.8 64.8 20 100 ± 15 100 ± 15 40.0 35.0
4 3.8 dB/100m 65.3 63.3 61.5 59.5 55.8 52.7 23 100 ± 15 100 ± 15 40.0 23.0
8 5.3 dB/100m 60.8 58.8 55.4 53.4 49.7 46.7 24.5 100 ± 15 100 ± 15 40.0 16.9
10 6 dB/100m 59.3 57.3 53.3 51.3 47.8 44.8 25 100 ± 15 100 ± 15 40.0 15.0
16 7.6 dB/100m 56.2 54.3 48.7 46.7 43.7 40.7 25 100 ± 15 100 ± 15 38.0 10.9
20 8.5 dB/100m 54.8 52.8 46.3 44.3 41.8 38.8 25 100 ± 15 100 ± 15 37.0 9.0
25 9.5 dB/100m 53.3 51.3 43.8 41.8 39.8 36.8 24.3 100 ± 15 100 ± 15 36.0 7.0
31.25 10.7 dB/100m 51.9 49.9 41.2 39.2 37.9 34.9 23.6 100 ± 15 100 ± 15 35.1 5.1
62.5 15.4 dB/100m 47.4 45.4 32 30 31.9 28.9 21.5 100 ± 15 100 ± 15 32.0
100 19.8 dB/100m 44.3 42.3 24.5 22.5 27.8 24.8 20.1 100 ± 15 100 ± 15 30.0
155 25.2 dB/100m 41.5 39.5 16.3 14.3 23.9 20.9 18.8 100 ± 20 100 ± 15 28.1
200 29.0 dB/100m 39.8 37.8 10.8 8.8 21.8 18.8 18 100 ± 20 100 ± 15 27.0
250 32.8 dB/100m 38.3 36.3 5.5 3.5 19.8 16.8 17.3 100 ± 20 100 ± 15 26.0

Voltage

UL Voltage Rating
300 V (PLTC, CMR/CMX-Outdoor), 600 V (AWM)

Temperature

UL Temperature Operating Installation Storage
75°C -40°C To +75°C 0°C To +60°C -40°C To +75°C

Bend Radius

Installation Min.
3.4 in (86 mm)

Max. Pull Tension

40 lbs (18 kg)

Bulk Cable Weight

51 lbs/1000ft

Environmental Suitability

Riser, Indoor, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

UL 1666 Riser CMR/CMX Outdoor

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

PLTC - CMR/CMX Outdoor

AWM Compliance

AWM 21047

CEC / C(UL) Compliance

CMR

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3, Type 4

Data Category

Category 6

TIA/EIA Compliance

Category 6 - TIA 568.2-D

ISO/IEC Compliance

11801 ed 2.2 (2011) Class E

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2017-07-10

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Notes

Jacket sequentially marked at 2 ft. intervals.

Update and Revision

Revision Number: 0.271 Revision Date: 11-06-2024

Update and Revision

Revision Number: 0.271 Revision Date: 11-06-2024

Part Numbers

Item # Color Putup Type Length Footnote
7969A 0101000 Black Reel 305 m C
7969A 0105000 Black Reel 305 m C
