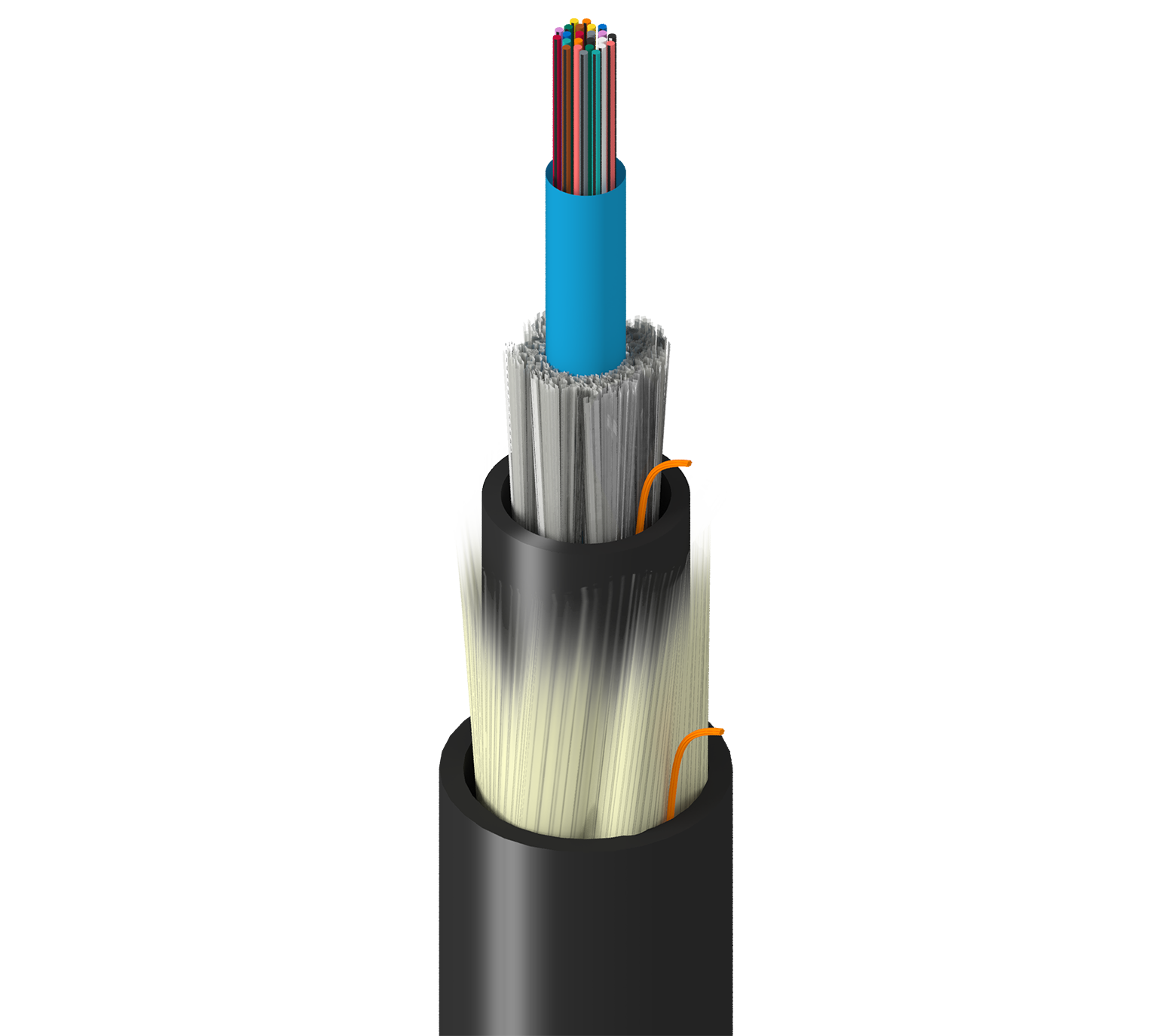

Product Number: TU-3C0-024-RX2
Tray, In+Outdoor, CLT, OM3, 24f, Gel Tube 3.8mm, RP Dbl Jkt, Blk, CPE, OFNR, Oil Res 1/2
Tray Grade, Indoor/Outdoor, Central Loose-Tube, OM3, 24 Fibers, Gel Filled Tube 3.8mm, Rodent Protected, Double Jacket, Black, CPE, OFNR, Oil Res 1 & 2
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Central Loose Tube Cable |
|---|---|
|
Suitable Applications |
Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Oil Res 1 /2, Rodent Proof |
Fiber Specifications
|
Fiber Type |
OM3 |
|---|---|
|
Fiber Core Diameter |
50/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
24 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
1 |
|---|---|
|
Fibers Per Subunit |
24 |
|
Subunit Waterblocking |
Gel Filled |
|
Subunit Diameter |
0.150 in (3.8 mm) |
|
Subunit Color |
Blue |
|
Subunit Strength Members |
Waterblocking aramid yarns |
|
Core Wrap |
Waterblocking tape |
Inner Jacket Specifications
|
Strength Member |
Waterblocking Aramid Yarns |
|---|---|
|
Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.315 in (8.0 mm) |
|
Color |
Black |
Outer Jacket Specifications
|
Strength Member |
Glass Yarns |
|---|---|
|
Jacket Material |
CPE - Chlorinated Polyethylene |
|
Nom. Diameter |
0.500 in (12.7 mm) |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1,000 m | 550 m |
| 10 Gigabit Ethernet Performance | 300 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 2000 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz.km | 500 MHz.km |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
20x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
2670 N (600 lbf) |
|
Max. Tensile Strength During Operation |
800 N (180 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
103 lbs/kft (153 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Operating Temperature Range |
-50°C to +70°C |
|
Storage Temperature Range |
-50°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Oil Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
OFNR, FT4 |
|
ICEA Compliance |
S-104-696 |
History
|
Update and Revision |
Revision Number: 0.14 Revision Date: 11-14-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.14 Revision Date: 11-14-2022 |
|---|
Part Numbers
| Item # | Color | Putup Type | UPC |
|---|---|---|---|
| TU-3C0-024-RX2N | Black | Cut to Length | 612825486572 |
