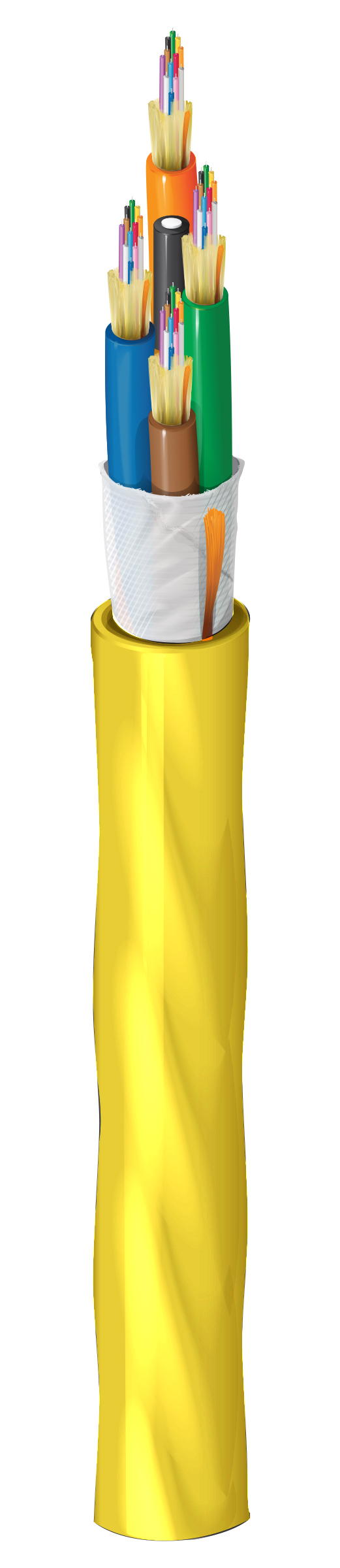

Product Number: FISD144RK
Indoor Riser OS2 Distribution 144 Fibers
FX Indoor OS2 Distribution Tight Buffer 144 Fibers OFNR Sub-Units (12F) Yellow Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Distribution Cable |
|---|---|
|
Suitable Applications |
Premise Backbone |
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2/125 µm |
|
Buffer Material |
PVC - Polyvinyl Chloride |
|
Buffer Diameter |
900 µm |
|
Fiber Count |
144 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
12 |
|---|---|
|
Fibers Per Subunit |
12 |
|
Subunit Diameter |
0.230 in (5.8 mm) |
|
Subunit Color |
Yellow |
|
Subunit Strength Members |
Aramid yarns |
|
Central Strength Member |
GRP |
|
Core Wrap |
Mylar |
Outer Jacket Specifications
|
Jacket Material |
PVC - Polyvinyl Chloride |
|---|---|
|
Nom. Diameter |
1.076 in (27.3 mm) |
|
Color |
Yellow |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.50 dB/km | 0.50 dB/km |
| Mode Field Diameter | 9.2 µm | 10.4 µm |
| 1 Gigabit Ethernet Performance | 5,000 m | -- |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
1320 N (300 lbf) |
|
Max. Tensile Strength During Operation |
400 N (90 lbf) |
|
Crush Resistance |
100 N/cm |
|
Bulk Cable Weight |
357 lbs/kft (532 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Operating Temperature Range |
-20°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65, Product Lens™ |
|
Flammability / Reaction to Fire |
OFNR, FT4 |
|
ICEA Compliance |
S-83-596 |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
History
|
Update and Revision |
Revision Number: 0.87 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.87 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | UPC |
|---|---|---|---|
| FISD144RK | Yellow | Reel | 612825372660 |
