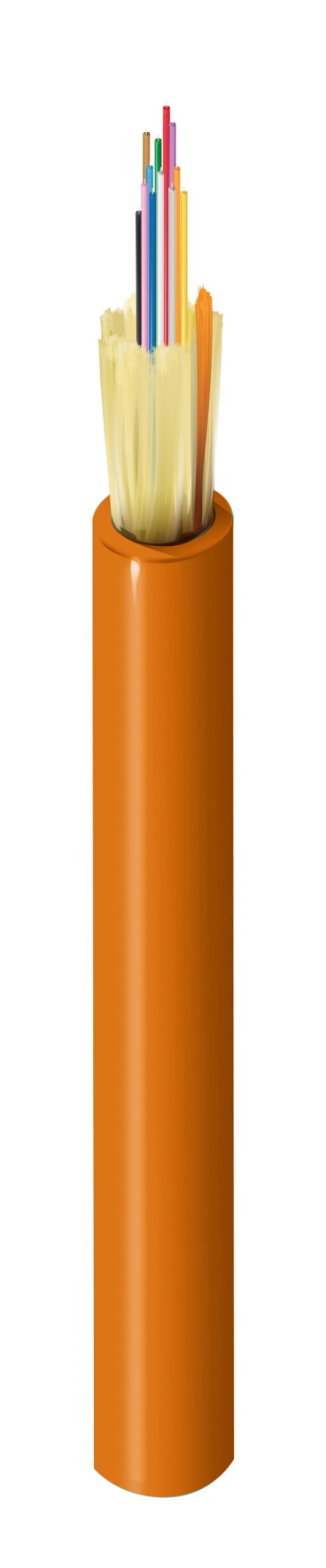

Product Number: FDSM006P2
Indoor/Outdoor Plenum, OS2, 6 Fibers, Plenum
Indoor/Outdoor, OS2, Mini-Distribution, 6 Fibers, Plenum, 3.0mm, 16 x 250um Fiber
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Composite |
|---|---|
|
Suitable Applications |
Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking |
Fiber Specifications
|
Fiber Type |
OS2 |
|---|---|
|
Fiber Core Diameter |
8.2/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
6 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
1 |
|---|---|
|
Fibers Per Subunit |
6 |
|
Subunit Diameter |
0.118 in (3.0 mm) |
|
Subunit Strength Members |
Waterblocking aramid yarns |
|
Central Strength Member |
GRP |
|
Cable Core Waterblocking |
Waterblock Tape |
Outer Jacket Specifications
|
Strength Member |
Waterblocking Aramid Yarns |
|---|---|
|
Jacket Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.380 in (9.7 mm) |
|
Number of Ripcords |
2 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.40 dB/km | 0.30 dB/km |
| Mode Field Diameter | 9.2 µm | 10.4 µm |
| 1 Gigabit Ethernet Performance | 5,000 m | -- |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
670 N (150 lbf) |
|
Max. Tensile Strength During Operation |
200 N (45 lbf) |
|
Crush Resistance |
220 N/cm |
|
Bulk Cable Weight |
33 lbs/kft (49 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
0°C to +60°C |
|---|---|
|
Operating Temperature Range |
-20°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Sunlight Resistance, Burial |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
OFNP, FT6 |
|
ICEA Compliance |
S-104-696 |
|
TIA/EIA Compliance |
ANSI/ICEA S-104-696 |
History
|
Update and Revision |
Revision Number: 0.82 Revision Date: 10-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.82 Revision Date: 10-15-2024 |
|---|
Part Numbers
| Item # | Color | UPC |
|---|---|---|
| FDSM006P2 | Black | 612825394235 |
