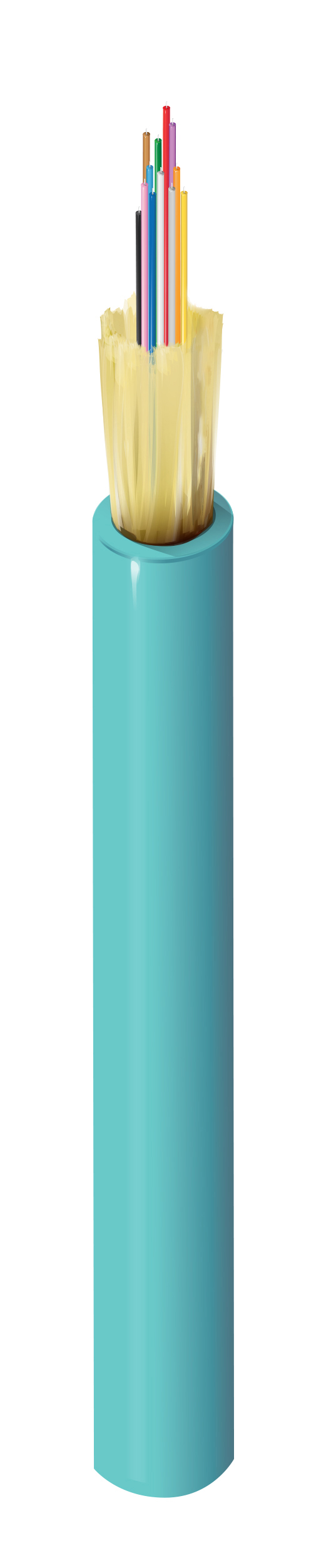

Product Number: FI3M012P2
Indoor Plenum OM3 Mini-Distribution 12 Fibers
FX Indoor OM3 Mini Distribution 12 Fibers OFNP 3.0 mm Aqua Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Indoor, data center, patching, inside cabinets, workstation equipment connections |
|---|
Fiber Specifications
|
Fiber Type |
OM3 |
|---|---|
|
Fiber Core Diameter |
50/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
12 |
|
Fiber Color Coding |
TIA-598-D |
Outer Jacket Specifications
|
Jacket Material |
PVC - Polyvinyl Chloride |
|---|---|
|
Nom. Diameter |
0.118 in (3.0 mm) |
|
Color |
Aqua |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.2 dB/km |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
20 x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10 x Cable OD |
|
Max. Tensile Strength During Installation |
220 N (50 lbf) |
|
Max. Tensile Strength During Operation |
75 N (17 lbf) |
|
Crush Resistance |
35 N/cm |
|
Bulk Cable Weight |
5.2 lbs/kft (7.81 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
0°C to +60°C |
|---|---|
|
Operating Temperature Range |
0°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
NEC / UL Compliance |
OFNP |
|
CEC / C(UL) Compliance |
FT6 |
|
ICEA Compliance |
S-83-596 |
|
Telcordia Compliance |
GR-409 |
History
|
Update and Revision |
Revision Number: 0.95 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.95 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | UPC |
|---|---|---|---|
| FI3M012P2 | Aqua | Reel | 612825288084 |
