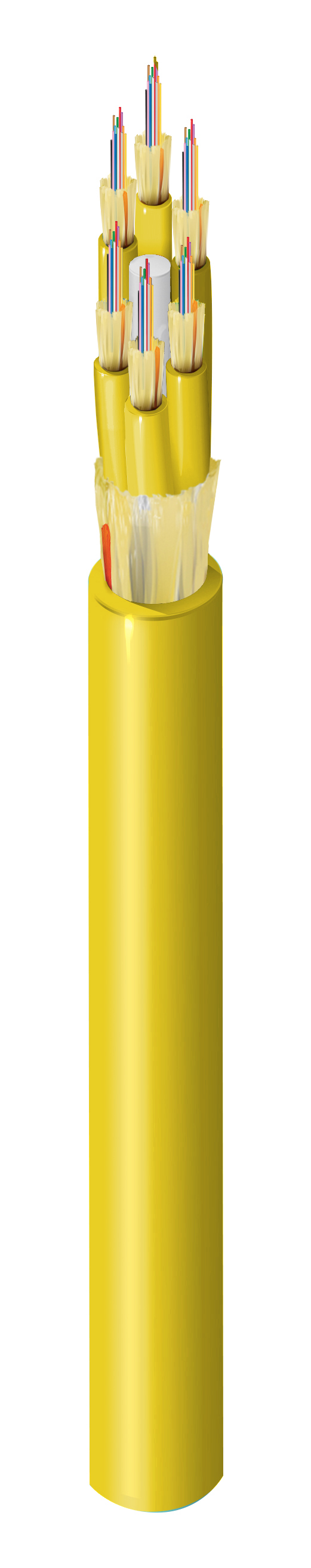

Product Number: FISM072P1
Indoor Mini-Distribution OS2 72 Fibers OFNP Sub-units 2.0 mm (12F)
FX Indoor, Mini-Distribution, OS2, 72 Fibers, OFNP, Sub-units 2.0mm (12F), Yellow Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Product Category |
Fiber Mini Distribution Cable |
|---|---|
|
Suitable Applications |
Data Center, RAN, Horizontal Backbone, Premise Backbone, Patching, Trunking |
Fiber Specifications
|
Fiber Type |
OS2, G.657.A1, G.652.D |
|---|---|
|
Fiber Core Diameter |
8.2/125 µm |
|
Fiber Diameter |
250 µm |
|
Fiber Count |
72 |
|
Fiber Color Coding |
TIA-598-D |
Cable Construction
|
Number of Active Subunits |
6 |
|---|---|
|
Fibers Per Subunit |
12 |
|
Subunit Diameter |
0.078 in (2.0 mm) |
|
Subunit Color |
Yellow |
|
Subunit Strength Members |
Aramid yarns |
|
Central Strength Member |
GRP |
Outer Jacket Specifications
|
Strength Member |
Aramid Yarns |
|---|---|
|
Jacket Material |
PVC - Polyvinyl Chloride |
|
Nom. Diameter |
0.320 in (8.2 mm) |
|
Color |
Yellow |
|
Number of Ripcords |
1 |
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.5 dB/km | 0.5 dB/km |
| 10 Gigabit Ethernet Performance | 10,000 m | 50,000 m |
Mechanical Characteristics
|
Min. Bend Radius During Installation |
15x Cable OD |
|---|---|
|
Min. Bend Radius During Operation |
10x Cable OD |
|
Max. Tensile Strength During Installation |
660 N (150 lbf) |
|
Max. Tensile Strength During Operation |
200 N (45 lbf) |
|
Crush Resistance |
110 N/cm |
|
Bulk Cable Weight |
44 lbs/kft (66 kg/km) |
|---|
Temperature Range
|
Installation Temperature Range |
0°C to +60°C |
|---|---|
|
Operating Temperature Range |
0°C to +70°C |
|
Storage Temperature Range |
-40°C to +70°C |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Flammability / Reaction to Fire |
NFPA 262, FT6 |
|
NEC / UL Compliance |
OFNP |
|
CEC / C(UL) Compliance |
OFNP |
|
ICEA Compliance |
S-83-596 |
|
TIA/EIA Compliance |
598-D |
|
Telcordia Compliance |
GR-409 |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment) |
History
|
Update and Revision |
Revision Number: 0.97 Revision Date: 03-19-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.97 Revision Date: 03-19-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | UPC |
|---|---|---|---|
| FISM072P1 | Yellow | Reel | 612825287124 |
