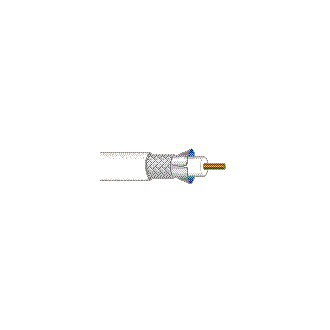

Serial Digital Coax, RG6, #18 Solid BC, Foil + 85% TC Braid, CMP
|
Suitable Applications |
Commercial Video |
|---|
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 18 | Solid | BC - Bare Copper | 0.04 in | 1 |
|
Conductor Count |
1 |
|---|
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | Teflon® | 0.168 in |
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Tri-Laminate (Alum+Poly+Alum) | Duobond® II | 100% |
| Braid | 2 | Tinned Copper (TC) | 85% |
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.231 in |
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 6.4 Ohm/1000ft | 6.4 Ohm/1000ft | 3.6 Ohm/1000ft | 3.6 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 16.3 pF/ft |
| Nominal Inductance |
|---|
| 0.103 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Minimum Return (RL) |
|---|---|
| 5-3000 MHz | 15 dB |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.24 dB/100ft |
| 3.58 MHz | 0.45 dB/100ft |
| 5 MHz | 0.55 dB/100ft |
| 7 MHz | 0.65 dB/100ft |
| 10 MHz | 0.75 dB/100ft |
| 67.5 MHz | 1.74 dB/100ft |
| 71.5 MHz | 1.78 dB/100ft |
| 88.5 MHz | 1.94 dB/100ft |
| 100 MHz | 2.1 dB/100ft |
| 135 MHz | 2.4 dB/100ft |
| 143 MHz | 2.5 dB/100ft |
| 180 MHz | 2.8 dB/100ft |
| 270 MHz | 3.4 dB/100ft |
| 360 MHz | 4 dB/100ft |
| 540 MHz | 5.2 dB/100ft |
| 720 MHz | 6.1 dB/100ft |
| 750 MHz | 6.2 dB/100ft |
| 1000 MHz | 7.3 dB/100ft |
| 1500 MHz | 9.2 dB/100ft |
| 2000 MHz | 10.9 dB/100ft |
| 2250 MHz | 11.6 dB/100ft |
| 3000 MHz | 13.7 dB/100ft |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.22 ns/ft | 83% |
| UL Voltage Rating |
|---|
| 300 V RMS |
|
UL Temp Rating |
75°C |
|---|---|
|
Operating Temperature Range |
-20°C To +75°C |
|
Bulk Cable Weight |
33.5 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
64 lbs |
|
Min. Bend Radius/Minor Axis |
2.5 in |
|
NEC/(UL) Compliance |
CMP |
|---|---|
|
CEC/C(UL) Compliance |
CMP |
|
RG Type |
6 |
|
Environmental Space |
Indoor - Plenum |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
No |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
No |
|
UL Flammability |
NFPA 262 |
|---|---|
|
CSA Flammability |
FT6 |
|
UL voltage rating |
300 V RMS |
|
Plenum (Y/N) |
Yes |
|---|
|
Non-Plenum Number |
1369R |
|---|
|
Notes |
Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
|---|
|
Update and Revision |
Revision Number: 0.320 Revision Date: 04-29-2024 |
|---|
