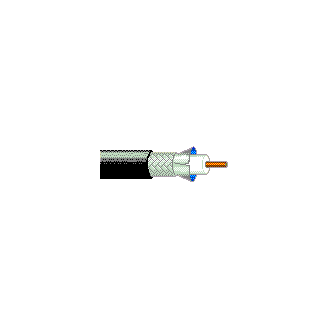

1371R

Serial Digital Coax, Sub-miniature, #23 Solid BC, Foil + 85% TC Braid, CMP

...
Video Cable, Riser-CMR, sub-minature RG59, 23 AWG solid bare copper, foam polyethylene insulation, Duofoil®; 85% tinned copper braid, PVC jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
23 Solid BC - Bare Copper 0.023 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.102 in

Table Notes

Gas Injected

Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
Braid 2 Tinned Copper (TC) 85%
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.16 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
20.1 Ohm/1000ft 20.1 Ohm/1000ft 4.6 Ohm/1000ft 4.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-3000 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.39 dB/100ft
3.58 MHz 0.78 dB/100ft
5 MHz 0.92 dB/100ft
6 MHz 1 dB/100ft
7 MHz 1.08 dB/100ft
10 MHz 1.2 dB/100ft
12 MHz 1.3 dB/100ft
25 MHz 1.8 dB/100ft
67.5 MHz 2.83 dB/100ft
71.5 MHz 3.06 dB/100ft
88.5 MHz 3.16 dB/100ft
100 MHz 3.33 dB/100ft
135 MHz 3.81 dB/100ft
143 MHz 3.92 dB/100ft
180 MHz 4.38 dB/100ft
270 MHz 5.4 dB/100ft
360 MHz 6.2 dB/100ft
540 MHz 7.7 dB/100ft
720 MHz 9.47 dB/100ft
750 MHz 9.59 dB/100ft
1000 MHz 10.5 dB/100ft
1500 MHz 13 dB/100ft
2000 MHz 15.1 dB/100ft
2250 MHz 16 dB/100ft
3000 MHz 18.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temperature Range

-30°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

15.5 lbs/1000ft

Max. Pull Tension

36 lbs

Min. Bend Radius/Minor Axis

1.5 in
Standards

NEC/(UL) Compliance

CMR

CEC/C(UL) Compliance

CMR

RG Type

Mini 59

Applicable Environmental and Other Programs

Environmental Space

Indoor - Riser

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

No

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1666 Vertical Shaft

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Plenum Number

1371P

History

Update and Revision

Revision Number: 0.367 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
1371R 010500 Black Reel 500 ft 612825113911
1371R 0101000 Black Reel 1,000 ft 612825113904
1371R 006500 Blue, Light Reel 500 ft 612825113836
1371R 0061000 Blue, Light Reel 1,000 ft 612825113829
1371R 001500 Brown Reel 500 ft 612825113751
1371R 0011000 Brown Reel 1,000 ft 612825113744
1371R 008500 Gray Reel 500 ft 612825113874
1371R 0081000 Gray Reel 1,000 ft 612825113867
1371R N3U500 Green, Mil Reel 500 ft 612825113737
1371R N3U1000 Green, Mil Reel 1,000 ft 612825113720
1371R 003500 Orange Reel 500 ft 612825113799
1371R 0031000 Orange Reel 1,000 ft 612825113782
1371R 002500 Red Reel 500 ft 612825113775
1371R 0021000 Red Reel 1,000 ft 612825113768
1371R 007500 Violet Reel 500 ft 612825113850
1371R 0071000 Violet Reel 1,000 ft 612825113843
1371R 009500 White Reel 500 ft 612825113898
1371R 0091000 White Reel 1,000 ft 612825113881
1371R 004500 Yellow Reel 500 ft 612825113812
1371R 0041000 Yellow Reel 1,000 ft 612825113805
