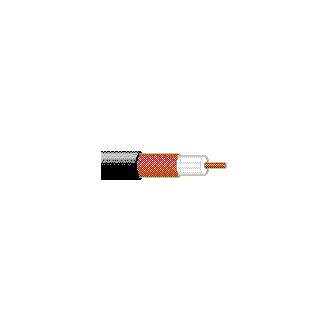

Analog Video, RG59, #23 Solid BCCS, 95% BC Braid, PVC Jacket, CMX
| AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|
| 23 | Solid | BCCS - Bare Copper Covered Steel | 0.023 in | 1 |
|
Conductor Count |
1 |
|---|
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene | 0.146 in |
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride (Non-Contaminating) | 0.241 in |
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 49 Ohm/1000ft | 49 Ohm/1000ft | 2.6 Ohm/1000ft | 2.6 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 20.5 pF/ft |
| Nominal Inductance |
|---|
| 0.115 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.6 dB/100ft |
| 10 MHz | 1.1 dB/100ft |
| 50 MHz | 2.4 dB/100ft |
| 100 MHz | 3.4 dB/100ft |
| 200 MHz | 4.9 dB/100ft |
| 400 MHz | 7 dB/100ft |
| 700 MHz | 9.7 dB/100ft |
| 900 MHz | 11.1 dB/100ft |
| 1000 MHz | 12 dB/100ft |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.54 ns/ft | 66% |
| Non-UL Voltage Rating | UL Voltage Rating |
|---|---|
| 1700 V RMS | 150 V RMS |
|
Non-UL Temp Rating |
60°C |
|---|---|
|
Operating Temperature Range |
-40°C To +60°C |
|
Bulk Cable Weight |
36 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
78 lbs |
|
Min. Bend Radius/Minor Axis |
2.5 in |
|
NEC/(UL) Compliance |
CMX |
|---|---|
|
CEC/C(UL) Compliance |
CMX |
|
UL AWM Style Compliance |
AWM 1354 (30 V 60°C) |
|
CPR Euroclass |
Eca |
|
RG Type |
59B |
|
Series Type |
59 |
|
Military Compliance |
Mil-C-17D |
|
Environmental Space |
Indoor/Outdoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
Yes |
|
UL Flammability |
VW-1 |
|---|---|
|
IEC Flammability |
IEC 60332-1-2 |
|
UL voltage rating |
150 V RMS |
|
Plenum (Y/N) |
No |
|---|
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
|
Update and Revision |
Revision Number: 0.412 Revision Date: 04-29-2024 |
|---|
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 8263 010U500 | Black | UnReel | 500 ft | 612825197515 |
| 8263 0101000 | Black | Reel | 1,000 ft | 612825356004 |
| 8263 010U1000 | Black | UnReel | 1,000 ft | 612825358718 |
