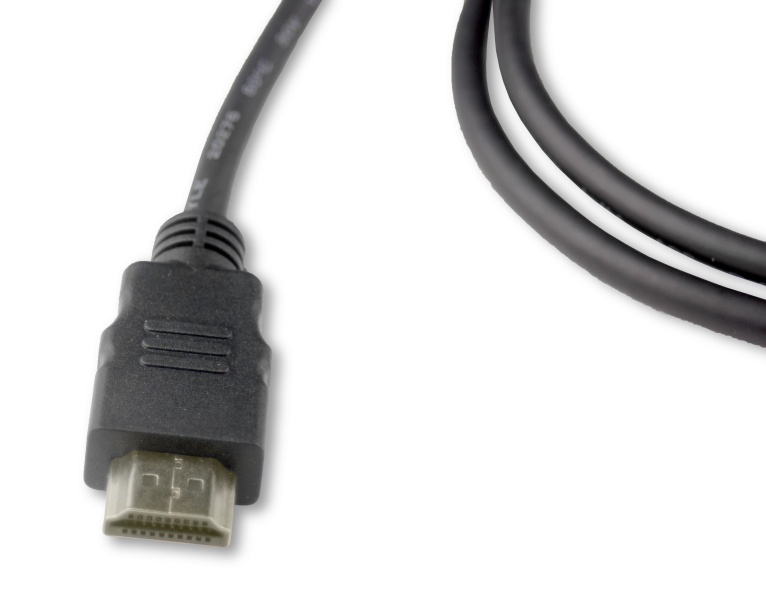

Product Number: HDE Series High Speed HDMI
High Speed HDMI
High Speed Ethernet Capable HDMI Cable Assembly, supports 1080p @ 60Hz, 4K UHD @ 30Hz (5 meter lengths or less), 3D, audio return channel & DTS-HD master audio, HDMI-CEC & dual viewing. Connector HDMI type A to type A with gold plating.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital Signage, Computer Monitors, Projectors, Gaming Consoles, DVD Players |
|---|
Physical Characteristics (Overall)
Outer Shield
| Type | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| Braid | Tinned Copper (TC) | 80% |
Outer Jacket
| Element | Material | Nominal Diameter |
|---|---|---|
| 2ft - 10ft | PVC - Polyvinyl Chloride | .236 in |
| 15ft - 20m | PVC - Polyvinyl Chloride | .287 in |
Electrical Characteristics
Voltage
| Voltage Rating [V] |
|---|
| 30V |
|
Performance Footnote2 |
7m-20m* Connector 2 is HDMI Type A w/PCB, 7m-20m & 25ft-50ft are active and directional. |
|---|
Temperature Range
|
Operating Temperature Range |
0°C To +80°C |
|---|
Mechanical Characteristics
|
Max. Pull Tension |
18 lbs |
|---|
Termination Interface
| Connection |
|---|
| HDMI Type A |
Standards
|
UL Rating |
AWM 20276 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
VW-1 |
|---|
History
|
Update and Revision |
Revision Number: 0.42 Revision Date: 11-09-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.42 Revision Date: 11-09-2022 |
|---|
Part Numbers
| Item # | Color | Length |
|---|---|---|
| HDE001MB | Black | 1 m |
| HDE002MB | Black | 2 m |
| HDE003MB | Black | 3 m |
| HDE005MB | Black | 5 m |
