Product Number: 4794RMBUHD3
12 GHz Micro BNC Crimp Connector

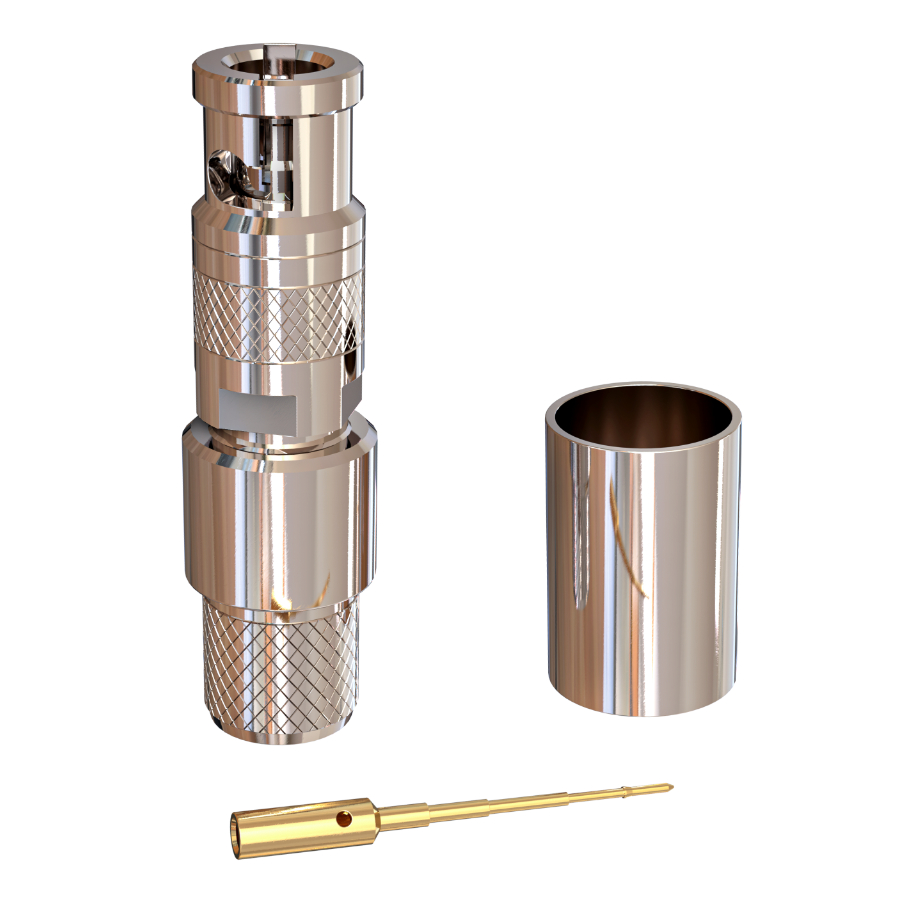

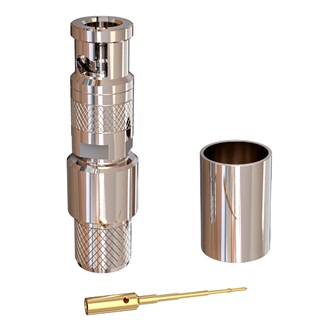

Series 7, 12 GHz, Ultra High Definition, Micro BNC, 3 piece crimp connector
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
HD-SDI, UHD-SDI, Video, Digital Video, SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P |
|---|
Physical Characteristics (Overall)
|
Packaging |
50 per package |
|---|---|
|
Number of Pieces |
3 |
|
Weight |
0.40kgs / 0.886lbs per 50 pack |
Electrical Characteristics
|
Electrical Characteristics Notes |
SMPTE 2082-1 Return Loss or better |
|---|
Mechanical Characteristics
|
Footprint/Type |
Coax |
|---|---|
|
Connector Interface Type |
Micro BNC |
|
Gender |
Male - plug |
|
Connector Series Name |
UHD |
|
Locking |
No |
|
Tool Compatibility |
BB3PHCT (crimp) & BB3PHCTD5 (crimp) |
|
Termination Type |
Crimp |
|
Cable Center Conductor Diameter Limits |
0.0512 - 0.0531 in |
|---|---|
|
Cable Dielectric Diameter Limits |
0.2244 - 0.2303 in |
|
Cable Outer Jacket Diameter Limits |
0.3189 - 0.3307 in |
Standards
|
Series Type |
7 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
Suitability
|
Suitability - Indoor |
Yes |
|---|---|
|
Suitability - Outdoor |
No |
Plenum/Non-Plenum
|
Plenum (Y/N) |
Yes |
|---|
History
|
Update and Revision |
Revision Number: 0.17 Revision Date: 11-09-2022 |
|---|
Information
|
Update and Revision |
Revision Number: 0.17 Revision Date: 11-09-2022 |
|---|
Part Numbers
| Item # | UPC |
|---|---|
| 4794RMBUHD3 B50 | 612825489139 |
