Product Number: 10GX KEYCONNECT COUPLERS

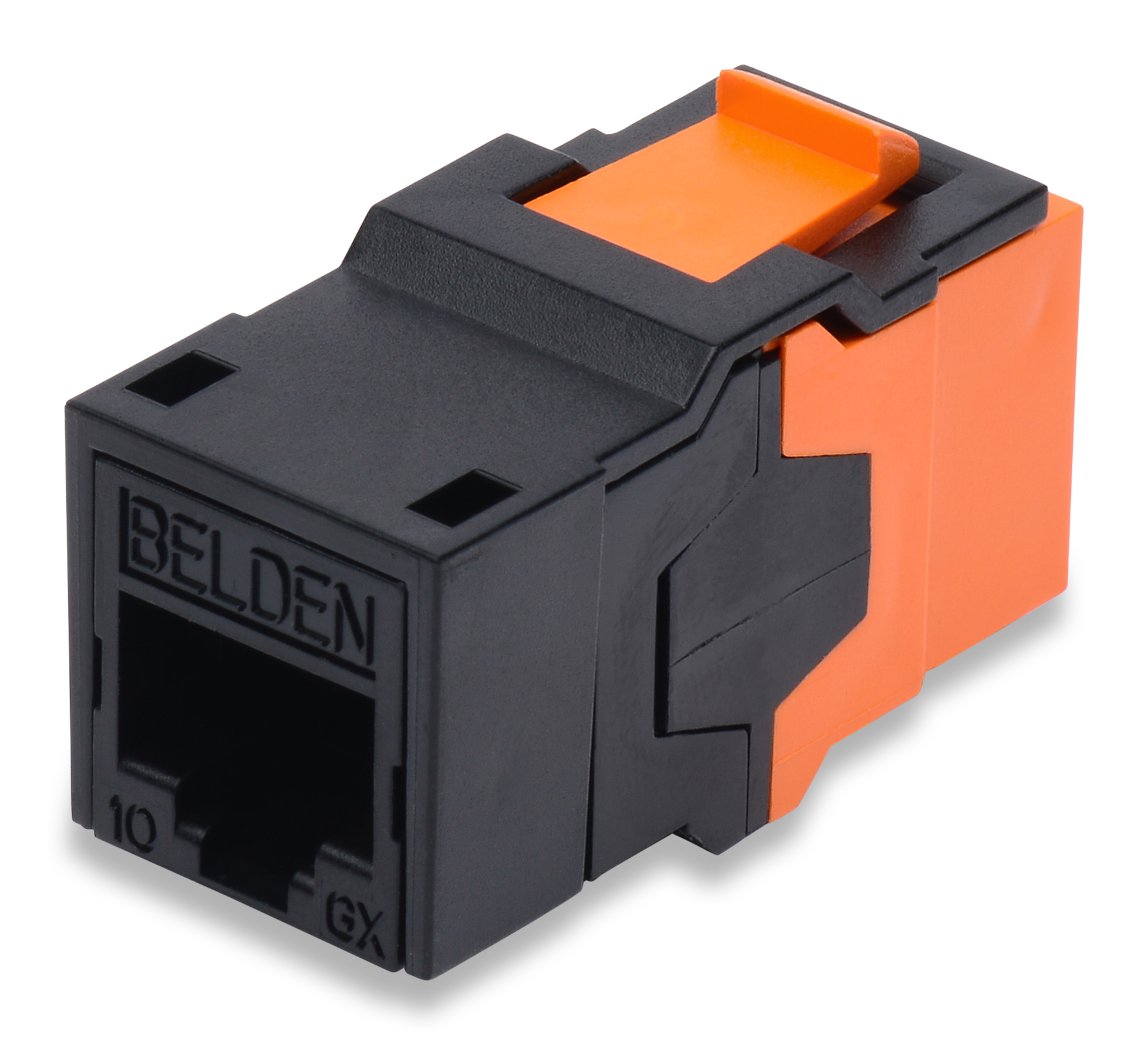

10GX RJ45 Coupler, KeyConnect Style
CAT6A KeyConnect Jacks are available in several colors.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
IBDN System 10GX, TIA Category 6A, 10GBASE-T |
|---|
Physical Characteristics (Overall)
|
Height |
0.895 in |
|---|---|
|
Width |
0.692 in |
|
Depth |
1.522 in |
|
Wiring Scheme |
T568A/B-T568A/B |
|
Packaging |
Individually packaged in a clear plastic bag. |
|
Weight |
0.380 lbs |
Connectors
Materials
| Description | Material | Type |
|---|---|---|
| Front Connection | Flexible PCB with 50 µ inch Gold over Nickel | Flexible PCB |
| Rear Connection | Flexible PCB with 50u inch Gold over Nickel | Flexible PCB |
| Connector Body | Plastic - UL94V-0 |
Electrical Characteristics
|
Current Rating |
1.500 A |
|---|---|
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
1,000V RMS @ 60 Hz for 1 minute |
Temperature Range
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-40°C to +70°C |
|
Operating Temperature Range |
-10°C to +60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|---|
|
Plug /Jack Compatibility |
RJ45 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
Mated Connection |
|
Termination Rear Connection Durability |
750 cycles |
|
Connector/Hardware Retention |
20 lbs |
Standards
|
Data Category |
Category 6A |
|---|---|
|
TIA/EIA Compliance |
ISO/IEC 11801:2002 Amendment 2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
Safety Listing |
ACA, c(UL)us Listed |
|---|
Related Part Numbers
|
Related Parts |
10GX Coupler Patch Panels |
|---|
History
|
Update and Revision |
Revision Number: 0.309 Revision Date: 05-10-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.309 Revision Date: 05-10-2023 |
|---|
Part Numbers
| Item # | Color | Packaging |
|---|---|---|
| AX104024 | Black | Single Pack |
| AX104019 | Blue | Single Pack |
| AX104023 | Electric White | Single Pack |
| AX104018 | Green | Single Pack |
