CAT6+ KEYCONNECT COUPLERS

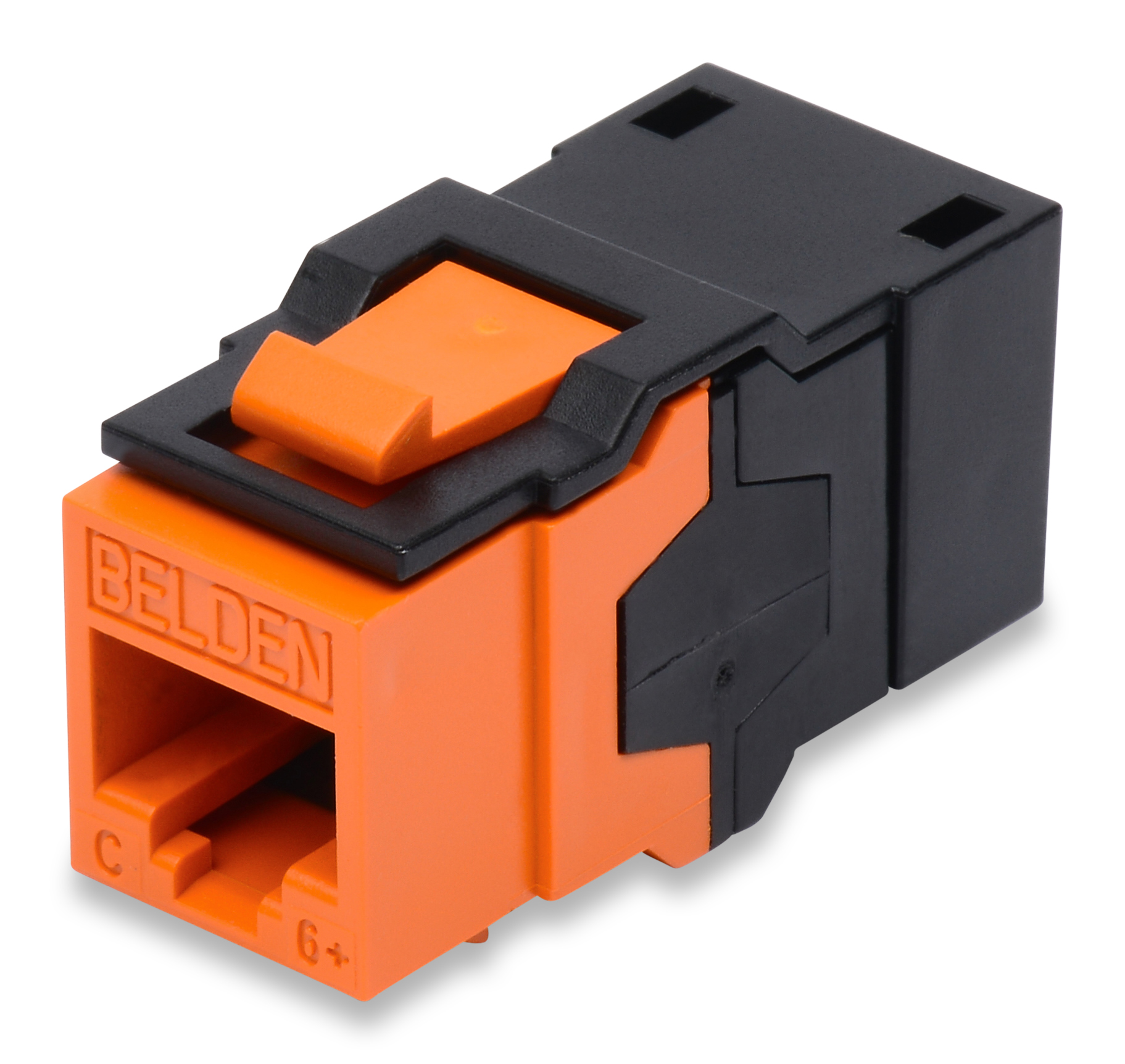

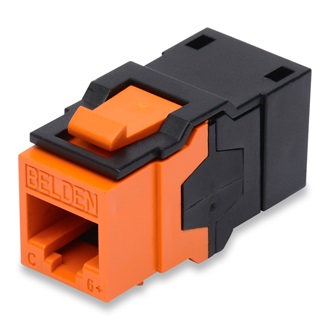

CAT6+ RJ45 Coupler, KeyConnect Style

...
CAT6+ KeyConnect Jacks are available in several colors.
Get Product Alerts

Specifications
Product Overview

Suitable Applications

IBDN System CAT6+, TIA Category 6

Physical Characteristics (Overall)

Height

0.895 in

Width

0.692 in

Depth

1.522 in

Wiring Scheme

T568A/B-T568A/B

Packaging

Individually packaged in a clear plastic bag.

Weight

0.380 lbs

Connectors
Materials
Description Material Type
Front Connection Flexible PCB with 50 µ inch Gold over Nickel Flexible PCB
Rear Connection Flexible PCB with 50u inch Gold over Nickel Flexible PCB
Connector Body Plastic - UL94V-0
Electrical Characteristics

Dielectric Strength

1,000V RMS @ 60 Hz for 1 minute

Current Rating

1.500 A

Insulation Resistance

500 M-Ohm Minimum

Max Contact Resistance

20 mOhm

Temperature Range

Installation Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C to +70°C

Operating Temperature Range

-10°C to +60°C

Mechanical Characteristics

Footprint/Type

KeyConnect

Plug /Jack Compatibility

RJ45

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 cycles

Termination Rear Connection

Mated Connection

Termination Rear Connection Durability

750 cycles

Connector/Hardware Retention

20 lbs

Standards

Data Category

Category 6

TIA/EIA Compliance

Category 6 - TIA 568.2-D, ISO/IEC 11801:2002 Ed.2

Other Standards

FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2002/95/EC (RoHS)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

c(UL)us Listed

Related Part Numbers

Related Parts

CAT6+ Coupler Patch Panels

History

Update and Revision

Revision Number: 0.307 Revision Date: 05-10-2023

Part Numbers
Item # Color Packaging
AX104215 Black Single Pack
AX104210 Blue Single Pack
AX104214 Electric White Single Pack
AX104213 Gray Single Pack
AX104209 Green Single Pack
AX104206 Orange Single Pack
AX104211 Purple Single Pack
AX104207 Red Single Pack
AX104208 Yellow Single Pack
