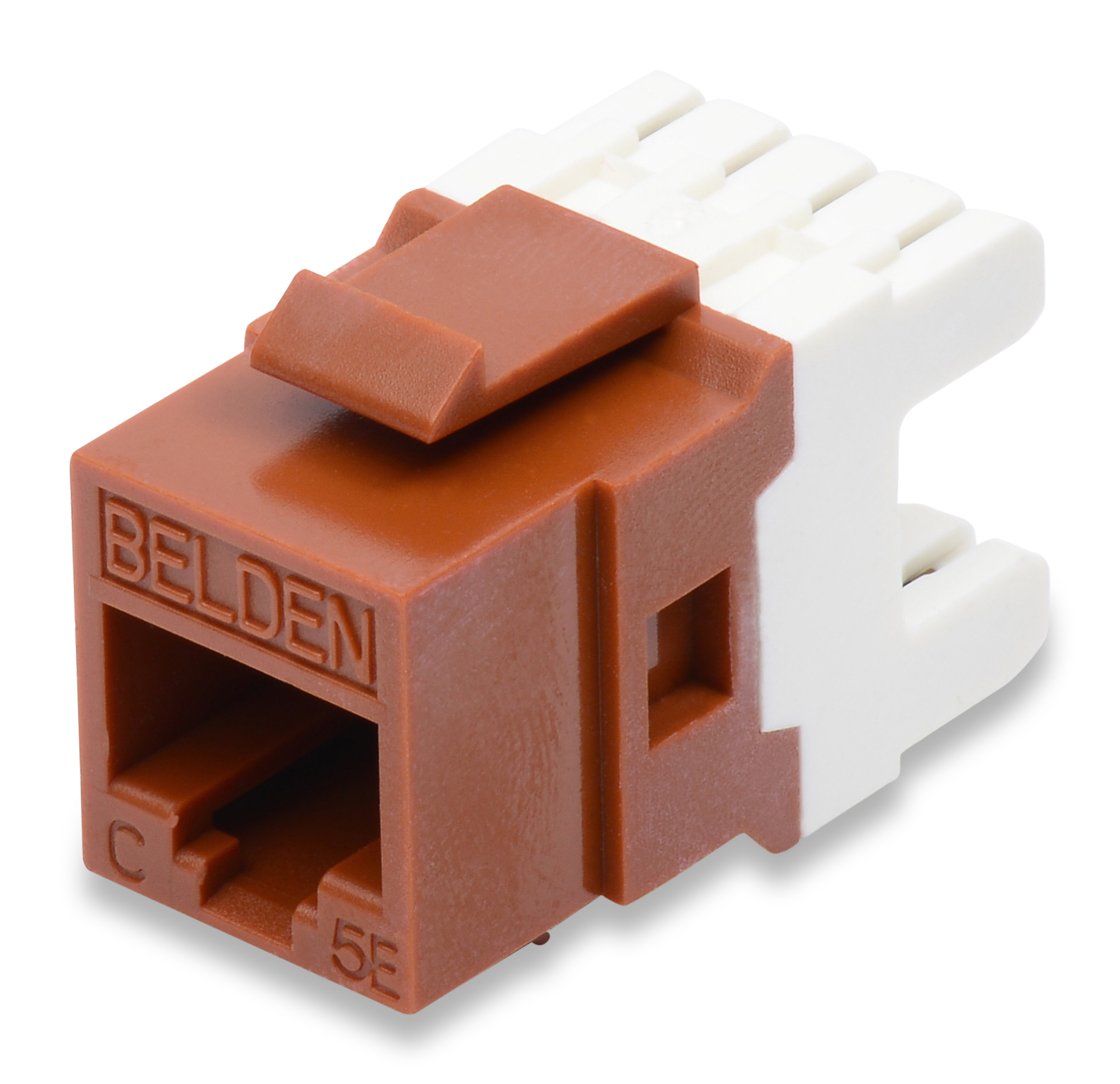

CAT5E Modular Jack, RJ45, KeyConnect Style
|
Suitable Applications |
IBDN System 1200, TIA Category 5E, ISO Class D, 1000 BASE-T |
|---|
|
Height |
0.88 in |
|---|---|
|
Width |
0.64 in |
|
Depth |
1.29 in |
|
Wiring Scheme |
T568A/B |
|
Packaging |
Individually packaged in a plastic bag. Standard pack of 50 units. |
|
Weight |
0.014 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Copper Alloy with 50 µ inch Gold over Nickel | Lead Frame |
| Rear Connection | Copper Alloy with Nickel Plating | IDC |
| Connector Body | Plastic - UL940V-0 |
|
Dielectric Strength |
1,000V RMS @ 60 Hz for 1 minute |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 mOhm |
|
Installation Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-40°C to +70°C |
|
Operating Temperature Range |
-10°C to +60°C |
|
Footprint/Type |
KeyConnect |
|---|---|
|
Tool Compatibility |
Belden 110 Connecting Tool, MediaFlex Termination Station |
|
Plug /Jack Compatibility |
RJ45, RJ11 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
1,000 cycles |
|
Termination Rear Connection |
Gas Tight IDC Connection |
|
Termination Rear Connection Durability |
20 terminations |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
|
Data Category |
Category 5e |
|---|---|
|
TIA/EIA Compliance |
Category 5 - ISO/IEC 11801:2002 Ed.2 |
|
Other Standards |
FCC Part 68, Subpart F, IEC 60603-7 |
|
Third Party Performance Verification |
ETL - Verified Category 5e |
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
|
Safety Listing |
ACA, c(UL)us Listed |
|---|
|
Related Parts |
Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
|---|
|
Included Parts |
1 T-Bar |
|---|---|
|
Notes |
Please see Installation Guide PX103329 |
|
Update and Revision |
Revision Number: 0.359 Revision Date: 05-10-2023 |
|---|
| Item # | Color | Packaging |
|---|---|---|
| AX101308 | Almond | Single Pack |
| AX101308-B24 | Almond | Bulk Pack (24) |
| AX101310 | Black | Single Pack |
| AX101310-B24 | Black | Bulk Pack (24) |
| AX104186 | Blue | Single Pack |
| AX104186-B24 | Blue | Bulk Pack (24) |
| AX104188 | Brown | Single Pack |
| AX104188-B24 | Brown | Bulk Pack (24) |
| AX101309 | Electric White | Single Pack |
| AX101309-B24 | Electric White | Bulk Pack (24) |
| AX101307 | Gray | Single Pack |
| AX101307-B24 | Gray | Bulk Pack (24) |
| AX104185 | Green | Single Pack |
| AX104185-B24 | Green | Bulk Pack (24) |
| AX103079 | Ivory | Single Pack |
| AX103079-B24 | Ivory | Bulk Pack (24) |
| AX104182 | Orange | Single Pack |
| AX104182-B24 | Orange | Bulk Pack (24) |
| AX104187 | Purple | Single Pack |
| AX104187-B24 | Purple | Bulk Pack (24) |
| AX104183 | Red | Single Pack |
| AX104183-B24 | Red | Bulk Pack (24) |
| AX101315 | TIA Blue | Single Pack |
| AX101317 | TIA Brown | Single Pack |
| AX101314 | TIA Green | Single Pack |
| AX101311 | TIA Orange | Single Pack |
| AX101316 | TIA Purple | Single Pack |
| AX101312 | TIA Red | Single Pack |
| AX101313 | TIA Yellow | Single Pack |
| AX104184 | Yellow | Single Pack |
| AX104184-B24 | Yellow | Bulk Pack (24) |
