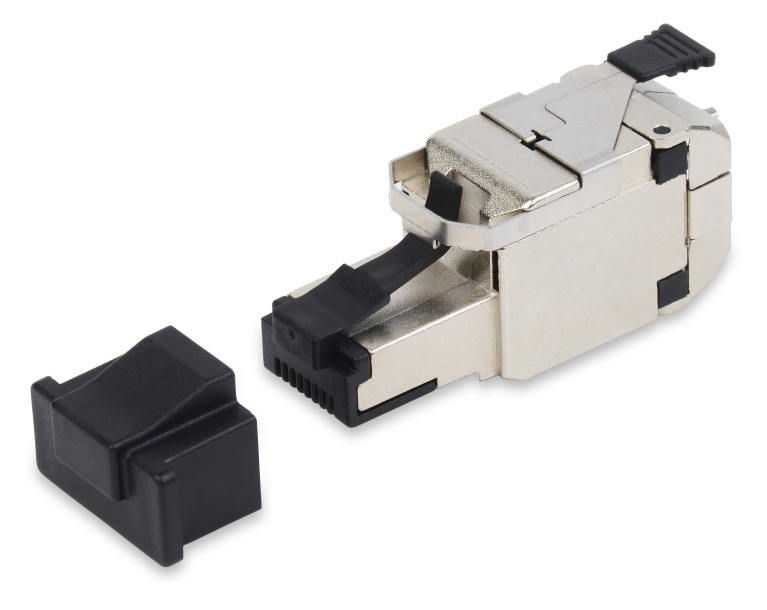

Product Number: REVConnect 10GX Shielded Plugs
REVConnect 10GX STP Field Mount Plug, Metal
REVConnect 10GX Shielded Plugs are available in single packs and 24 bulk packs.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
10GX Shielded System, TIA Screened Category 6A , ISO Class EA, 10GBASE-T |
|---|
Physical Characteristics (Overall)
|
Height |
0.73 in |
|---|---|
|
Width |
1.1 in |
|
Depth |
1.81 in |
|
Wiring Scheme |
T568A/B |
|
Packaging |
Individually packaged in a plastic bag. |
|
Weight |
0.048 lbs |
Electrical Characteristics
|
Dielectric Strength |
1,000V RMS @ 60 Hz for 1 minute (Signals to Ground) |
|---|---|
|
Current Rating |
1.500 A |
|
Insulation Resistance |
500 M-Ohm Minimum |
|
Max Contact Resistance |
20 mOhm |
|
Termination Resistance |
2.5 mOhm |
Temperature Range
|
Installation Temperature Range |
-10°C To +60°C |
|---|---|
|
Storage Temperature Range |
-40°C To +70°C |
|
Operating Temperature Range |
-10°C To +60°C |
Mechanical Characteristics
|
Footprint/Type |
KeyConnect |
|---|---|
|
Tool Compatibility |
RVUTT01 Termination Tool |
|
Plug /Jack Compatibility |
RJ45 |
|
Termination Front Connection |
Mated Connection |
|
Termination Front Connection Durability |
750 cycles |
|
Termination Rear Connection |
Mated Connection |
|
Termination Rear Connection Durability |
200 cycles |
|
Cable/Connector Retention |
15 lbs. |
|
Connector/Hardware Retention |
20 lbs |
|
Plug/Connector Retention |
11.250 lbs |
Standards
|
UL Rating |
UL94V-0 |
|---|---|
|
Data Category |
Category 6A |
|
TIA/EIA Compliance |
Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2 |
|
IEEE Compliance |
Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W) |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|---|
|
EU Directive 2002/95/EC (RoHS) |
Yes |
|
MII Order #39 (China RoHS) |
EUP 50 |
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
UL2043 Air Handling Spaces |
|---|---|
|
Safety Listing |
c(UL)us Listed |
Related Part Numbers
|
Related Parts |
Refer to REVConnect WAP - CAMERA Compatibility Guide |
|---|
Product Notes
|
Notes |
Please see Installation Guide PX106435. |
|---|
History
|
Update and Revision |
Revision Number: 0.309 Revision Date: 08-08-2023 |
|---|
Information
|
Update and Revision |
Revision Number: 0.309 Revision Date: 08-08-2023 |
|---|
Part Numbers
| Item # | Color | Packaging | Insulated Wire Diameter |
|---|---|---|---|
| RVAEFPSME-B24 | Metal | Bulk Pack of 24 | 1.3mm up to 1.45mm |
| RVAFPSME-B24 | Metal | Bulk Pack of 24 | 0.9mm up to 1.3mm |
| RVAEFPSME-S1 | Metal | Single Pack | 1.3mm up to 1.45mm |
| RVAFPSME-S1 | Metal | Single Pack | 0.9mm up to 1.3mm |
