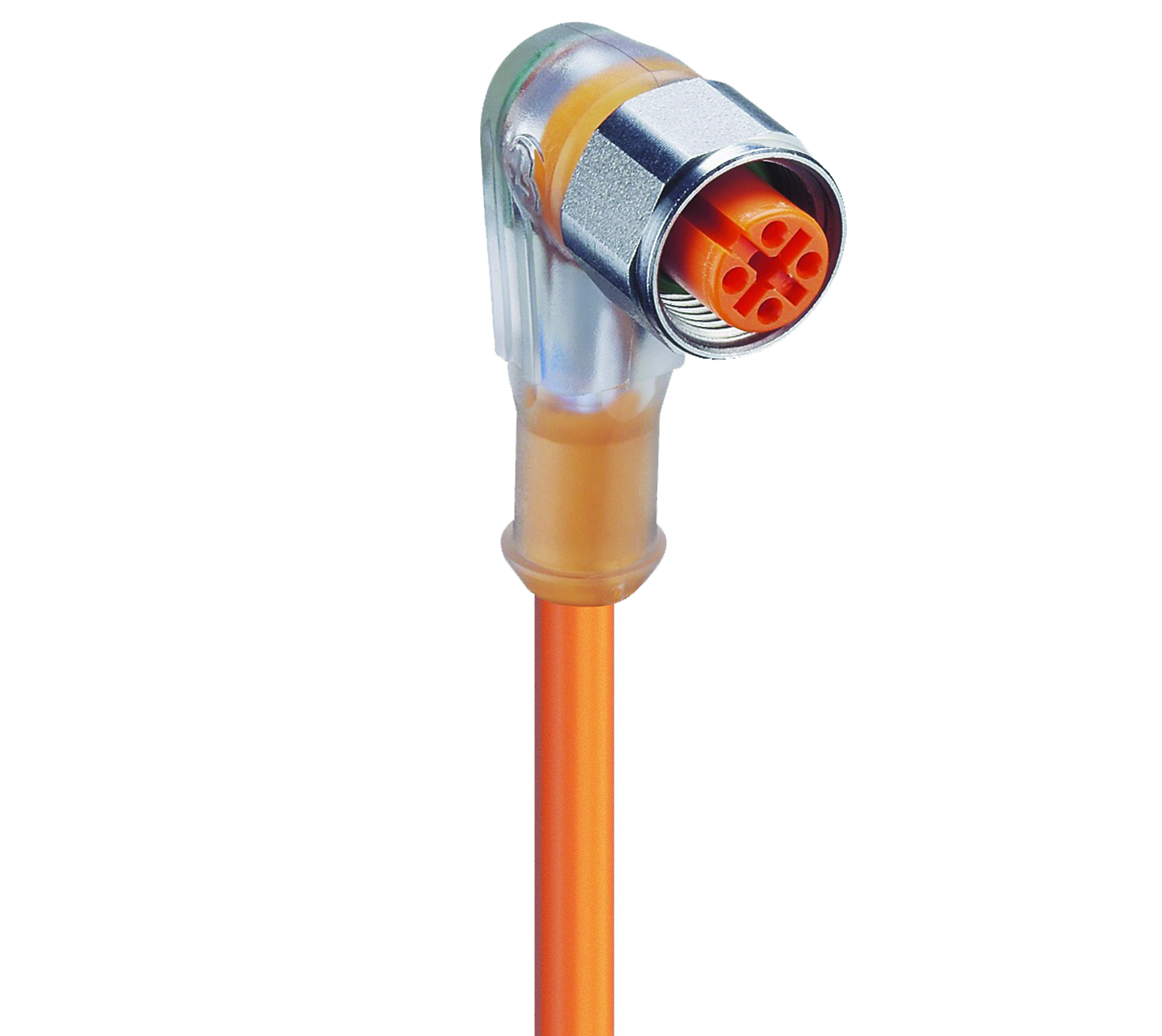

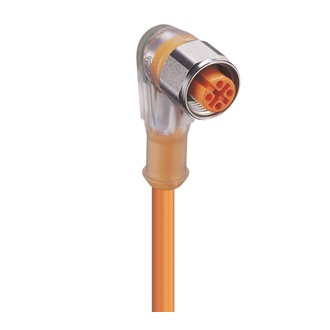

M12 F&B (PVC) Sensor/Actuator Single-Ended Cordset: Female, angled, 4-pin, A-coded, transparent body, 10-30 V DC, 4 A, with 2xLEDs (PNP); PVC orange cable, 3-wires, 0.34 mm²
| Pin 1 | Pin 2 | Pin 3 | Pin 4 |
|---|---|---|---|
| brown | n.c. | blue | black |
|
Product Family |
Sensor / Actuator Connectors |
|---|---|
|
Product Sub Family |
M12 F&B (PVC) |
|
Connector Type |
Cordset, single ended |
|
Type of Contact / Gender |
Female |
|
Connector Design |
Angled |
|
Number of Pins |
4 |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
Coupling Nut |
|
Rated Voltage |
30 V |
|
Rated Impulse Voltage |
0.8 kV |
|
Operating Voltage |
10-30 V DC |
|
Rated Current* |
4 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 25 °C - + 50 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-101 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuSn |
|---|---|
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PVC |
|
Contact Bearer Color |
Orange |
|
Molded Body Material |
PVC |
|
Molded Body Color |
Transparent |
|
Attachment Material |
Stainless Steel |
|
O-Ring Material |
EPDM, black |
|
Function Indicator |
2xLEDs (PNP) |
|---|---|
|
Fastening Torque (Attachment) |
M 12x1: (50-60) Ncm, hand-tight |
|
Cable Number |
006 |
|---|---|
|
Conductor Size |
0.34 mm² |
|
Number of Wires |
3 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Cycles (Bending) |
˃ 1 M |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PVC |
|
Cable Jacket Color |
orange |
|
Cable Diameter D |
ø 5.0 ± 0.2 mm |
|
Wire Insulation Material |
PVC |
|
Insulated Wire Diameter |
ø 1.50 mm |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Flex Installation) |
+ 5 °C - + 90 °C (UL: + 80 °C) |
|
Ambient Temperature (Drag Chain Inst) |
+ 5 °C - + 60 °C |
|
UL Cable Type |
AWM: 2464 |
|
Flammability Class (Cable Jacket) |
DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1 |
|
Cable Characteristics |
Free of lacquer wetting disturbing substances; Exclusion of silicone |
|
RoHS Compliant |
yes |
|---|
|
Oil Resistance |
Good chemical and oil resistance |
|---|
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|
Note |
Do not connect or disconnect under load. |
| Item # | Item Description | Cable Length | Rated Current |
|---|---|---|---|
| 13862 | PRKWT/LED A 4-3-06/5 M | 5 m | 4 A |
| 13863 | PRKWT/LED A 4-3-06/2 M | 2 m | 4 A |
| 13864 | PRKWT/LED A 4-3-06/10 M | 10 m | 4 A |
| 13866 | PRKWT/LED A 4-3-06/15 M | 15 m | 4 A |
| 13872 | PRKWT/LED A 4-3-06/25 M | 25 m | 4 A |
| 55352 | PRKWT/LED A 4-3-06/50 M | 50 m | 4 A |
| 96056 | PRKWT/LED A 4-3-06/20 M | 20 m | 4 A |
