Product Number: GSA 3000

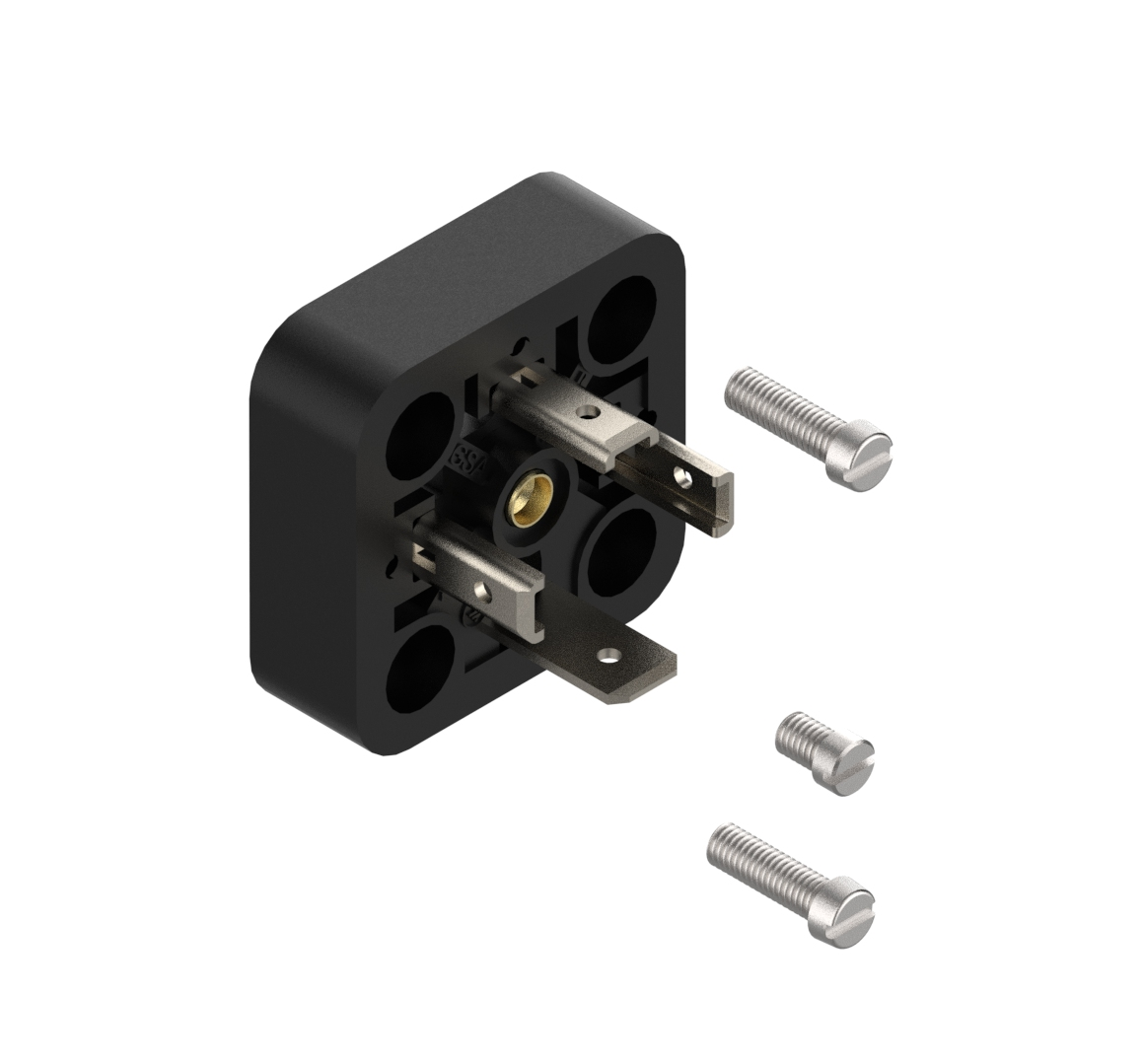

GSA - Male Receptacle Surface Mount, Form A, Contacts: 3+PE, solder type longitudinal slots, 400 V | 16 A; cURus 1977
175301-803-A (DIN 43650-A): Male Receptacle Surface Mount, Form A, Contacts: 3+PE, solder type longitudinal slots (PE screw type), 400 V | 16 A; cURus 1977
-
Availability:
Global
-
Global inventory:
Available
Specifications
Face View
|
Product Family |
Valve Connectors |
|---|---|
|
Product Sub Family |
GSA |
|
Connector Type |
Receptacle |
|
Connector Sub Type |
Rectangular receptacle with longitudinal slots and oblong holes for optional front soldering |
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Number of Pins |
3+PE |
|
Coding |
A |
|
Shielding |
Unshielded |
|
Attachment Type |
2 screws M 3 x 10 |
|
Rated Voltage (UL) |
300 V |
|
Rated Voltage (CSA) |
250 V |
|
Rated Impulse Voltage |
4.0 kV |
|
Operating Voltage |
400 V AC/DC |
|
Rated Current* |
16 A |
|
Rated Current (UL)* |
15 A |
|
Rated Current (CSA)* |
10 A |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 50 |
|
Type of Connection |
Solder / PE Screw |
|
Conductor Cross Section |
0.08 - 1.5 mm² |
|
Ambient Temperature (Operation)* |
-40 °C - +125 °C |
|
Operating Temperature (UL) |
max. + 90 °C |
|
Protection Degree / IP Rating** |
IP65 |
|
Design Standard |
DIN EN 175301-803-A, ISO 4400 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Clearance / Creepage Distance |
DIN EN 60664-1 (2008/01); VDE 0110-1 |
|
Overvoltage Category |
III acc. to DIN EN 60664-1 (VDE 0110-1) |
Materials
|
Contact Base Material |
CuZn |
|---|---|
|
Contact Plating |
Cu/Sn |
|
Contact Bearer Material |
PA GF |
|
Contact Bearer Color |
black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Housing Color |
black |
Circuitry
|
Fastening Torque (Contact Screw) |
(50-60) Ncm |
|---|---|
|
Fastening torque (mounting screw) |
(50-60) Ncm |
|
Mounting |
M3 (2x) |
|
Accessories to Order Separately |
(NBR) flat gasket GSA 200-4, Part Number. 730843002; (EPDM) flat gasket GSA 200-7,Part Number. 730268003 |
Approvals
|
UL-File |
E95522 |
|---|---|
|
UL |
UL 1977; UR |
|
VDE |
yes |
|
CSA |
yes |
|
SEV |
yes |
Safety & Environmental Compliance
|
RoHS Compliant |
yes |
|---|
Notes
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
*IP Rating test performed by Belden with Belden Connectors only |
|
Note |
Do not connect or disconnect under load. |
Information
|
Note Derating |
Notice derating |
|---|---|
|
Protection Degree / IP Rating Note |
*IP Rating test performed by Belden with Belden Connectors only |
|
Note |
Do not connect or disconnect under load. |
Part Numbers
| Item # | Item Description | Gasket | Packaging |
|---|---|---|---|
| 932597100 | GSA 3000 | Sold Seperately | S - Bulk Packaging, 200 pieces per carton, unassembled |
