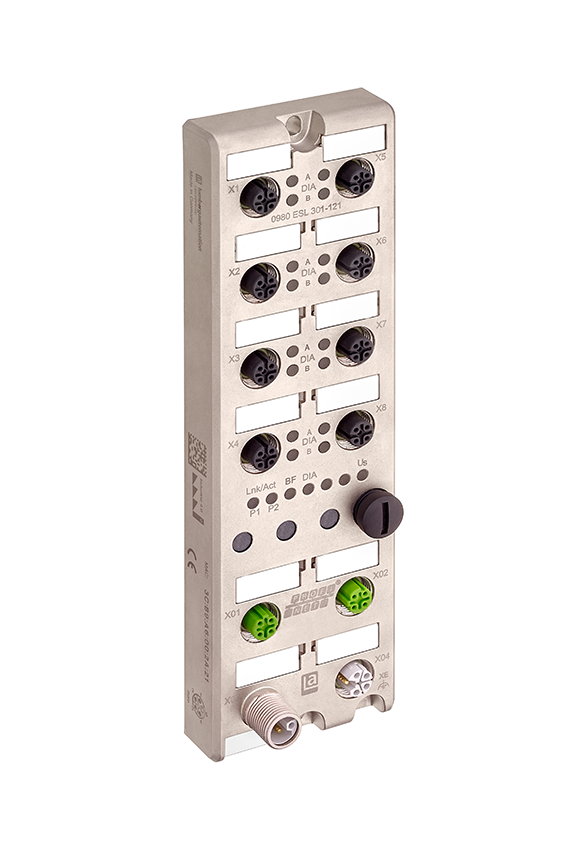

LioN-P, PROFINET IO-Link Master, 4DI 4DO 8IOL (8x M12), M12 L-coded Power Supply, Metal, 60 mm, EEC
|
Product Family |
I/O Systems: Active - Standalone |
|---|---|
|
Product Sub Family |
LioN-P |
|
Item Description |
0980 ESL 309-121-EEC |
|
Device Type |
IO-Link Master |
|
Protocol |
PROFINET |
|
I/O Function |
4DI 4DO 8IOL |
|
Bus Connection |
M12, 4-poles, D-coded |
|
Power Connection (System Supply) |
M12 Power, 5-poles, L-coded |
|
I/O Connection |
M12, 5-poles, A-coded |
|
I/O Type |
Digital Input/ Digital Output/IO-Link |
|
Housing Material |
Metal, Zinc Die-cast |
|---|---|
|
Housing Plating |
Nickel, matt |
|
Housing Color |
Grey Metallic |
|
Protection Degree / IP Rating** |
IP65, IP67, IP69K |
|
Potted |
Yes |
|
Dimensions (W x H x D) |
60 mm x 31 mm x 200 mm |
|
Weight |
500 g |
|
Ambient Temperature (Operation)* |
-40 °C to 70 °C |
|
Ambient Temperature (Storage/Transport) |
-40 °C to 85 °C |
|
Permissible Humidity (Operation) |
5 % ... 95 % (For UL applications max. 80 %) |
|
Permissible Humidity (Storage/Transport) |
5 % ... 95 % (For UL applications max. 80 %) |
|
Air Pressure (Operation) |
80 kPa … 106 kPa (up to 2000 m above sea level) |
|
Air Pressure (Storage/Transport) |
80 kPa … 106 kPa (up to 2000 m above sea level) |
|
Flammabilty Class |
UL 94 (IEC 61010) |
|
Protection Class |
III, IEC 61140, EN 61140, VDE 0140-1 |
|
Pollution Degree |
3 acc. to EN 60664-1, VDE 0110-1 |
|
Vibration Resistance |
15 g / 5 -500 Hz |
|
Shock Resistance |
50 g / 11ms |
|
Mean Time To Failure (MTTF) |
582 years. acc. to Telcordia SR-332 (2011) 20°C |
|
Contact Base Material |
M12, D-coded, CuSn, Gold-plated | M12 Power, L-coded, CuNi, Gold-plated |
|
Contact Bearer Material |
PA |
|
O-Ring Material |
FKM |
|
Mounting |
2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts. |
|
Fastening Torque (Fixing Screw) |
M4: 1 Nm |
|
Fastening Torque (Ground Connection (FE)) |
M4: 1 Nm |
|
Fastening Torque (Bus Connection) |
M12: 0.5 Nm |
|
Fastening Torque (Power Connection) |
M12: 0.5 Nm |
|
Fastening Torque (I/O Connection) |
M12: 0.5 Nm |
|
Included in Delivery |
Attachable Labels: 15x, Sealing Caps: 5x M12 |
|
Protocol |
PROFINET |
|---|---|
|
Connection |
M12 LAN, 4-poles, D-coded |
|
Number of Connections |
2 |
|
Specification |
V2.3X |
|
Conformance Class |
C |
|
Performance Class |
RT (switch supports IRT) |
|
Netload Class |
II |
|
Transmission Rate |
Fast Ethernet (10/100 Mbit/s), Full Duplex |
|
Transmission Method |
100 BASE-TX, with auto negotiation and auto crossing |
|
Cycle Time / Update Rate |
min. 1 ms |
|
Addressing |
DCP |
|
Fast Startup (FSU) |
Supported, ≤ 2000 ms |
|
Media Redundancy Protocol (MRP) |
Supported, MRP client |
|
Shared Device |
Supported |
|
Topology Detection |
LLDP, SNMP V1 |
|
Easy Device Replacement |
Supported, based on LLDP |
|
Supported Network Protocols (Other) |
ARP, HTTP, Ping, SNMP V1, TCP/IP |
|
Connection Module Supply Voltage |
M12 Power, 5-poles, L-coded |
|---|---|
|
Number of Connections |
2 |
|
Current Carrying Capacity of Connector |
max. 16 A |
|
Module Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Module Supply Voltage (Range) |
18 V DC to 30 V DC |
|
Current Consumption (typ.) |
180 mA (at 24 V DC) |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (System Supply) |
LED green |
|
Diagnostic Indicator |
LED red |
|
Connection Sensor Supply Voltage |
M12 Power, 5-poles, L-coded |
|
Current Carrying Capacity of Connector |
max. 16 A |
|
Sensor Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Sensor Supply Voltage (Range) |
18 V DC to 30 V DC |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (Sensor Supply) |
LED green |
|
Diagnostic Indicator |
LED red |
|
Connection Actuator Supply Voltage |
via Module Supply Connection |
|
Current Carrying Capacity of Connector |
max. 16 A |
|
Actuator Supply Voltage (Nominal) |
24 V DC (SELV/PELV) |
|
Actuator Supply Voltage (Range) |
18 V DC to 30 V DC |
|
Reverse Polarity Protection |
Yes |
|
Status Indicator (Actuator Supply) |
LED green |
|
Diagnostic Indicator |
LED red |
|
Number of IO-Link Master Channels |
max. 8, configurable |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
IO-Link Class A Ports |
4x, X1 to X4 |
|
IO-Link Class B Ports |
4x, X5 to X8 |
|
IO-Link Specification |
V1.1.2 |
|
Parameter Storage |
Supported |
|
Supported COM Modes |
4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3) |
|
Cycle Time / Update Rate |
min. 8 ms for all channels at 32 Byte IN / OUT |
|
Nominal Current 1L+ (Pin 1) |
max. 500 mA (via US) |
|
Nominal Voltage |
24 V DC via US (system power supply) |
|
Nominal Current 2L+/Uaux (Pin 2, B Ports) |
max. 2 A per port (via Uaux) |
|
Nominal Current C/Q (Pin 4) |
max. 500 mA (via US) |
|
Perm. Conductor Length to Device |
≤ 20 m |
|
Status Indicator (IOL) |
LED green per channel |
|
Diagnostic Indicator |
LED red per port |
|
Number of Digital Input Channels |
max. 12, configurable |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
Number of Ports |
8x, X1 to X8 |
|
Channel Type |
Type 1 acc. to IEC 61131-2 |
|
Input Wiring |
2-, 3-wire |
|
Nominal Voltage |
24 V DC via US (module power supply) |
|
Nominal Current |
typ. 3 mA |
|
Sensor Current Supply |
max. 500 mA per port via 1L+ |
|
Sensor Type |
PNP |
|
Input Voltage Range "0" signal |
-0,3V DC ... 5 V DC |
|
Input Voltage Range "1" signal |
15 V DC ... 30 V DC |
|
Protective Circuit |
Electronicaly: Overload protection, short-circuit protection |
|
Status Indicator (Inputs) |
LED white or yellow per channel |
|
Diagnostic Indicator |
LED red per port |
|
Number of Digital Output Channels |
max. 12, configurable |
|---|---|
|
Connection |
M12, 5-poles, A-coded |
|
Number of Ports |
8x, X1 to X8 |
|
Channel Type |
p-switching |
|
Output Wiring |
2-wire |
|
Nominal Voltage |
Pin 4: 24 V DC via US (system power supply) / Pin 2: 24 V DC via Uaux (auxiliary power supply) |
|
Output Current per Channel |
max. 2 A (Pin 2) / max. 0.5 A (Pin 4) |
|
Output Current per Module |
max. 9 A |
|
Galvanically Isolated |
Pin 4: No / Pin 2: Yes |
|
Protective Circuit |
Electronicaly: Overload protection, short-circuit protection |
|
Overload Behavior |
Auto off and on switching / Manual restart |
|
Status Indicator (Outputs) |
LED white or yellow per channel |
|
Diagnostic Idicator |
LED red per port |
|
US (System Supply Voltage) / FE |
500 V DC |
|---|---|
|
Uaux / FE |
500 V DC |
|
Bus connection / FE |
2000 V DC |
|
EMC Directive |
2014/30/EU |
|---|---|
|
EN 61000-4-2 Electrostatic Discharge (ESD) |
Criterion B; 4 kV contact discharge, 8 kV air discharge |
|
EN 61000-4-3 Electromagnetic Field |
Criterion A; Field intensity: 10 V/m |
|
EN 61000-4-4 Fast Transients (Burst) |
Criterion B, 2 kV |
|
EN 61000-4-5 Surge Voltage |
Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m |
|
EN 61000-4-6 Conducted immunity |
Criterion A; Test voltage 10 V |
|
EN 55022 Radio Interference Properties |
Class A |
|
CE |
Yes |
|---|---|
|
RoHS Compliant |
Yes |
|
China RoHS-Compliant |
Yes |
|
UL |
cULus Listed, UL 61010-1 |
|---|---|
|
UL-File |
E230848 |
|
CSA |
Yes, via UL |
|
PNO |
Yes |
|
IO-Link |
Yes |
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
System Power Supply Connection Note |
*do not connect / disconnect under voltage! |
|
Update and Revision |
Revision Number: 0.61 Revision Date: 07-03-2024 |
| Item # | Item Description |
|---|---|
| 934878050 | 0980 ESL 309-121-EEC |
