Safety I/O Modules - 0980 SSL 3031-121-007D-101

Product Family	I/O Systems: Active - Standalone
Product Sub Family	LioN-Safety

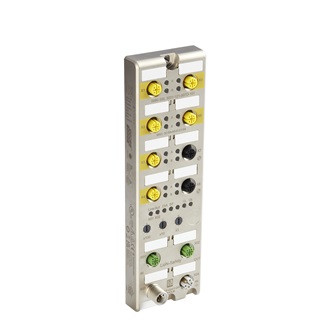

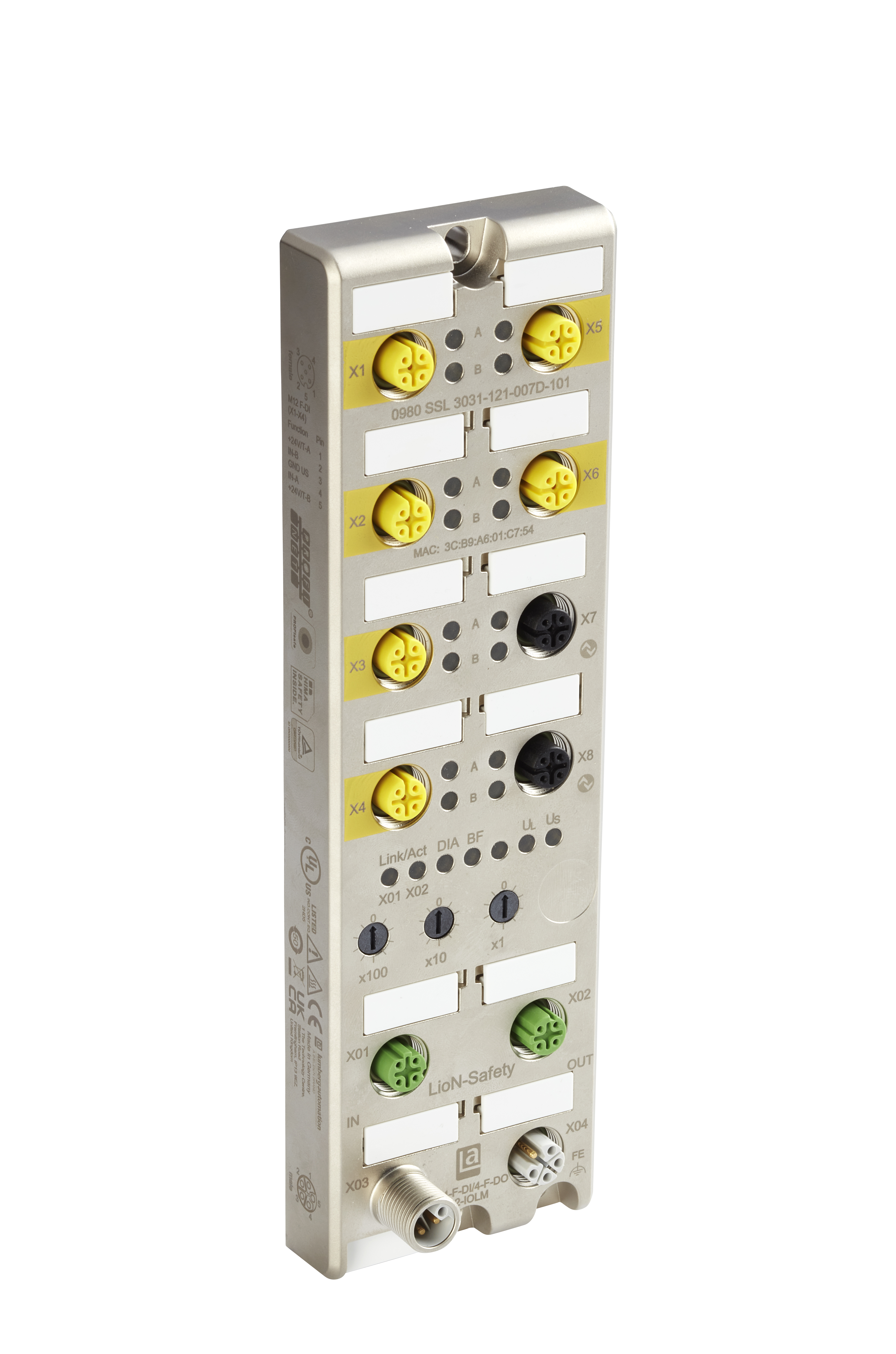

Item Description	0980 SSL 3031-121-007D-101
Device Type	FS I/O Device
Protocol	PROFISAFE
I/O Function	8/4 FS DI, 4 FS DO, 2 IOLM
Bus Connection	M12 LAN, 4-poles, D-coded
Power Connection (System Supply)	M12 Power, 5-poles, L-coded
I/O Connection	M12, 5-poles, A-coded
I/O Type	Functional Safety Digital In-/Output

Housing Material	Metal, Zinc Die-cast
Housing Plating	Nickel, matt
Housing Color	Grey Metallic
Protection Degree / IP Rating**	IP65, IP67, IP69K
Potted	Yes
Dimensions (W x H x D)	60 mm x 31 mm x 200 mm
Weight	approx. 500 g
Ambient Temperature (Operation)*	-40 °C to 70 °C ( 2000m ASL 63°C)
Ambient Temperature (Storage/Transport)	-40 °C to 85 °C
Permissible Humidity (Operation)	5 % ... 98 % (For UL applications max. 80 %)
Permissible Humidity (Storage/Transport)	5 % ... 98 % (For UL applications max. 80 %)
Air Pressure (Operation)	70 kPa … 106 kPa (up to 3000 m above sea level)
Air Pressure (Storage/Transport)	70 kPa … 106 kPa (up to 3000 m above sea level)
Flammabilty Class	UL 94 (IEC 61010)
Protection Class	III, IEC 61140, EN 61140, VDE 0140-1
Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Vibration Resistance	15 g / 5 -500 Hz
Shock Resistance	50 g / 11ms
Mean Time To Failure (MTTF)	84 years. acc. to EN ISO 13849-1
Contact Base Material	M12, D-coded, CuSn, Gold-plated \| M12 Power, L-coded, CuNi, Gold-plated
Contact Bearer Material	PA
O-Ring Material	FKM
Mounting	2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts.
Fastening Torque (Fixing Screw)	M4: 1 Nm
Fastening Torque (Ground Connection (FE))	M4: 1 Nm
Fastening Torque (Bus Connection)	M12: 0.5 Nm
Fastening Torque (Power Connection)	M12: 0.5 Nm
Fastening Torque (I/O Connection)	M12: 0.5 Nm
Included in Delivery	Attachable Labels: 15x, Sealing Caps: 5x M12

SIL/ SIL CL (IEC 62061/ IEC 61508)	up to 3
Performance Level IL (ISO 13849)	up to e
Category Cat. (ISO 13849)	up to 4
Probability of failure per hour (PFH)	1,43 E-9
Mission Time	20 years
Safety Reaction Time	42ms
Safety Digital Inputs	8/4
Safety Digital Outputs	4

Protocol	PROFINET
Safety Communication	PROFIsafe (V2.6.1)
Connection	M12 LAN, 4-poles, D-coded
Number of Connections	2
Specification	V2.44
Conformance Class	C (CC-C)
Performance Class	RT (switch supports IRT)
Netload Class	III
Transmission Rate	Fast Ethernet (10/100 Mbit/s), Full Duplex
Transmission Method	100 BASE-TX, with auto negotiation and auto crossing
Cycle Time / Update Rate	min. 1 ms
Addressing	DCP
Media Redundancy Protocol (MRP)	Supported, MRP client
Shared Device	Supported
Shared Input	not supported
Topology Detection	LLDP, SNMP V3
Easy Device Replacement	Supported, based on LLDP
Supported Network Protocols (Other)	ARP, HTTP, Ping, SNMP V1, TCP/IP

OPC UA	Cyclic data read/write, Diagnosis data, Event data
MQTT	Cyclic data read/write, Diagnosis data, Event data
REST API	Cyclic data read/write, Diagnosis data, Event data
CoAP	Cyclic data read/write, Diagnosis data, Event data

Connection Module Supply Voltage	M12 Power, 5-poles, L-coded
Number of Connections	2
Current Carrying Capacity of Connector	max. 16 A
Module Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Module Supply Voltage (Range)	18 V DC to 30 V DC
Current Consumption (typ.)	typ. 180mA (at 24 V DC)
Reverse Polarity Protection	Yes
Status Indicator (System Supply)	LED green
Diagnostic Indicator	LED red
Connection Sensor Supply Voltage	M12 Power, 5-poles, L-coded
Current Carrying Capacity of Connector	max. 16 A
Sensor Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Sensor Supply Voltage (Range)	18 V DC to 30 V DC
Reverse Polarity Protection	Yes
Status Indicator (Sensor Supply)	LED green
Diagnostic Indicator	LED red
Current Carrying Capacity of Connector	max. 16 A
Actuator Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Actuator Supply Voltage (Range)	18 V DC to 30 V DC
Reverse Polarity Protection	Yes
Status Indicator (Actuator Supply)	LED green
Diagnostic Indicator	LED red

Number of IO-Link Master Channels	max. 2, configurable
Connection	M12, 5-poles, A-coded
IO-Link Class A Ports	2x, X7 and X8
IO-Link Specification	V1.1.3
Parameter Storage	Supported
Supported COM Modes	4.8 kBaud (COM 1), 38.4 kBaud (COM 2), 230.4 kBaud (COM 3)
Cycle Time / Update Rate	min. 1 ms for all channels at 32 Byte IN / OUT
Nominal Voltage	24 V DC via US (system power supply)
Nominal Current C/Q (Pin 4)	500mA
Nominal Current 1L+ (Pin 1)	4A
Perm. Conductor Length to Device	≤ 20 m
Status Indicator (IOL)	LED green per channel
Diagnostic Indicator	LED red per port

Number of Digital Input Channels	up to 8
Connection	M12, 5-poles, A-coded
Number of Ports	4x, X1 to X4
Channel Type	Type 3 acc. to IEC 61131-2
Input Wiring	2-, 3-, 4-wire
Nominal Voltage	24 V DC via US (module power supply)
Nominal Current	typ. 3 mA
Sensor Current Supply	max. 1500 mA per port
Sensor Type	PNP
Input Voltage Range "0" signal	-3 V DC …+5 V DC
Input Voltage Range "1" signal	11 V DC … 30 V DC
Input Filter Time	configurable
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Diagnostic Indicator	LED white or yellow per channel

Number of Digital Output Channels	4
Connection	M12, 5-poles, A-coded
Number of Ports	2x, X5 and X6
Channel Type	p-switching
Output Wiring	2-wire
Nominal Voltage	24 V DC via UL
Output Current per Channel	max. 2 A
Output Current per Module	max. 8 A
Galvanically Isolated	Yes
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Overload Behavior	Auto off and on switching / Manual restart
Status Indicator (Outputs)	LED white or yellow per channel
Diagnostic Idicator	LED red per channel

US (System Supply Voltage) / FE	32V DC (clamp voltage)
US / UL (Actuator Supply Voltage)	500 V DC
UL / FE	32V DC (clamp voltage)
Bus connection / FE	2000 V DC

EMC Directive	2014/30/EU
EN 61000-4-2 Electrostatic Discharge (ESD)	Criterion B; 4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 Electromagnetic Field	Criterion A; Field intensity: 10 V/m
EN 61000-4-4 Fast Transients (Burst)	Criterion B/DS, 2 kV
EN 61000-4-5 Surge Voltage	Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m
EN 61000-4-6 Conducted immunity	Criterion A; Test voltage 10 V
EN 55022 Radio Interference Properties	Class A
EN 55032 Radio Interference Properties	Class A

Protection Degree / IP Rating Note	*only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
System Power Supply Connection Note	*do not connect / disconnect under voltage!

LioN-Safety 8/4-F-DI 4-F-DO 2-IOLM M12 – PROFINET / PROFIsafe
