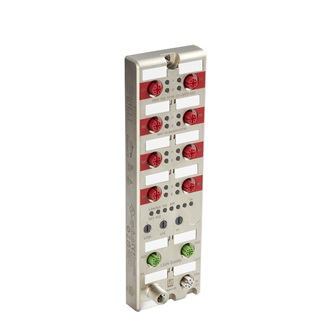

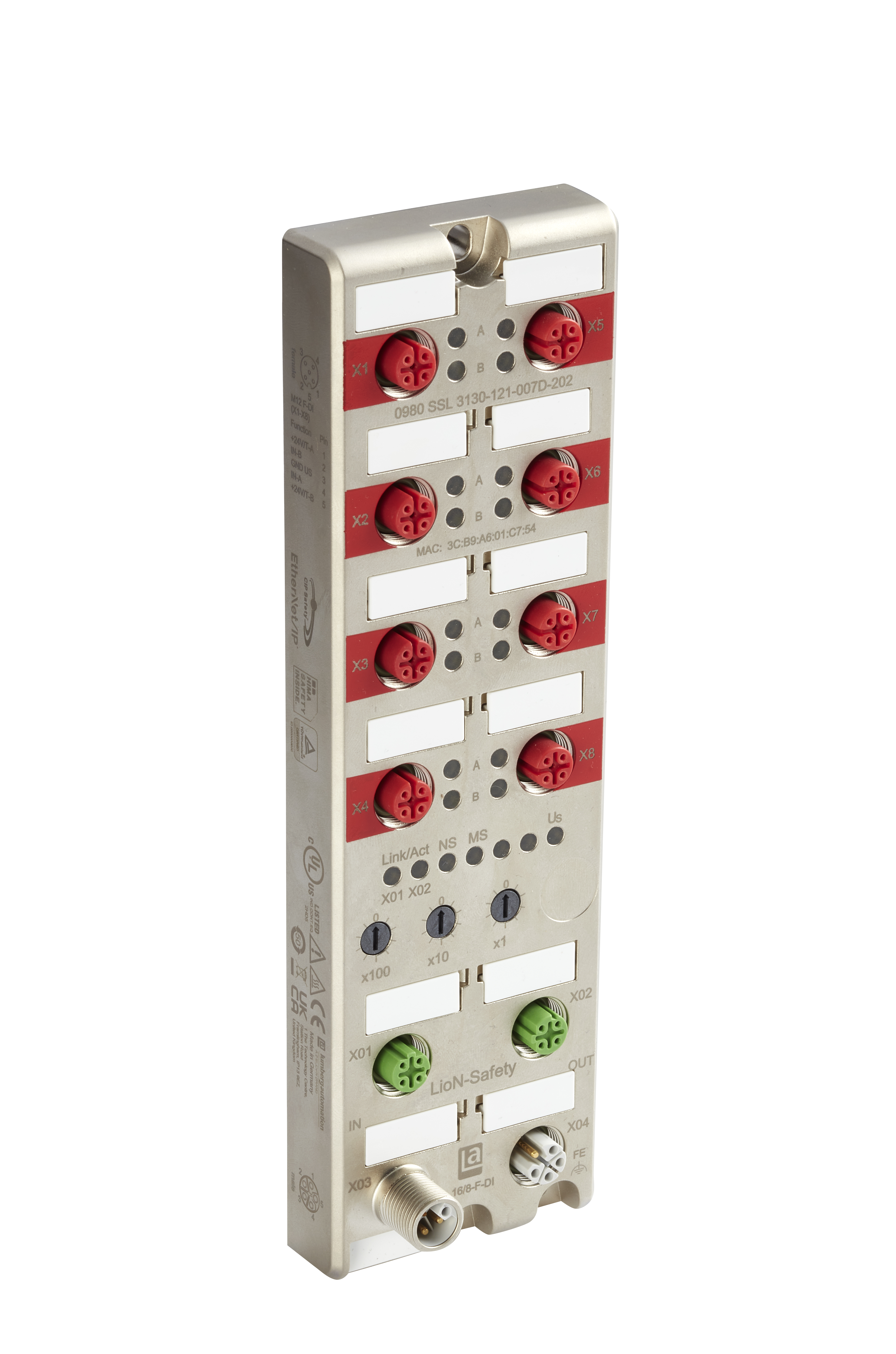

Safety I/O Modules - 0980 SSL 3130-121-007D-202

Product Family	I/O Systems: Active - Standalone
Product Sub Family	LioN-Safety
Item Description	0980 SSL 3130-121-007D-202
Device Type	FS I/O Device
Protocol	CIP Safety
I/O Function	16/8 FS DI
Bus Connection	M12 LAN, 4-poles, D-coded
Power Connection (System Supply)	M12 Power, 5-poles, L-coded
I/O Connection	M12, 5-poles, A-coded
I/O Type	Functional Safety Digital Input

Housing Material	Metal, Zinc Die-cast
Housing Plating	Nickel, matt
Housing Color	Grey Metallic
Protection Degree / IP Rating**	IP65, IP67, IP69K
Potted	Yes
Dimensions (W x H x D)	60 mm x 31 mm x 200 mm
Weight	approx. 500 g
Ambient Temperature (Operation)*	-40 °C to 70 °C ( 2000m ASL 63°C)
Ambient Temperature (Storage/Transport)	-40 °C to 85 °C
Permissible Humidity (Operation)	5 % ... 98 % (For UL applications max. 80 %)
Permissible Humidity (Storage/Transport)	5 % ... 98 % (For UL applications max. 80 %)
Air Pressure (Operation)	70 kPa … 106 kPa (up to 3000 m above sea level)
Air Pressure (Storage/Transport)	70 kPa … 106 kPa (up to 3000 m above sea level)
Flammabilty Class	UL 94 (IEC 61010)
Protection Class	III, IEC 61140, EN 61140, VDE 0140-1
Pollution Degree	3 acc. to EN 60664-1, VDE 0110-1
Vibration Resistance	15 g / 5 -500 Hz
Shock Resistance	50 g / 11ms
Mean Time To Failure (MTTF)	107 years. acc. to EN ISO 13849-1
Contact Base Material	M12, D-coded, CuSn, Gold-plated \| M12 Power, L-coded, CuNi, Gold-plated
Contact Bearer Material	PA
O-Ring Material	FKM
Mounting	2 hole screw mounting. Use standard M4 x 25 / 30 screws with toothed lock washer (as per DIN 125) and self-locking nuts.
Fastening Torque (Fixing Screw)	M4: 1 Nm
Fastening Torque (Ground Connection (FE))	M4: 1 Nm
Fastening Torque (Bus Connection)	M12: 0.5 Nm
Fastening Torque (Power Connection)	M12: 0.5 Nm
Fastening Torque (I/O Connection)	M12: 0.5 Nm
Included in Delivery	Attachable Labels: 15x, Sealing Caps: 5x M12

SIL/ SIL CL (IEC 62061/ IEC 61508)	up to 3
Performance Level IL (ISO 13849)	up to e
Category Cat. (ISO 13849)	up to 4
Probability of failure per hour (PFH)	1,32 E-9
Mission Time	20 years
Safety Reaction Time	42ms
Safety Digital Inputs	16/8
Safety Digital Outputs	-

Protocol (EtherNet/IP)	EtherNet/IP
Safety Communication	CIP Safety
Connection	M12 LAN, 4-poles, D-coded
Number of Connections	2
Specification	CIP V3.2x, EIP Adaption of CIP V1.2x
Transmission Rate	Fast Ethernet (10/100 Mbit/s), Full Duplex
Transmission Method	100 BASE-TX, with auto negotiation and auto crossing
Cycle Time / Requested Packet Interval (RPI)	min. 1 ms
Addressing	BootP, DHCP, Rotary Address Switches
Address Switches Range	0 to 255 dec
Connection Types	Exclusive Owner, Input Only, Listen Only
CIP Msg Connection Limit	6
CIP I/O Connection Limit	3
Device Level Ring (DLR)	Supported, beacon based
Quick Connect (QC)	Supported, ≤ 500 ms
Supported Network Protocols (Other)	ACD, ARP, BootP, DHCP, HTTP, IGMP, Ping, TCP/IP

OPC UA	Cyclic data read/write, Diagnosis data, Event data
MQTT	Cyclic data read/write, Diagnosis data, Event data
REST API	Cyclic data read/write, Diagnosis data, Event data
CoAP	Cyclic data read/write, Diagnosis data, Event data

Connection Module Supply Voltage	M12 Power, 5-poles, L-coded
Number of Connections	2
Current Carrying Capacity of Connector	max. 16 A
Module Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Module Supply Voltage (Range)	18 V DC to 30 V DC
Current Consumption (typ.)	typ. 180mA (at 24 V DC)
Reverse Polarity Protection	Yes
Status Indicator (System Supply)	LED green
Diagnostic Indicator	LED red
Connection Sensor Supply Voltage	M12 Power, 5-poles, L-coded
Current Carrying Capacity of Connector	max. 16 A
Sensor Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Sensor Supply Voltage (Range)	18 V DC to 30 V DC
Reverse Polarity Protection	Yes
Status Indicator (Sensor Supply)	LED green
Diagnostic Indicator	LED red
Current Carrying Capacity of Connector	max. 16 A
Actuator Supply Voltage (Nominal)	24 V DC (SELV/PELV)
Actuator Supply Voltage (Range)	18 V DC to 30 V DC
Reverse Polarity Protection	Yes
Status Indicator (Actuator Supply)	LED green
Diagnostic Indicator	LED red

Number of Digital Input Channels	up to 16
Connection	M12, 5-poles, A-coded
Number of Ports	8x, X1 to X8
Channel Type	Type 3 acc. to IEC 61131-2
Input Wiring	2-, 3-, 4-wire
Nominal Voltage	24 V DC via US (module power supply)
Nominal Current	typ. 3 mA
Sensor Current Supply	max. 1500 mA per port
Sensor Type	PNP
Input Voltage Range "0" signal	-3 V DC …+5 V DC
Input Voltage Range "1" signal	11 V DC … 30 V DC
Input Filter Time	configurable
Protective Circuit	Electronicaly: Overload protection, short-circuit protection
Diagnostic Indicator	LED white or yellow per channel

Status Indicator (Outputs)	LED white or yellow per channel
Diagnostic Idicator	LED red per channel

US (System Supply Voltage) / FE	32V DC (clamp voltage)
US / UL (Actuator Supply Voltage)	500 V DC
UL / FE	32V DC (clamp voltage)
Bus connection / FE	2000 V DC

EMC Directive	2014/30/EU
EN 61000-4-2 Electrostatic Discharge (ESD)	Criterion B; 4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 Electromagnetic Field	Criterion A; Field intensity: 10 V/m
EN 61000-4-4 Fast Transients (Burst)	Criterion B, 2 kV
EN 61000-4-5 Surge Voltage	Criterion B; DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical); For I/O ports with cables ≤ 30m
EN 61000-4-6 Conducted immunity	Criterion A; Test voltage 10 V
EN 55022 Radio Interference Properties	Class A
EN 55032 Radio Interference Properties	Class A

Protection Degree / IP Rating Note	*only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
System Power Supply Connection Note	*do not connect / disconnect under voltage!

LioN-Safety 16/8-F-DI M12 – Ethernet/IP / CIP Safety
