Product Number: FCSX06SDMF
FX ECX CASS OS2 06P MPO12(F) SC_DX TYPE-A BL_ADP

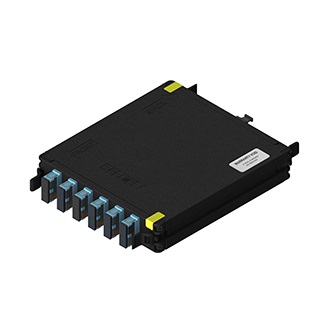

FX ECX CASSETTE, OS2, 06 PORTS, MPO-12 (FEMALE), SC DUPLEX, TYPE-A, BLUE ADAPTERS
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
|---|
Construction
|
Weight |
0.500 lbs |
|---|---|
|
Height |
1.290 in. |
|
Width |
6.340 in |
|
Depth |
8.685 in |
Physical Specifications
|
Max Capacity |
12 Fibers |
|---|
Mechanical Characteristics
Mechanical Tests
| Description |
|---|
Temperature Range
|
Operating Temperature Range |
-10°C to +60°C |
|---|---|
|
Storage Temperature Range |
-10°C to +75°C |
Product Material
Materials
| Description | Material | Color | Type |
|---|---|---|---|
| Front Connector/Adapter | Plastic - UL94V-0 | Blue | SC Duplex |
| Rear Connector/Adapter | Plastic - UL94V-0 | Green | MPO Female |
| Cassette Assembly | PC/ABS | Black |
Standards
|
MII Order #39 (China RoHS) |
EUP 50 |
|---|
Related Part Numbers
|
Related Parts |
FX ECX Patch Panels, Patch Cords, MPO Trunks |
|---|
Product Notes
|
Packaging |
Individually packaged in a plastic shell, Shipped in cardboard box |
|---|---|
|
Notes |
For more information, please refer to our website at http://www.belden.com |
History
|
Update and Revision |
Revision Number: 0.9 Revision Date: 05-31-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.9 Revision Date: 05-31-2024 |
|---|
