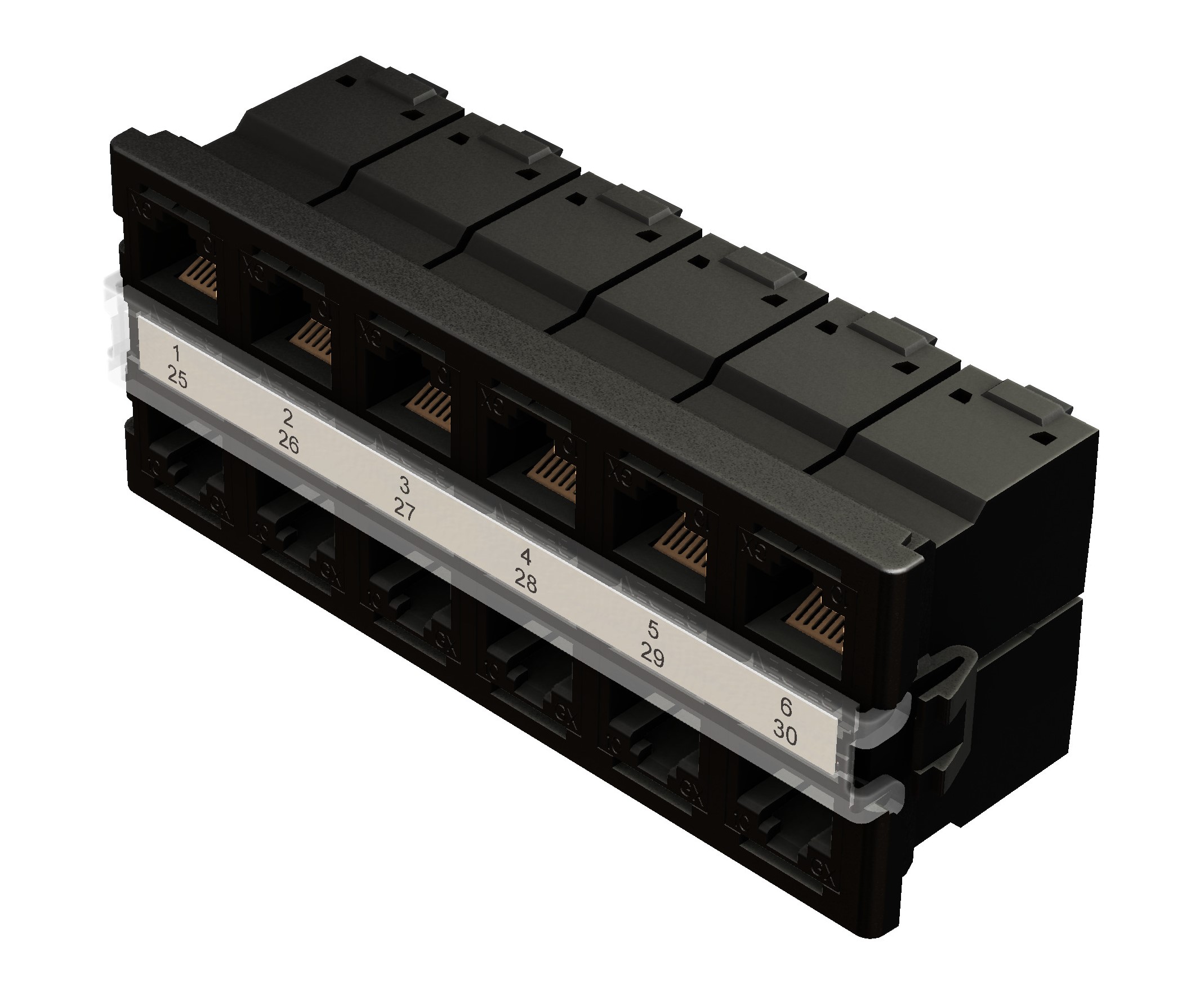

RVAPPTM12JBK

REVConnect HD Patch Panel Termination Module, Cat 6A, 12 Port

...
REVConnect Category 6A Patch Panel Termination Module, 12 Port, Black
Get Product Alerts

Specifications
Product Overview

Suitable Applications

Ethernet 10GBASE-T, Wi-Fi 6, Wi-Fi 5, In-Building Wireless, In-Building Small Cells, Mobile RAN, Data Center EoR and MoR, PoE++, PoE+, PoE

Physical Characteristics (Overall)

Height

1.73

Width

4.33

Depth

1.52

Port Count

12 Port

Packaging

Individually packaged in a cardboard box.

Weight

0.353

Connectors
Materials
Description Material Type
Front Connection Copper Clad Flexible PCB, 50µin Gold-plated Contacts over Nickel RJ45
Rear Connection Copper Alloy, Gold-plated Contacts over Nickel REVConnect
Connector Body PBT Glass Reinforced UL94V-0
Construction and Dimensions

Max Capacity

12 Connectors (Preloaded)

Electrical Characteristics

Dielectric Strength

1,000 V RMS @ 60 Hz for 1 minute

Current Rating

1.300 A

Insulation Resistance

500 M-Ohm Minimum

Termination Resistance

2.5 mOhm

Temperature Range

Installation Temperature Range

-10°C to +60°C

Storage Temperature Range

-40°C to +70°C

Operating Temperature Range

-10°C to +60°C

Mechanical Characteristics

Footprint/Type

REVConnect

Tool Compatibility

REVConnect Termination Tool (RVUTT01)

Plug /Jack Compatibility

RJ45

Termination Front Connection

Mated Connection

Termination Front Connection Durability

750 Cycles

Termination Rear Connection

Mated Connection

Termination Rear Connection Durability

20 Cycles

Cable/Connector Retention

15 lbs

Connector/Hardware Retention

20 lbs

Plug/Connector Retention

11.250 lbs

Standards

UL Rating

UL94V-0

Data Category

Category 6A

TIA/EIA Compliance

Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2

IEEE Compliance

Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE 802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)

Other Standards

FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space

Indoor

EU Directive 2011/65/EU (RoHS 2)

Yes

MII Order #39 (China RoHS)

EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing

c(UL)us Listed

Related Part Numbers

Related Parts

REVConnect Termination Tool, Cat 6A Modular Cords, REVConnect Empty High Density Patch Panels

Product Notes

Included Parts

12 10GX REVConnect High Density Jacks, Black, Preloaded; 12 REVConnect Cable Managers and Caps; 1 Clear Window; 1 Frame; 1 Installation Guide

Notes

For proper installation, refer to Installation Guide PX107031.

History

Update and Revision

Revision Number: 0.64 Revision Date: 05-31-2024

Part Numbers
Item # Color
RVAPPTM12JBK Black
